T11 10ft ISO Tank Container for Water or Fuel 316L Stainless Steel UN Portable 10CBM 10000L SPA-H Frame Material
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $16,800.00/pieces 1-1 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Tank Container, T11 | Length (feet): | 10ft |
|---|---|---|---|
| Capacity: | 10000L | External Dimensions(l X W X H)(mm): | 2991 X 2438 X 2591mm |
| Internal Dimensions(l X W X H)(mm): | 10 CBM | Material: | Corten-A |
| Frame Material: | SPA-H,Q345D Or Equivalent | Tank Material: | 316L/SAN50028-7/WNr 1.4402/1.4404 |
| Insulation: | Rockwood | Design Temperature: | -40 To +130 Centigrade |
| Certificate: | BV, LR | Approval: | IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT |
| Design Code:: | ASME VIII Div. 2 | ||
Product Description
Hot Sale Products
Product Description

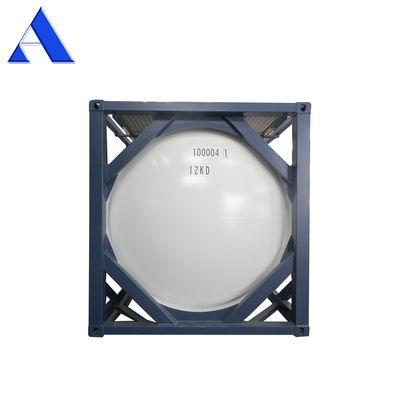

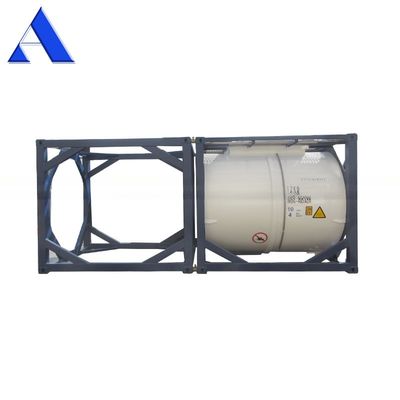

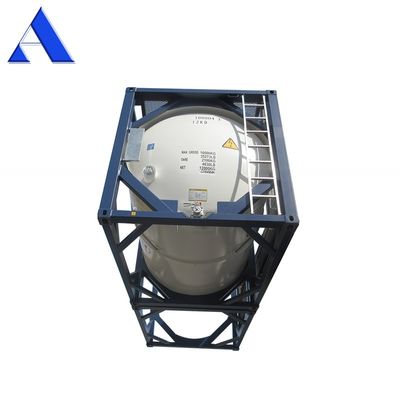

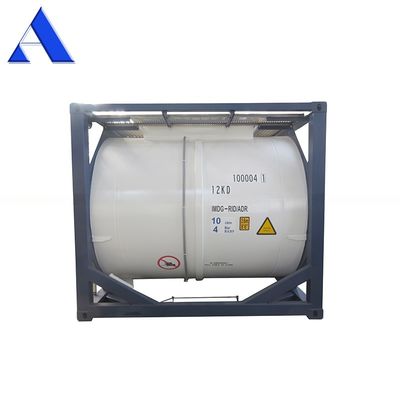

Brand New ASME Standard T11 10ft ISO Tank Container
T4 20ft iso tank container, Full Frame Potable Tank Container, which is widely used to transport kinds of liquid chemical medium.The shell is 316 stainless steel, the frame is made of strong steel Corten A or equal material, which are testing by LR.
Our T11 10ft iso tank container is designed as perASME standard, and meeting IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID L4BN.The Capacity is 10000L.
Product Spefications
Specifications - T11 10 iso tank container | ||||
Frame Dimensions (L x W x H) | 2991 x 2438 x 2591 mm | |||
Nominal Capacity | 10000 litre (±0.75%) | |||
Maximum Gross Mass | 16000 kgs | |||
Tare Mass | 2300 kg (± 3%) | |||
Design Temperature (Frame & Tank) | -40 to +130 °C | |||
Pressure | Working | 4.0 bar | ||
Test | 6.0 bar | |||
Material | Tank (Shell & Ends) | SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%) | ||
Frame | SPA-H or equivalent | |||
Insulation | Shell | Not fitted | ||
Ends | Not fitted | |||
Steam Heating | Not fitted | |||
Manhole | 500mm low profile, 8 point fixing with Super Tanktyt Lid seal. | |||
Safety Relief Assembly | 1 x 2.5” BSP pressure relief valve without flameproof gauze. | |||
Air Inlet A | DN 40 ball valve terminating with 1½" BSP connection and cap. The assembly is situated off centre on a tangential tank pad. | |||
Top Discharge | 1 x 3” weld in pad (drilled with 6 x M12 PCD 168mm) completes with blank flange. A siphon tube guide plate is welded on bottom floor of tank. | |||
Bottom Discharge | 1 x 3” 45° high-lift foot valve with opening handle and 3” clamped butterfly valve terminating with 3” BSP stainless steel spigot and dust cap with retaining chain. | |||
Thermometer | 1 off, Dual scale thermometer, -40° C to 160° C, fitted on rear end to lower right side | |||
Document holder | A clear plastic document holder ø110mm is fitted to the rear right hand side beam. A drain hole is provided at the lowest point. | |||
Calibration | A calibration plate marked in cm/litres is fitted on the spillbox side wall. No calibrated stainless steel grade dipstick and bracket fitted. | |||
Design Code | ASME VIII DIV. 1 | |||
Approval | IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO 1496/3 | |||
Packing & Shipment
New 20ft Tank Container has no any package, it's with LR certified, can be shipped as SOC directly.
For other detailed package, please check as follows:
Our Company
FAQ
1. Are your T11 10ft ISO tank containers brand new? Yes, all the containers we provide are brand new. In fact, we begin manufacturing the containers only after receiving order confirmation. 2. Do your T11 10ft ISO tank containers meet international requirements? Yes, all of our tank containers are approved by BV, LR, or CCS and comply with the following international standards:
ISO 1496/3 UN Transport of Dangerous Goods UIC International Rail Approval TIR International Transport of Goods under Customs Seal CSC International Convention for Safe Containers DOT US Code Federal Regulations CFR49 DOT UK Carriage of Dangerous Goods CTC Canadian Transport Commission (Rail) AAR American Association of Railroads FRA Federal Rail Administration USA BAM G.D.R Domestic Approval ISO/TC11
3. Can you provide drawings for confirmation? Yes, we will provide detailed drawings for your confirmation before production begins, once the order is confirmed. 4. Do you provide OEM services? Yes, we have a highly skilled team that can design and customize the product according to your specific requirements.
