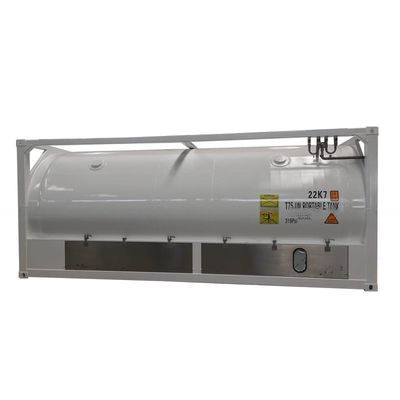

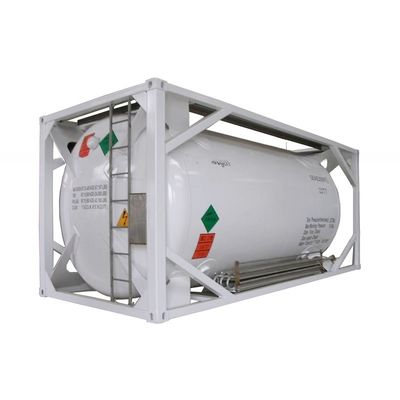

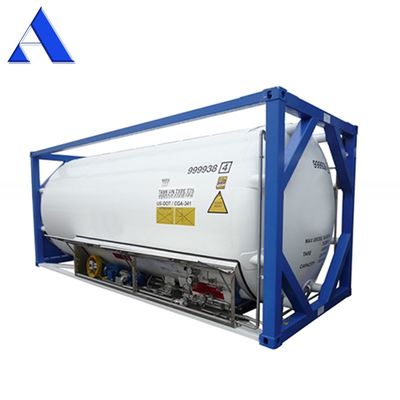

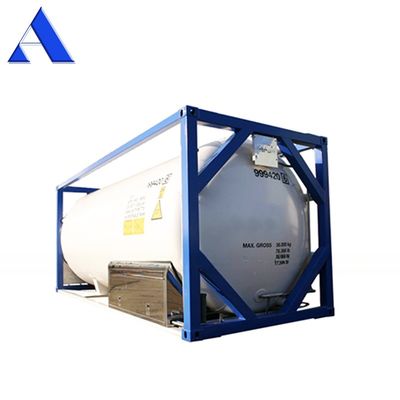

20 Ton Capacity 20ft Long Transport Container ASME Standard UN T75 ISO Cryogenic LNG Tank for Customizable and Transport
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | CSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $50,000.00/pieces 1-1 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Tank Container, UN Portable Tank T75 | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 20.8 Cbm | External Dimensions(l X W X H)(mm): | 6.058 X 2.438 X 2.591M |
| Internal Dimensions(l X W X H)(mm): | 20800L | Frame Material: | Corten Steel |
| Tank Material: | 316L/SAN50028-7/WNr 1.4402/1.4404 | Design Temperature: | -196 Centigrade |
| Approval: | IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT | Certificate: | BV Or GL |
| Pressure(Working/Test): | 22 Mpa | Stacking: | Each Container Is Approved For 9 High Stacking. |
Product Description
Low Cost
Convenient and fast
Safety and Eco-Friendly
20ft ISO LNG Tank Container | ||||
Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |||
Nominal Capacity | 19500 litre (±0.75%) | |||
Maximum Gross Mass | 36000 kgs | |||
Tare Mass | 8950 kg (± 3%) | |||
Design Temperature (Frame & Tank) | -196 °C | |||
Pressure | Working | 22.0 bar | ||
Test | 29.0 bar | |||
Material | Tank (Shell & Ends) | SA-240M / 304 | ||
Frame | Q345D--GB/T1591 | |||
Type of insulation | High Vacuum Multi-layer Insulation | |||
Insulation Material | Aluminium Foil | |||
Design Code | ASME VIII DIV. 1 | |||
Approval | Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT | |||
Q:. Are your T75 ISO LNG tank container is brand new?
Yes, our all tank containers are brand new.
Q: Can you provide the drawing for confirmation?
Sure, we'll provide the drawing after order confirmed before production.
Q: Do you have Small or Large Volume ISO LNG Tank Container?
Sure, we could do Tank Container form 1000L to 60000L.
And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
Q: Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
Q: Does your T75 iso tank container meet with international requirement?
All of our iso tank container will be approval by BV //LR / CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)\
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11
