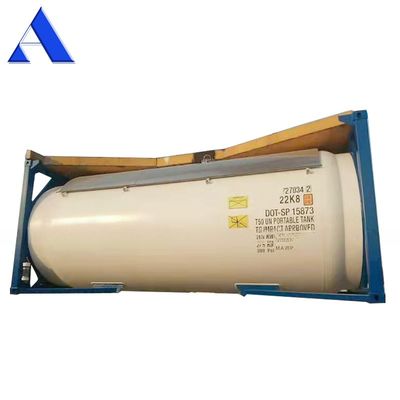

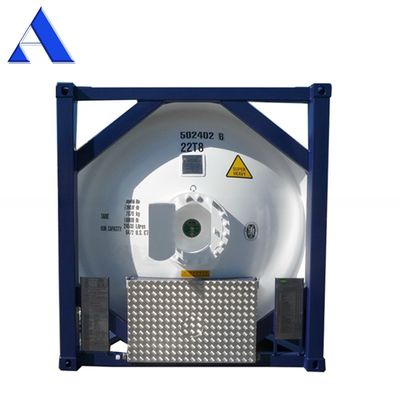

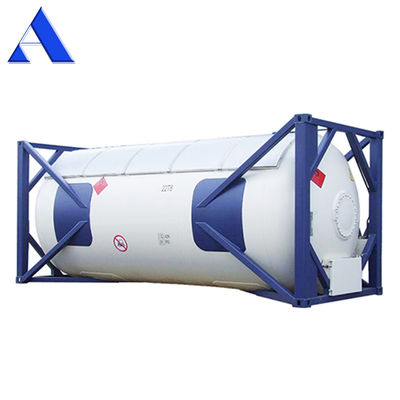

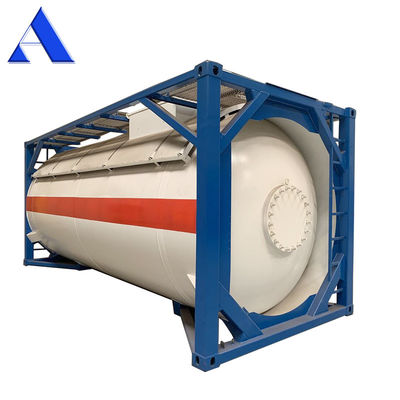

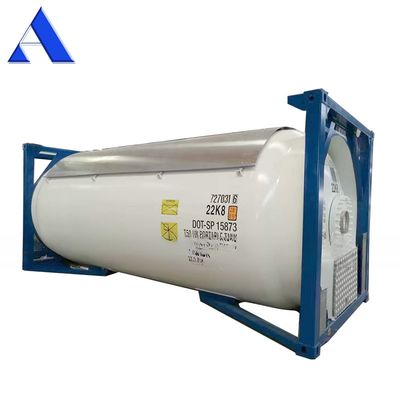

9 High Stacking T50 LPG Liquid Chlorine Gas 20ft ISO Tank Container 18/23.45Bar Pressure
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | CSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $31,500.00/pieces 1-1 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Tank Container, UN Portable Tank T-50 | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 24.7 CBM | External Dimensions(l X W X H)(mm): | 6.058 X 2.438 X 2.591M |
| Internal Dimensions(l X W X H)(mm): | 24,700L | Product Name: | LPG Iso Tank Container |
| Design Code: | ASME VIII Div. 2 With ASME U2-Stamp | Tank Material: | SA612N |
| Design Temperature: | -40 To +55 Centigrade | Approval: | IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT |
| Certificate: | LR | Pressure(Working/Test): | 18/23.45Bar |
| Stacking: | Each Container Is Approved For 9 High Stacking. | ||
Product Description
Hot Sale Products
Product Descriptions
ISO Tank container is a kind of steel pressure vessel installed in the fastening external frame. Most of the tanks are made of 316 stainless steel and equipped with steam or electric heating device, inert gas protection device, pressure relief device and other optional equipment for fluid transportation and handling.
European, American and Japanese laws stipulate that some goods must be transported in tank containers. As a means of Safety transportation, Tank Container has natural advantages and become more and more popular in the world.
Advantage of Tank Container
Low Cost
Saving land and sea freight, lower cost when long-term use.
Convenient and fast
Fast and Convenient for Loading and unloading, washing. Door to door by land transportation, railway, sea transportation.
Safety and Eco-Friendly
No leak or pollute the environment, and No pollute the goods themselves. The safest way to transport chemicals and food internationally recognized.
Product Spefications
|
Specifications
|
|
|
||
|
Tank Type
|
|
UN T50 Liquid Tank
|
||
|
|
|
Full Frame
|
||
|
Aplicable Medium
|
|
liquid chlorine
|
||
|
Vessel Design Code
|
|
ASME VIII DIV.1
|
||
|
Approval Standard
|
|
IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR, UIC, ISO
|
||
|
Main Date
|
Frame Dimensions
|
6058 x 2438 x 2591 mm
|
||
|
|
Capacity
|
21000 L
|
||
|
|
Payload
|
32490 Kgs
|
||
|
Working
|
Pressure
|
17 Bar (MAX)
|
||
|
|
Temperature
|
- 40 to 50 ℃
|
||
|
Material
|
Frame
|
Q345-D--GB/T1591
|
||
|
Material:
|
Shell & Head
|
SA-612M N
|
||
|
Details
|
Shell Nominal Thickness
|
20mm
|
||
|
|
Discharge
|
DN80 (Top) & 3'' BSP(Bottom)
|
||
|
|
Valves
|
Safety Relief Valve , Gas Line
Liquid Line
|
||
|
|
Other
|
Manhole, Thermometer, Pressure Gauge, Document Holder
Decals, Date plate, Valve Cabinet, Provision for Baffles
|
||
|
Please contact ACE to get technical specification for final confirmation.
|
|
|
||
Our Advantages
FAQ
1. Is your tank container New?
Yes, brand new
2. What certificate can you provide?
LR Certificate
3. How long can you delivery?
About 90-100 days
4. What is your payment term?
40%-50% TT in advance, the balance paid against the copy of certificate and picture, before delivery.
