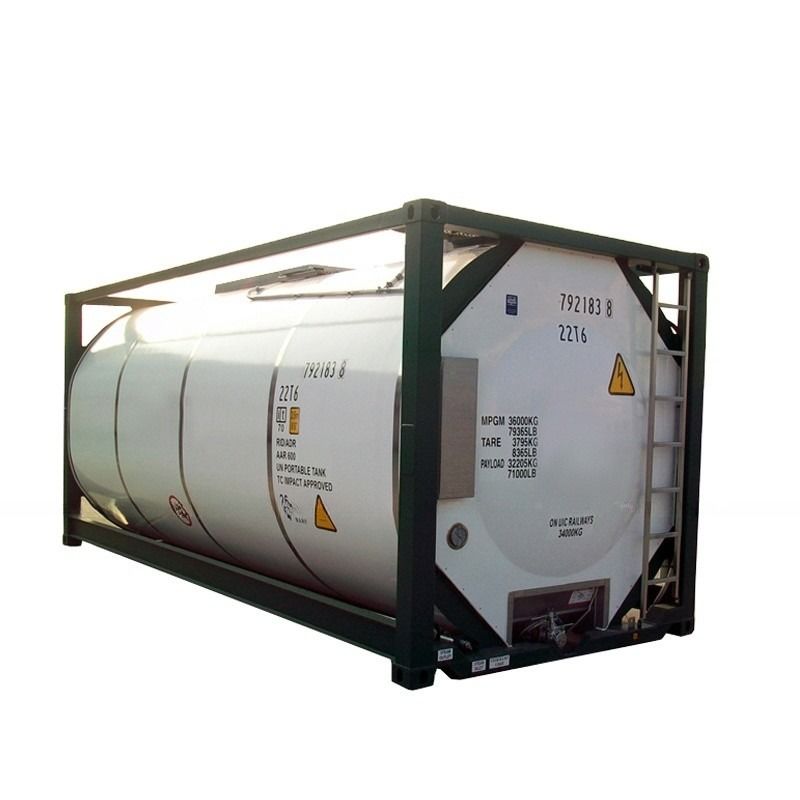

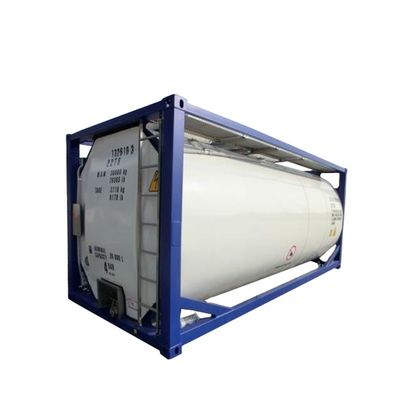

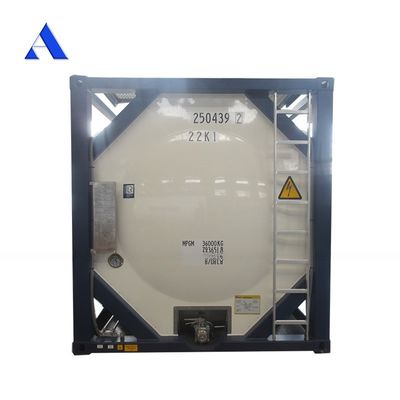

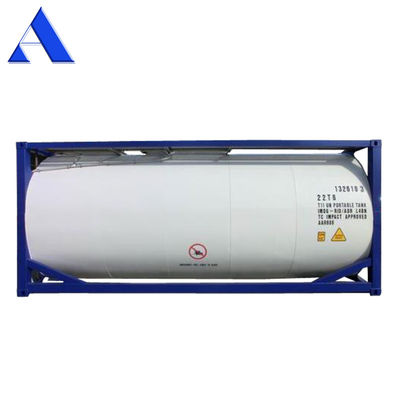

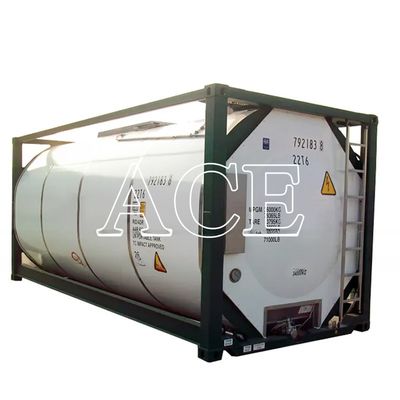

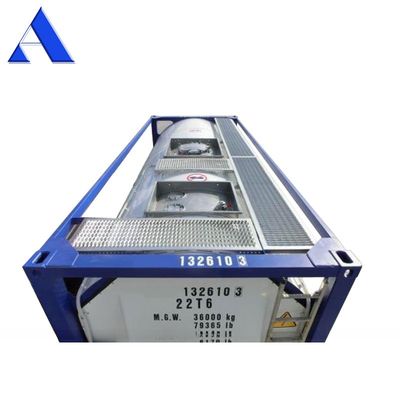

IMDG T4 Standard Steel Material 20ft ISO Fuel Tank Container 26000L Capacity for Safe Diesel and Gasoline Transport
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $16,900.00/pieces 1-1 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Tank Container | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 26 CBM | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 26000L | Vessel Material: | 304 Stainless Steel |
| Design Code: | T4 | Max Working Pressure: | 1.76 Bar |
| Payload: | 32300 Kgs | Approval: | LR CCS |
Product Description
Hot Sale Products
Product Description
304 Stainless Steel UN T4 Portable Fuel Tank Container
Vessel Material
Stainless Steel 304
T4 Grade
ASME Standard
UN Portable T4 Grade
Specification
|
Specifications_20ft ISOTank Container
|
|
|
||
|
Tank Type
|
|
UN T4 Liquid Tank
|
||
|
|
|
Full Frame
|
||
|
Aplicable Medium
|
|
General Liquid Chemicals
|
||
|
Vessel Design Code
|
|
ASME VIII DIV.1
|
||
|
Approval Standard
|
|
IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR, UIC, ISO
|
||
|
Main Date
|
Frame Dimensions
|
6058 x 2438 x 2591 mm
|
||
|
|
Capacity
|
26000 L
|
||
|
|
Payload
|
32300 Kgs
|
||
|
Working
|
Pressure
|
1.76 Bar (MAX)
|
||
|
|
Temperature
|
- 40 to 130 ℃
|
||
|
Details
|
Vessel
|
304
|
||
|
|
Discharge
|
DN80 (Top) & 3'' BSP(Bottom)
|
||
|
|
Valves
|
Safety Relief Valve , Air Inlet Ball Valve
45° Internal Foot Valve integrated a Butterfly Valve
|
||
|
|
Other
|
Manhole, Thermometer
|
||
|
Please contact ACE to get technical specification for final confirmation.
|
|
|
||
Packing & Delivery
Company Profile
FAQ
4.1. Are your 20ft fuel tank diesel container brand new?
Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.
4.2 Does your fuel tank diesel container meet with international requirement?
Yes, all of our container will be approval by BV or LR or CCS and meet with below requirement for named Tank Container.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11
4.3 Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production
4.4 Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
4.5 Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.
4.2 Does your fuel tank diesel container meet with international requirement?
Yes, all of our container will be approval by BV or LR or CCS and meet with below requirement for named Tank Container.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11
4.3 Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production
4.4 Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
4.5 Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
