45ft High Cube Reefer Container Diesel Generator Electric Power for Land Transportation or Railway CSC Certified 380/440V
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | CSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $29,000.00-58,000.00/pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Reefer Container | Length (feet): | 45' |
|---|---|---|---|
| Capacity: | 78 CBM | External Dimensions(l X W X H)(mm): | 13716 X 2438 X 2896 Mm |
| Internal Dimensions(l X W X H)(mm): | 13320 X 2294 X 2554 Mm | Material: | Corten-A,SS |
| Color: | White | Logo: | Customized |
| Insulation: | Polyurethane | Floor: | T-floor |
| Cooling Unit: | Thermo King | Power: | 380/440V, 3 Phase, 50/60Hz |
Product Description

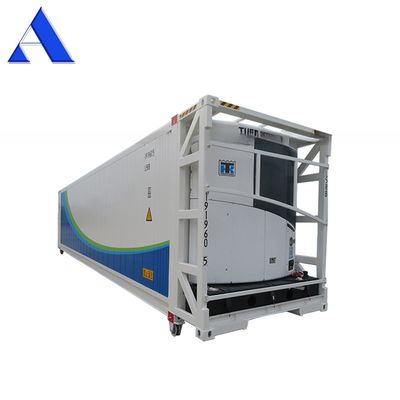

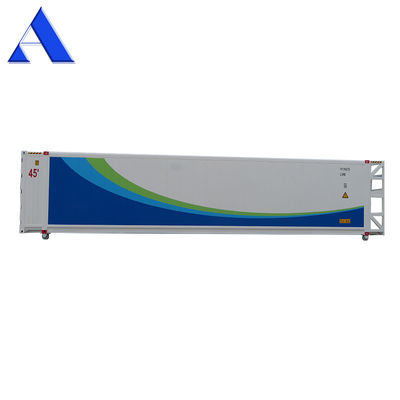

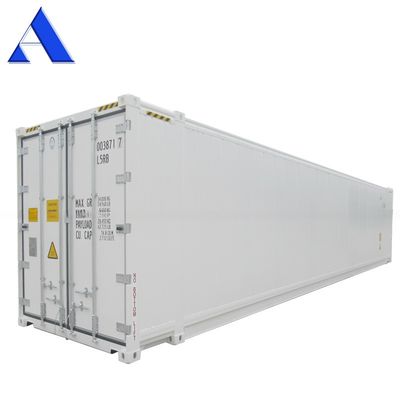

Diesel Electric 45ft Reefer Container
45ft diesel-electric reefer container, which is with big capacity fuel tank, suitable for road and rail transportation. Its structure characteristics are as follows:
1. Steel reefer structure, MGSS outer panels, SUS side & door lining, Pre-painted AL sheet;

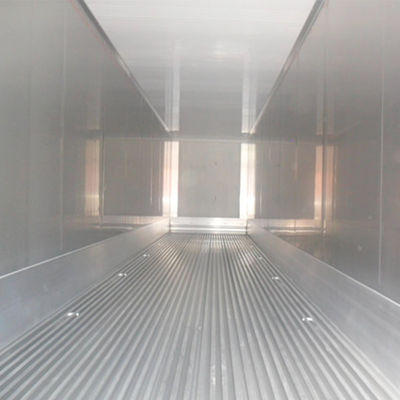

2. Corrugation base panel, one piece gooseneck tunnel and extrusion AL T-floor;

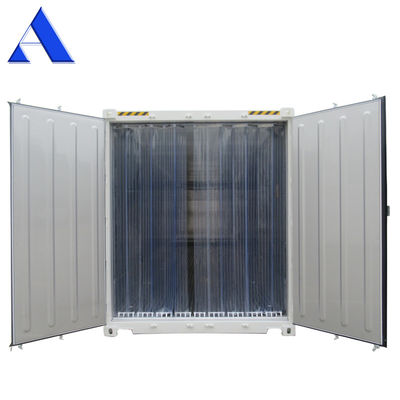

3. Two pieces rear door, no solid rivet door panel.
2.Approve: BV or ABS
3.Meeting ISO, UIC, TIR, CSC, TCT
4.Color: White
5.Floor: T type floor/Flat

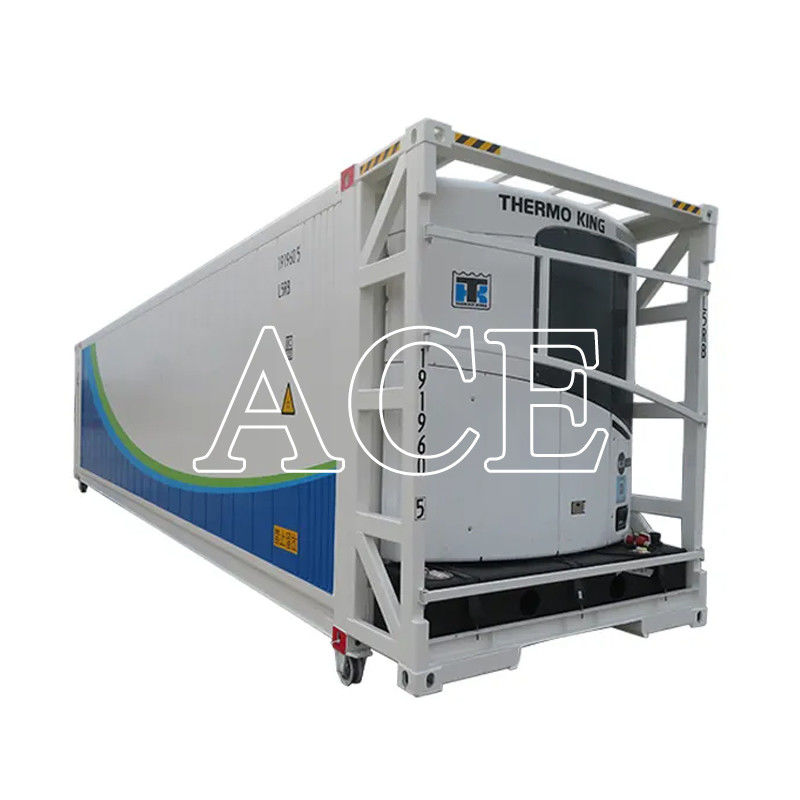

7. Cooler Brand: TK SLX
8. Temperature Range: -25 ℃9. Options: custom reefer container
10. Tank Capacity: 400L
45ft Diesel Electric Reefer Container Specifications: | ||||||
External | 13716 x 2438 x 2896 | mm | ||||
Internal | 13320 x 2294 x 2554 | mm | ||||
Door Opening(W x H) | 2290 x 2569 | mm | ||||
Inside Cubic Capacity | 78 | CBM | ||||
Maximum Gross Weight | 34000 | KG | ||||
Tare Weight | 4560 | KG | ||||
Maximum Payload | 29440 | KG | ||||
Allowable Stacking Weight | 216000 | KG | ||||
Cooling Capacity /W | 6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ | |||||
Main Circuit | 3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | |||||
Heat Leakage | 23 | |||||
Air Leakage | 5 | |||||
Warranty | Container Body | 1 Year | ||||
Cooler Units | 1 Year | |||||
Compressor | 3 Years | |||||
Marks | 5 Years | |||||
ACE Container & Parts Co.,LTD
ACE Container is a professional Container & Parts supplier in China, which has over 10 years experience in this line, 9 years Golden Member in Alibaba, Trade Assurance Service in Alibaba. Also, ACE Container has exported products to over 85 countries.
• Our Main Business Line: All kinds of Dry Cargo Container, Reefer Container, Offshore Container, Dry Container Parts and Container Lashing Equipments.
• Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.
1. Are your 45ft diesel electric reefer container meet with ISO requirement?
Yes, our container are BV approval and meet with ISO requirement.
2 Can we choose the cooler system?
For this such reefer container, mianly supply Thermo King brand cooler
3 Can I have load my goods in China?
Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requirement on cargo package and Loading/unloading.
4 How about capacity of flue tank ?
about 400L
