Production Time: About 3-4 weeks production time.
Package
reefer container generator: Usually 6 units packed into one 20ft container
 |

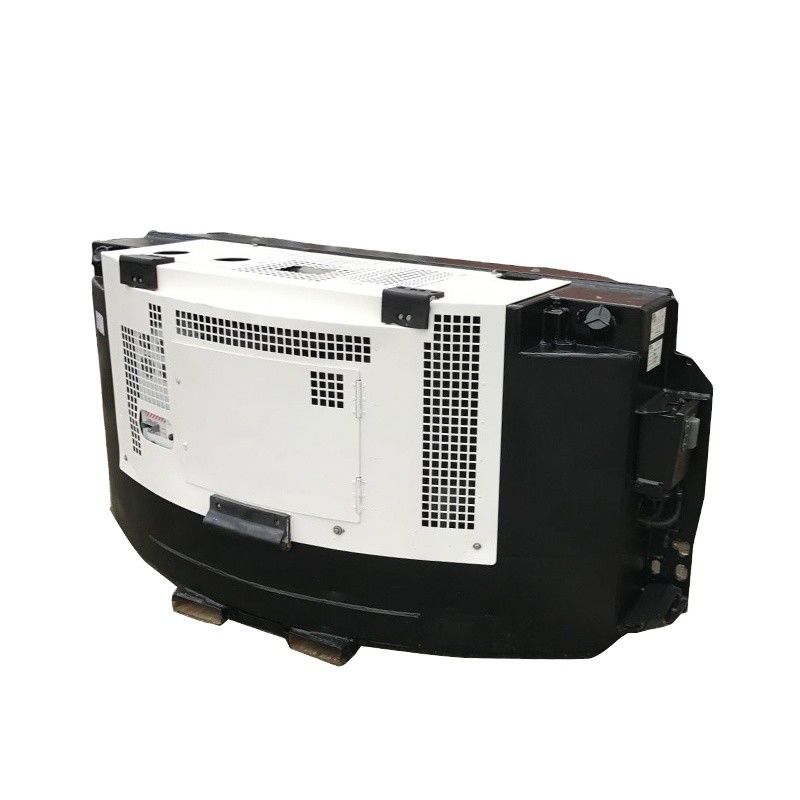

AC Three Phase Output 15KW 60Hz Clip-On Type Reefer Container Diesel Generator Set with 460/230V Rated Voltage
Product Details:
| Place of Origin: | Tianjin, China |
| Model Number: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $5,900.00/pieces 1-1 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Product Name: | Reefer Container Generator | Weight: | 818KGS |
|---|---|---|---|
| Output Type: | AC Three Phase | Rated Power: | 15KW |
| Rated Voltage: | 460/230V | Rated Current: | 25A |
| Size: | 1053x2337x710mm | Type: | Clip-on Type |
| Warranty: | 1 Year | ||
Product Description
Hot Sale Products
Product Description
1.General Introductions
The reefer container generator set is designed for mounting to the upper front structure of an ISO container.The design incorporates a quick connection to the upper container corner castings with mounting clamps. Additional attaching points on the container vertical structural members provide a secure mounting arrangement.
Control System_ genset for reefer container
1.Control unit: ERS or HGM1750 or HGM1780
2.Instrument: Hour meter/Temperature gauge/Oil pressure gauge/Ammeter/indicator or LCD
3.Protection feature: Low oil pressure, High coolant temperature, Low coolant level,Generator short circuit or over load
4.Generator set Control: ON/OFF switch, PREHEAT/START switch
Product Datasheet
2. Specification_ reefer container generator
Engine | TK Diesel engine compliant with Interim Tier 4 2008 requirements |
Fuel Type | No.2 Diesel (under normal conditions) No.1 Diesel (cold weather fuel) |
Rotational speed | 1890+/-10 RPM 1560 + 10-0 RPM |
Generator | 460/230 Vac, 3 Phase, 60Hz |
Output Power | 15 kW |
Apparent Power | 18.75 kVA |
Rotational speed | 1800 RPM |
Electrical System | SG+ microprocessor controller |
Battery | 12V, 925 CCA at –18⁰C (0⁰F) |
Fuel Tank | Included in all models |
SG Clip-On SG Centre-mount SG Side-mount | 125 gal (473 litres) 80 gal or 50 gal (302 litres or 198 litres) 75 gal (283 litres) Round steel tank |
Packing & Delivery
Shipping
Our Company
1. ACE Container & Parts Co.,LTD
ACE Container is a professional Container & Parts supplier in China, which has over 10 years experience in this line, 6 years Gloden Member in Alibaba, Trade Assurance Service in Alibaba. Also ACE Container has exported products to over 55 countries.
• Our Main Business Line: Reefer Container Generator, All kinds of Dry Cargo Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipments.
• Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.
