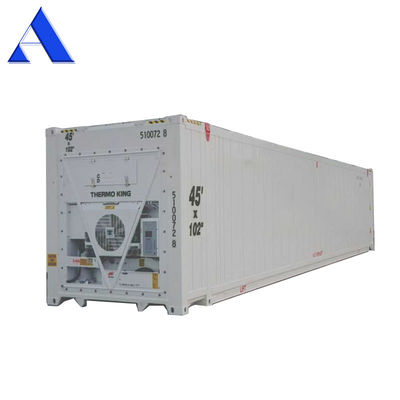

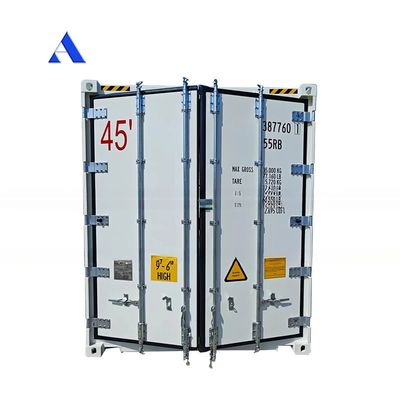

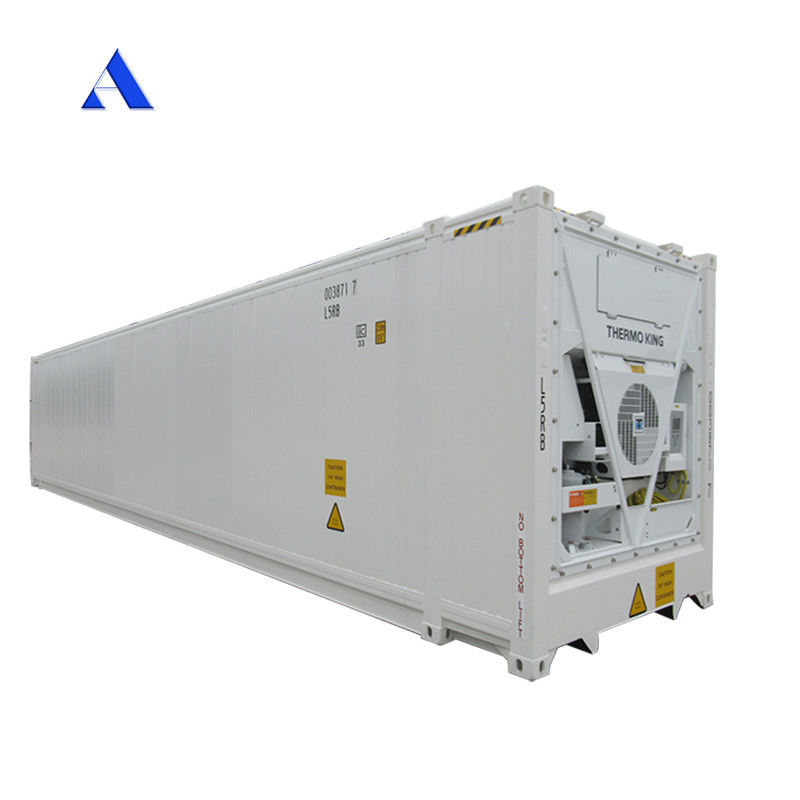

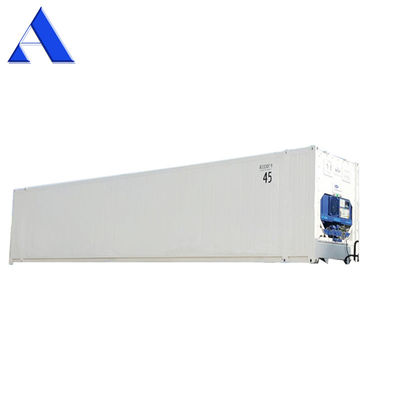

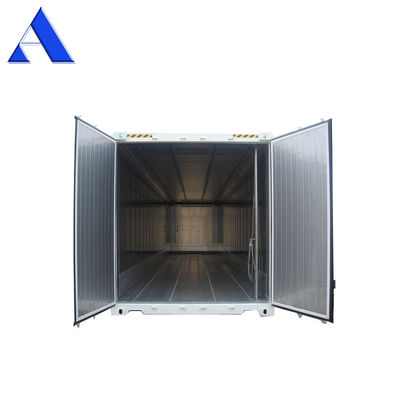

13114 x 2274 x 2554 mm Internal Dimensions 45ft High Cube Thermo King Refrigerator Freezer Cold Room with BV Certificate
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | BV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $29,000.00/pieces 1-1 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Reefer Container | Length (feet): | 45' |
|---|---|---|---|
| Capacity: | 67 Cbm | External Dimensions(l X W X H)(mm): | 13716 X 2438 X 2896 Mm |
| Internal Dimensions(l X W X H)(mm): | 13114 X 2274 X 2554 Mm | Color/logo: | Optional |
| Cooling Unit: | Thermo King, Daikin, Carrier | Temperature Range: | -30 To + 30 Centigrade |
| Function: | Transporting Fresh Goods | Origin: | Shanghai, Tianjin China |
| Roof & Floor: | Aluminum | ||
Product Description
Hot Sale Products
Product Description
45ft Reefer Container for Sale
Thermo King (US)
Cooling gas: R134a
400 to 500 Vac 3ph 60 Hz
360 to 460 Vac 3ph 50 Hz
Temperature Range:
-40℃ (-40F) to 30℃ (86F).
Carrier(US)
Cooling gas: R134a
380/460 VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30℃ (-22F) to 30℃ (86F).
Daikin (Japan)
Cooling gas: R134a
380/440VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30~50°C (-22~122°F)
Euro Pallet Wide 45ft Reefer Container
Product Datasheet
External Size | 13716 x 2438 x 2896 | MM | |
Internal Size | 13114 x 2260 x 2554 | MM | |
Door Opening | 2290 x 2260 | MM | |
Inside Capacity | 67 | CBM | |
Maximum Gross Weight | 34000 | KGS | |
Tare Weight | 4850 | KGS | |
Maximum Payload | 29150 | KGS | |
Allowable Stacking Weight (1.8G) | 216000 | KGS | |
Inside Temperature Range | -30 to + 30 centigrade | ||
Main Circuit | 3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | ||
Cooling Machine | Thermo King | ||
Refrigerant: | ||||||
R134a | R404a | |||||
Molecular Formula: | CH2FCF3 | R143a, R125a, R134a | ||||
Molecular Weight: | 102 | ****** | ||||
ODP | 0 | 0 | ||||
Boiling Point: | -26.1°c | -46.1°c | ||||
GWP | 0.2 | 0.6 | ||||
Heat Leakage(Kcal/Hr.°c) | ||||||
20ft Reefer Container | 40ft Reefer Container | |||||
ISO1496-2:1996 | ≤26 | ≤51 | ||||
ACE Prodcut: | 23 | 43 | ||||
Result: | Good | Good | ||||
Air Leakage(Cbm/Hr): | ||||||
20ft Reefer Container | 40ft Reefer Container | |||||
ISO1496-2:1996 | ≤10 | ≤10 | ||||
ACE Prodcut: | 5 | 5 | ||||
Result: | Good | Good | ||||
