20ft 40ft Movable Refrigerator Cold Storage Room Container -30 to 30 Centigrade Inside Temperature Approval BV GL
Product Details:
| Place of Origin: | China |
| Brand Name: | ACE |
| Certification: | CSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $15,500.00/pieces 2-3 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Reefer Container | Length (feet): | 20' |
|---|---|---|---|
| Keywords: | Cold Storage Container | Color: | Choose |
| CSC Certified: | Yes | Approval: | BV GL Certified |
| Inside Termperature: | -30 To +30 Centigrade | Cooling Unit: | Daikin, Carrier, Thermo King |
| Gensent: | Chinese Brand, Thermo King Brand | Operation Temperature: | -40 To +80 Centigrade |
| Application: | Food, Mear, Fish, Vegetable Etc. | ||
Product Description
20ft 40ft Container Storage Cold Room
20ft 40ft container cold rooms are a good insulation, air tightness container. It have it's own cooler system and can maintain refrigerated container a certain low temperature. So that it's applicable for transportation of many types of perishable food and drugs.
2.Inner Panel: Stainless Steel
3.Insulation Material: PU
5.Floor: Aluminum T type
6.Temperature Range: -30 to +30℃
Brand of Cooling Unit
Brand: Daikin (Japan)
Power: 380V/44V, 3 phase, 50Hz/60Hz
Cooling Gas: R134a
Compressor Type:
Hermetic Scroll Compressor
Brand: Carrier (USA)
Power: 380V/44V, 3 phase, 50Hz/60Hz
Cooling Gas: R134a
Compressor Type:
HFC-134a Digital Scroll Compressor
Brand: Thermo King (USA)
Power: 380V/44V, 3 phase, 50Hz/60Hz
Cooling Gas: R404a
Compressor Type: ZMD18KVE-TFD-277
Temperature Range: -40 to +30 ℃
Compressor
Control Panel
CSC Plate

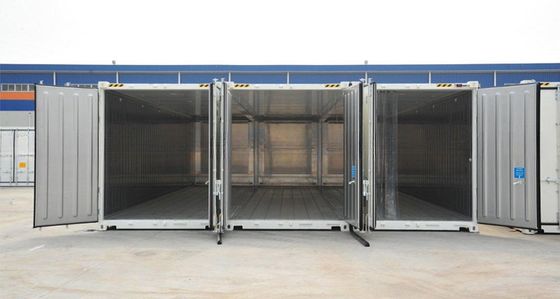

Reefer Container Inner
( Stainless Panel)
T type Floor
(Aluminum Material)
Power Plug
Cable Length: 18m
Some Request and Parts Options:
Small Side
As per your requirement
PVC Curtain
(As per your requirement)
Container Ramp
(Stainless or Aluminum)
Specification_Container Cold Room | ||||||
10ft | 20ft | 40ft HC | ||||
External Size | 2991x2438x2591mm | 6058x2438x2591mm | 12192x2438x2896mm | |||
Internal Size | 2389x2294x2273mm | 5468x2294x2273mm | 11590x2294x2554mm | |||
Door Opening(W*H) | 2290x2264mm | 2290x2264mm | 2290x2569mm | |||
Inside Cubic Capacity | 12.5 | 28.4 | 67.9 | |||
Maximum Gross Weight | 15000 | 30480 | 34000 | |||
Tare Weight | 2600 | 2900 | 4560 | |||
Maximum Payload | 12400 | 27580 | 29440 | |||
Allowable Stacking Weight | 86400 | 216000 | 216000 | |||
Cooling Capacity /W | 6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ | |||||
3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | ||||||
Consumption /KW | MAX 13.5 60HZ | |||||
Heat Leakage | 23 | |||||
Air Leakage | 5 | |||||
Warranty | Container Body | 1 Year | ||||
Cooler Units | 1 Year | |||||
Compressor | 3 Years | |||||
Marks | 5 Years | |||||
If you have cargoes in China, you could load its into our container and exported them together to save sea freight.
1. Are your container meet with ISO requirement?
Yes, our container are BV, GL, DNV approval and meet with ISO requirement.
2. Can we choose the cooler system?
Sure, you could choose one from Daikin / Carrier / Thermoking
3. Can i have load my goods in China?
Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requiremet on cargo package and Loading/unloading.
4. Do you supply generator ?
Yes, we have.
5. Do you supply reefer container parts?
Yes, we provide parts for repair the container body. For cooler system, the supplier(Daikin, Carrier, Thermoking) provide global service.
