Product Details:

Place of Origin: Tianjin, China
Brand Name: ACE

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: $14,500.00-17,700.00/units
Delivery Time: within 30 days
Get Best Price Contact Now

Detail Information
Type: Reefer Container Length (feet): 40'
Capacity: 68cbm External Dimensions(l X W X H)(mm): 12192 X 2438 X 2896 Mm
Internal Dimensions(l X W X H)(mm): 11979 X 2294 X 2554 Mm Reefer Units: Thermo King
Inside Temperature: -30°C / -22F Deg Optional Reefer: Carrier / Daikin
Liner Material: Stainless Steel / Alumimum Power Supply: 3 Phase, 380 440V

Product Description

40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 0
Hot Sale Products
Product Details

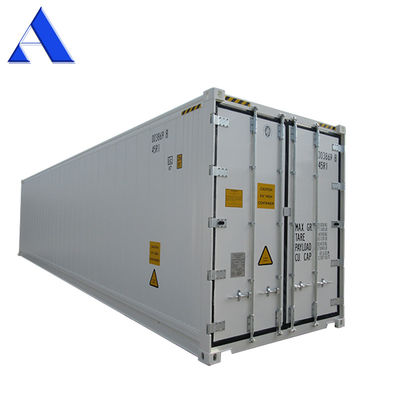

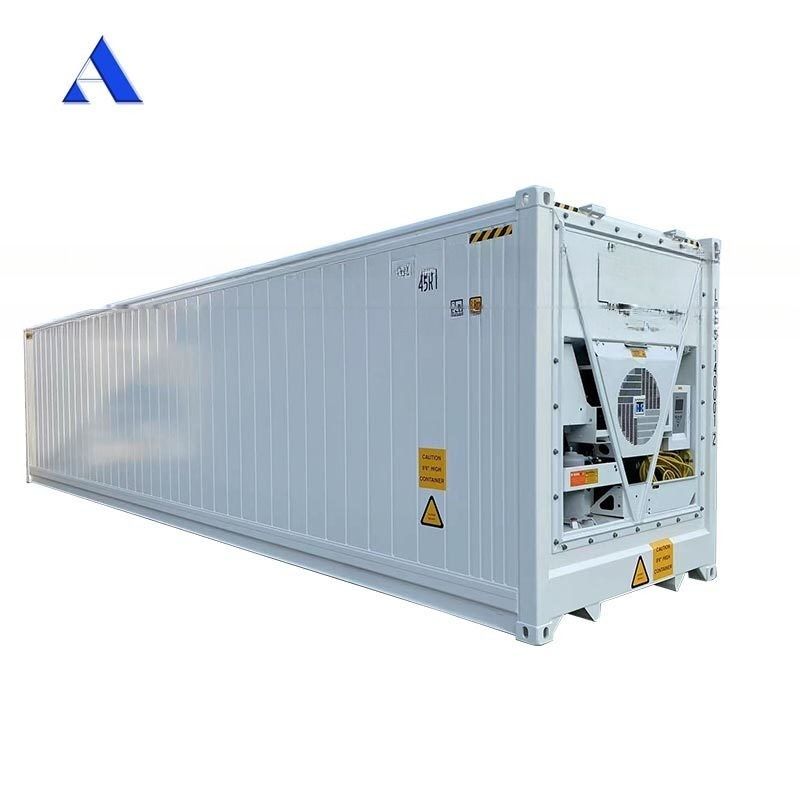

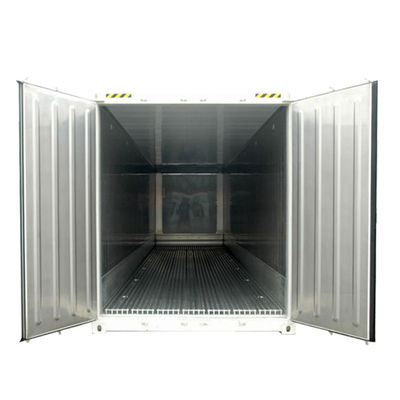

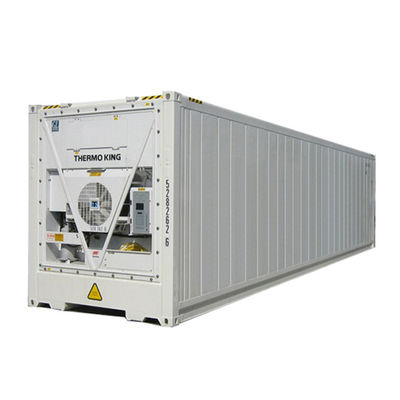

40FT High Cube Reefer Container
Reefer container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or below deck) throughout the world and will range from -30°C (-22F Deg) to +80°C (176F Deg) without effect on the strength of basic structure. A mechanical refrigeration unit of a “one piece picture frame type” will be fitted to the front end frame. The container is designed with a refrigeration unit to maintain the inside space temperature at -18°C in ambient temperature up to 38°C.
3 Brand Cooling Unit for Choose
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 1

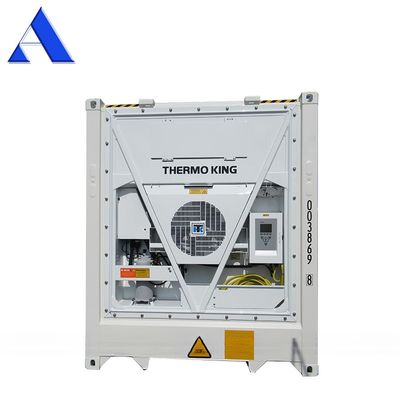

Thermo King (US)

Cooling gas: R134a

400 to 500 Vac 3ph 60 Hz
360 to 460 Vac 3ph 50 Hz

Temperature Range:

-40℃ (-40F) to 30℃ (86F).


40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 2

Carrier(US)

Cooling gas: R134a

380/460 VAC 3ph 50/60Hz

24 VAC control circuit

Temperature Range:

-30℃ (-22F) to 30℃ (86F).

40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 3

Daikin (Japan)

Cooling gas: R134a

380/440VAC 3ph 50/60Hz

24 VAC control circuit

Temperature Range:

-30~50°C (-22~122°F)

40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 4
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 5
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 6
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 7
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 8
40ft Reefer Container with Carrier Brand Cooler
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 9
40ft Reefer Container with Daikin Cooler
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 10
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 7
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 8
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 13
TK Compressor, R404A gas
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 14
Power Cable 18mm
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 15

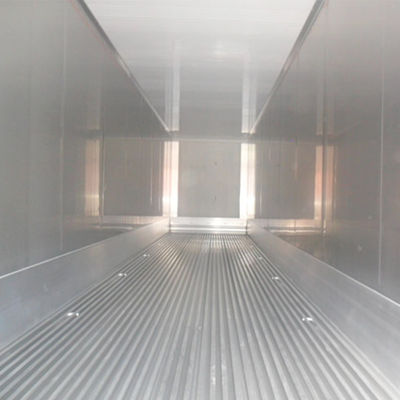

Aluminum T Floor
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 16
Refer Container Cable Plug
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 17
CSC Plate
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 18
Thermo King MP4000 Controler
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 19
Product Spefications
Specification
10ft
20ft
40ft HC
External Size(mm)
2991 x 2438 x 2591
6058 x 2438 x 2591
12192 x 2438 x 2896
Internal Size(mm)
2389 x 2294 x 2273
5468 x 2294 x 2273
11590 x 2294 x 2554
Door Opening(W*H)
2290 x 2264mm
2290 x 2264mm
2290 x 2569mm
Inside Cubic Capacity
12.5
28.4
67.9
Maximum Gross Weight
15000
30480
34000
Tare Weight
2600
2900
4560
Maximum Payload
12400
27580
29440
Allowable Stacking Weight
86400
216000
216000

Cooling Capacity /W
             6300/5580 AT -18℃ Inside/ 38℃ Outside
60/50HZ


Main Circuit
3 PHASE AC 440, 460V/380, 400, 415
60/50HZ
Consumption /KW
MAX 13.5              60HZ
Heat Leakage
23
Air Leakage
5
Packing & Delivery
For Brand New 40 feet thermo king Reefer Container Shipment

1. If you have cargo to load into the container:
You could directly pick container up from our yard, and loading goods in factory, and delivery them to port together. This is the best way to save time and cost for you.

2. Only Empty Reefer Container:
Shipping it as empty SOC via container vessel shipping.
Booking Space via picture, CSC plate, Certification.
40ft Corten Steel and Aluminium Material Refrigerated Container with -30°C / -22F Deg Inside Temperature from Thermo King 20
