| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | BV GL ABS CCS |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $29,000.00/units 1-1 units |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Reefer Container | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 28.4CBM | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 5468 X 2294 X 2273 Mm | Material: | Corten Steel |
| Floor: | Aluminium T-Bar Floor | Cooler Brand: | Daikin, Thermo King, Carrier |
| Function: | Transporting Fresh Goods | ||
Famous brand of refrigerators, Daikin, Thermo King, Carrier!
●Quantity and location of the side opening
door could be customized

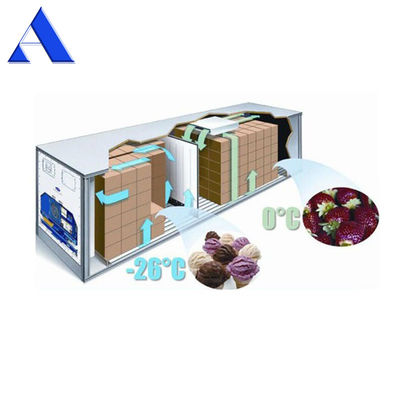

●Temperature:
Freezer: -18℃, Chiller: +5 ℃
●Inside Partition Board is movable
●Logo and color can be customized
●Power: 380/460, 3phase, 50/60Hz
●Cooler brand: Daikin, Thermo King, Carrier
●Including side door and emergency door
Easy to move, Easy to transport, keep a good freshness ! Simple and practical,
Energy-efficient, It must be an advisable choice!
We also have the complete brochure of the refrigerated container, pls sent email to us to get the data sheet.
All the refrigerated containers have been certified by major Classification Society (CCS, BV, ABS, GL), Completely conforming to International Standard.
Specifications: | ||||||
Dimensions (L x W x H) | External | 6058 x 2438 x 2591 | MM | |||
20 x 8 x 8.5 | FT | |||||
Internal | 5440 x 2292 x 2310 | MM | ||||
Door Opening ( W x H ) | 2288 x 2251 | MM | ||||
Side Opening Door | 1400 x 2000 | MM | ||||
Inside Cubic Capacity | 28.4 | CBM | ||||
Maximum Gross Weight | 24000 | KG | ||||
Tare Weight | 3360 | KG | ||||
Cooler Brand | Daikin, Thermo King, Carrier | |||||
Main circuit | 3 Phase AC440, 460V /380, 400, 415V 60/50HZ | |||||
Temperature: | Frozen Romm: -18 ℃， Chiller Room: about +5 ℃ | |||||
We also can help you to transport our container to anyplace you want in China, and also can export it to your country.
2.We have over 11 years experience in container service, so exporting containers is easy for us, and "one way" is also ok!
Send your inquiry details in the below for free sample, drawing sheet, and perfect price!
