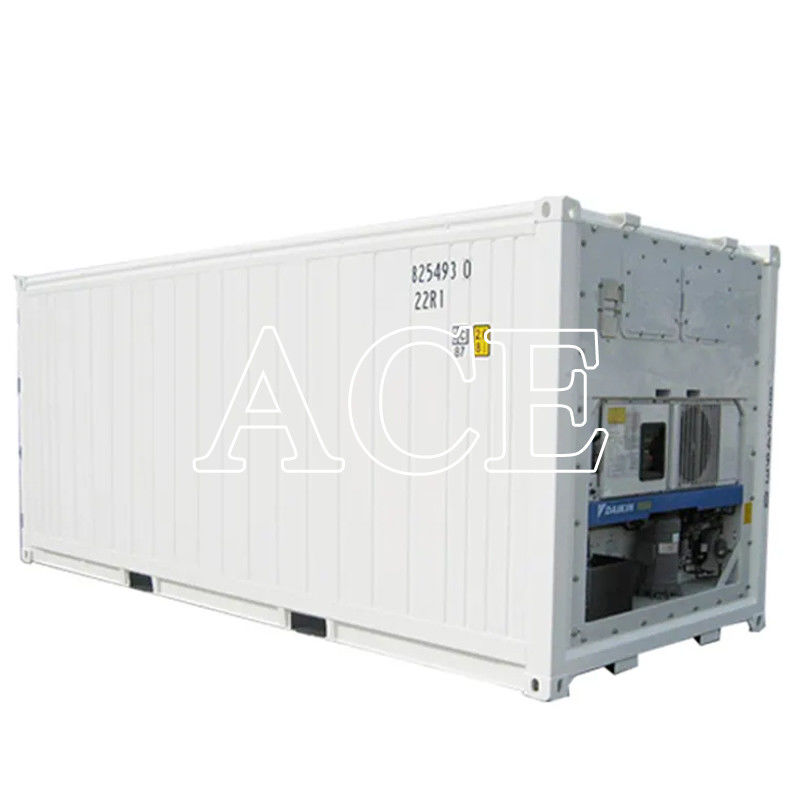

20ft Corten-A Refrigerator Reefer Container in Dubai Ideal for Freezer Fish and Meat Transport
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $16,500.00/units 1-1 units |
| Packaging Details: | ship directly as SOC |
| Delivery Time: | within 30 days |
| Supply Ability: | 200 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Frozen Container | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 28.4 CBM | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 5468 X 2294 X 2273 Mm | Product Name: | Frozen Container |
| Material: | Corten-A | Inside Cubic Capacity: | 28.4 CBM |
| Main Circuit: | 3 Phase, 460V/380,60/50HZ | Cooler: | Daikin, Thermo King, Carrier |
| Air Leakage: | Lower Than 10 | Warranty: | 1 Year |
| Maximum Gross Weight (KG): | 34000 KGS | Tare Weight (KG): | 3910 KGS |
| Max Payload: | 29550 KGS | Port: | Tianjin / Shanghai / Qingdao |
Product Description
Hot Sale Products
Production & Inspection
20ft Reefer Container
Temperature range: -30℃ to +30℃, can be lower.
Usage: Transportation for fresh goods.
Partition wall can be made.
Side door can be made as per requirement.
Side door can be made as per requirement.

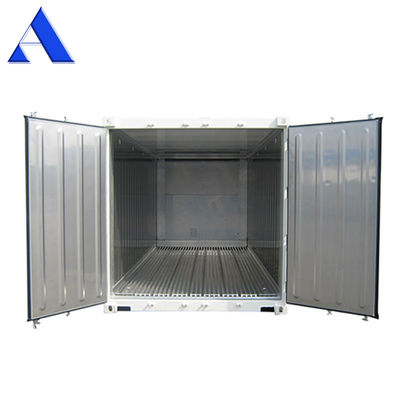

Floor: Aluminium T- bar Floor.
Cooler brand: Daikin, Thermo King, Carrier.
Cooler brand: Daikin, Thermo King, Carrier.
About Reefer Container

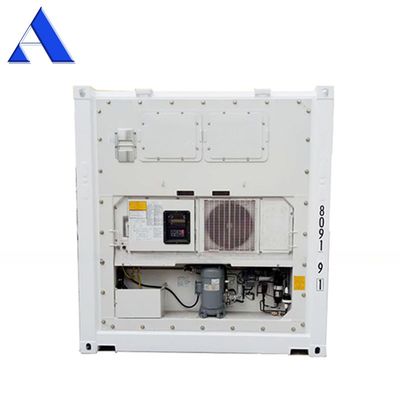

Reefer container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or bellow deck) throughout the world and will range from -30°C (-22F Deg) to +80°C (176F Deg) without effect on the strength of basic structure. A mechanical refrigeration unit of a “one piece picture frame type” will be fitted to the front end frame. The container is designed with a refrigeration unit to maintain the inside space temperature at -18°C in ambient temperature up to 38°C.
3 Brand Cooling Unit for Choose
Thermo King (US)
Cooling gas: R134a
400 to 500 Vac 3ph 60 Hz
360 to 460 Vac 3ph 50 Hz
Temperature Range:
-40℃ (-40F) to 30℃ (86F).
Carrier(US)
Cooling gas: R134a
380/460 VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30℃ (-22F) to 30℃ (86F).
Daikin (Japan)
Cooling gas: R134a
380/440VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30~50°C (-22~122°F)
TK Compressor, R404A gas
Power Cable 18mm
Aluminum T Floor
Refer Container Cable Plug
CSC Plate
Thermo King MP4000 Controler
Product Datasheet
Type | Frozen Container 20ft | Frozen Container 40ft | |||
External Dimensions | 6058 x 2438 x 2591 | 12192 x 2438 x 2896 | MM | ||
Internal Dimensions | 5468 x 2294 x 2273 | 11590 x 2294 x 2554 | MM | ||
Door Opening (W x H) | 2290 x 2264 | 2290 x 2559 | MM | ||
Inside Cubic Capacity | 28.4 | 67.9 | CBM | ||
Maximum Gross Weight | 30480 | 34000 | KGS | ||
Tare Weight | 2900 | 4560 | KGS | ||
Maximum Payload | 27580 | 29440 | KGS | ||
Allowable Stacking Weight | 216000 | 216000 | KGS | ||
Cooling Capacity(W) | 6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ | ||||
Main Circuit | 3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | ||||
Consumption(KW) | MAX 13.5 60HZ | ||||
Our Advantages
Certificate
FAQ
1. Can you supply ONE WAY survice for 20ft reefer container to my country?
Yes, we can do one way to the main port in the wold, kindly contact us for your detail requirement.
2 Can we choose the cooler system?
Sure, you could choose one from Daikin / Carrier / Thermo king.
3 Can i load my goods in China?
Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requirement on
cargo package and Loading/unloading.
4 Do you supply generator?
Yes, we have. More details please contact us.
5. What is the payment terms that you can accept?
Generally T/T 30% deposit before producation and 70% before shipment.
Other payment terms please contact me for more details.
Yes, we can do one way to the main port in the wold, kindly contact us for your detail requirement.
2 Can we choose the cooler system?
Sure, you could choose one from Daikin / Carrier / Thermo king.
3 Can i load my goods in China?
Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requirement on
cargo package and Loading/unloading.
4 Do you supply generator?
Yes, we have. More details please contact us.
5. What is the payment terms that you can accept?
Generally T/T 30% deposit before producation and 70% before shipment.
Other payment terms please contact me for more details.
