1.Material: Corten Steel and SS
2.Approve: BV , GL , ABS , DNV
3.Meeting ISO, UIC, TIR, CSC, TCT
4.Color: White
5.Floor: T type floor
6.Logo: Customized
7. Cooler Brand: Carrier PrimeLINE
8. Temperature Range: -30 to +30℃
 |
20ft Reefer Container Carrier Refrigerator Freezer or Frozen Dual Purpose with Internal Dimensions
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $15,500.00/pieces 1-1 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Reefer Container | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 28.4 Cbm | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 5468 X 2294 X 2273 Mm | Name: | 20ft Reefer Container |
| Color: | Choose | Age: | Brand New |
| CSC Certified: | Yes | Logo: | As Per Your Request |
| Approval: | BV GL Certified | Cooling Unit: | Carrier |
| Generator Set: | Chinese And Thermo King Brand | Max Inside Temperature Range: | -30 To +30 Centigrade |
| Application: | Food, Meat, Fish, Vegetable Storage Etc. | ||
Product Description
Hot Sale Products
Product Description

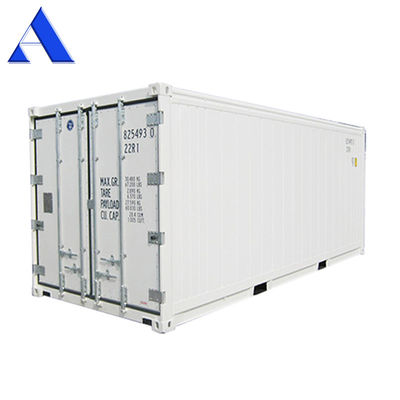

New 20ft Reefer Container with US Carrier Brand Refrigerator
20ft Carrier Refrigerated Container is a good insulation, air tightness container. It have it's own cooler system and can maintain 20ft freezer container a certain low temperature. So that it's applicable for transportation of many types of perishable food and drugs.
The container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or bellow deck) throughout the world and will range from -40°C to +80°C without effect on the strength of basic structure.
Classification Society: with BV or GL certified

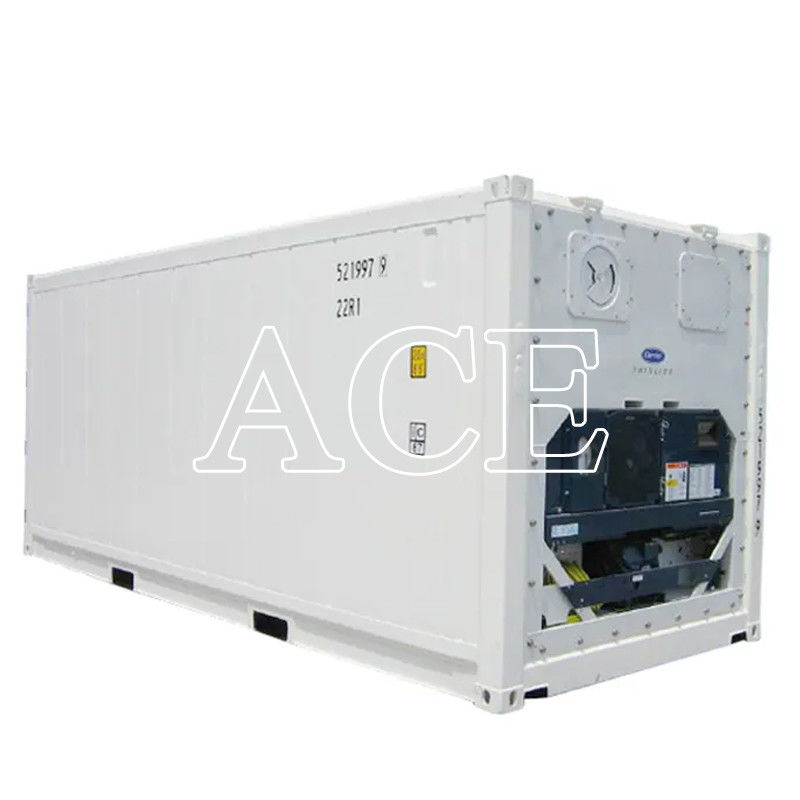

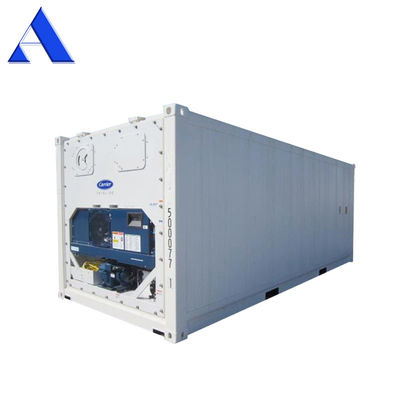

20ft Carrier refrigerated container
3 Brand of Cooling Unit for Choice
Brand: Daikin (Japan)
Power: 380V/44V, 3 phase, 50Hz/60Hz
Cooling Gas: R134a
Compressor Type:
Hermetic Scroll Compressor

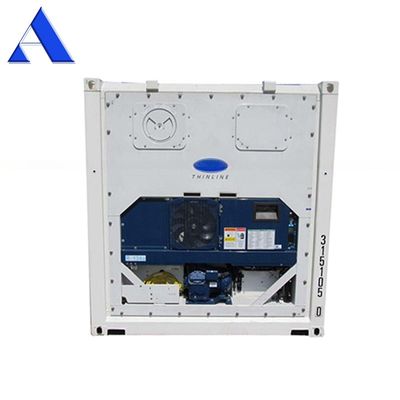

Brand: Carrier PrimeLINE (USA)
Power: 380V/44V, 3 phase, 50Hz/60Hz
Cooling Gas: R134a
Compressor Type:
HFC-134a Digital Scroll Compressor
Brand: Thermo King (USA)
Power: 380V/44V, 3 phase, 50Hz/60Hz
Cooling Gas: R404a
Compressor Type: ZMD18KVE-TFD-277
Temperature Range: -40 to +30 ℃

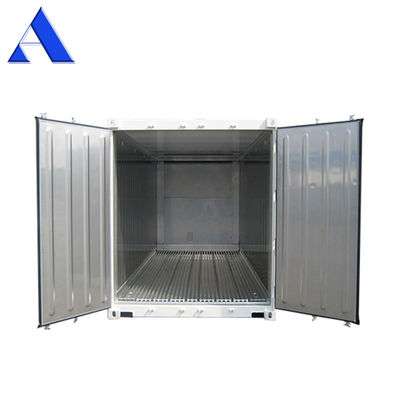

Reefer Container Inner
( Stainless Panel)
T type Floor
(Aluminum Material)
Power Plug
Cable Length: 18m
Product Spefications
Specifacations of 20ft Carrier Refrigerated Container | ||||||
10ft | 20ft | 40ft HC | ||||
External Size | 2991x2438x2591mm | 6058x2438x2591mm | 12192x2438x2896mm | |||
Internal Size | 2389x2294x2273mm | 5468x2294x2273mm | 11590x2294x2554mm | |||
Door Opening(W*H) | 2290x2264mm | 2290x2264mm | 2290x2569mm | |||
Inside Cubic Capacity | 12.5 | 28.4 | 67.9 | |||
Maximum Gross Weight | 15000 | 30480 | 34000 | |||
Tare Weight | 2600 | 2900 | 4560 | |||
Maximum Payload | 12400 | 27580 | 29440 | |||
Allowable Stacking Weight | 86400 | 216000 | 216000 | |||
Cooling Capacity /W | 6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ | |||||
3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | ||||||
Consumption /KW | MAX 13.5 60HZ | |||||
Heat Leakage | 23 | |||||
Air Leakage | 5 | |||||
Warranty | Container Body | 1 Year | ||||
Cooler Units | 1 Year | |||||
Compressor | 3 Years | |||||
Marks | 5 Years | |||||
Heat Leakage(Kcal/Hr.°c) | ||||||
20ft Reefer Container | 40ft Reefer Container | |||||
ISO1496-2:1996 | ≤26 | ≤51 | ||||
ACE Prodcut: | 23 | 43 | ||||
Result: | Good | Good | ||||
Packing & Delivery
Carrier refrigerated container has no package
For 10ft reefer container, we will connect 2 pcs of 10ft container together as one ISO 20ft container for easy shipping.
If you have cargoes in China, you could load its into our container and exported them together to save sea freight.
Certificate
Our Company
ACE Container & Parts Co., Ltd.
We are very famous and professional Container and Parts supplier in China, and have been container line for over 10 years, also have exported our product to 55 countries by the end of 2015, including Janpan, Korea, Southeast Asia, North and South America, Affrica etc.
With the increment of requirement for offshore equipment, ACE Contianer & Parts also arrange offshore equipment production for Oil and Gas platform as per you customized requirement, all of them are design as per DNV2.7-1 & EN12079 standard.
Main Products: ISO Dry Container, Reefer Container, Offshore Equipment, All kinds of Container Parts and Customized Special Contianer
FAQ
1. Are your container meet with ISO requirement?
Yes, our container are BV, GL, DNV approval and meet with ISO requirement
2. Can we choose the cooler system?
Sure, you could choose one from Daikin / Carrier / Thermoking
3. Can i have load my goods in China?
Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requiremet on cargo package and Loading/unloading.
4. Do you supply generator ?
Yes, we have.
5. Do you supply reefer container parts?
Yes, we provide parts for repair the container body. For cooler system, the supplier(Daikin, Carrier, Thermoking) provide global service.
