ISO Tank Container Spare Parts 3 inch 45 Degrees Bottom Discharge and Sample Valve with Pressure Gauge 1.4''BSP 0-40 bar
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $699.00/sets 1-1 sets |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Tank Container | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 26000L | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 26000L | Name: | Iso Tank Container Parts |
| Material: | SS316 | Manhole: | 500mm |
| Air Inlet Ball Valve: | 1.5'' BSP | Safety Relief Valve: | DN65 2.5''BSP |
| Temperature Gauge: | -40°C To +160°C / -40°F To 320°F. | Pressure Gauge: | 1.4''BSP 0-40 Bar |
| Documents Holder: | Plastic | ||
Product Description
Hot Sale Products
Product Description
ISO Tank Container Spare Parts
We also can supply all kinds of tank container parts and fittings, which is also high quality with certification, suitable for ISO Tank Container T11 T14 T50

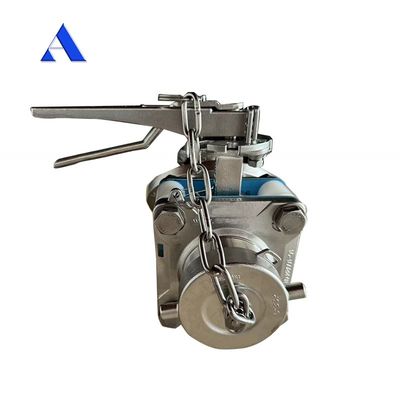

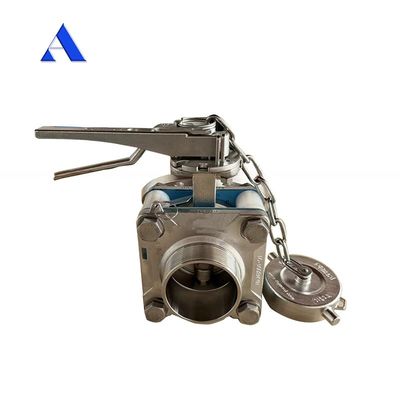

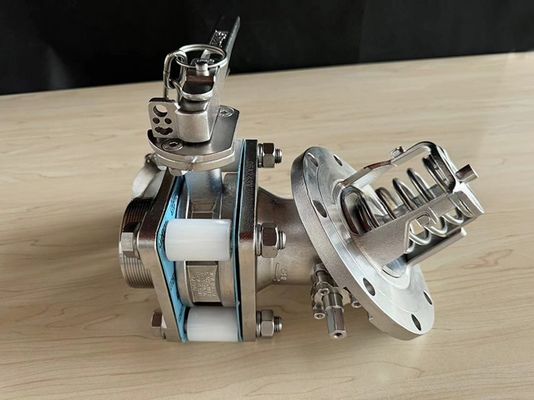

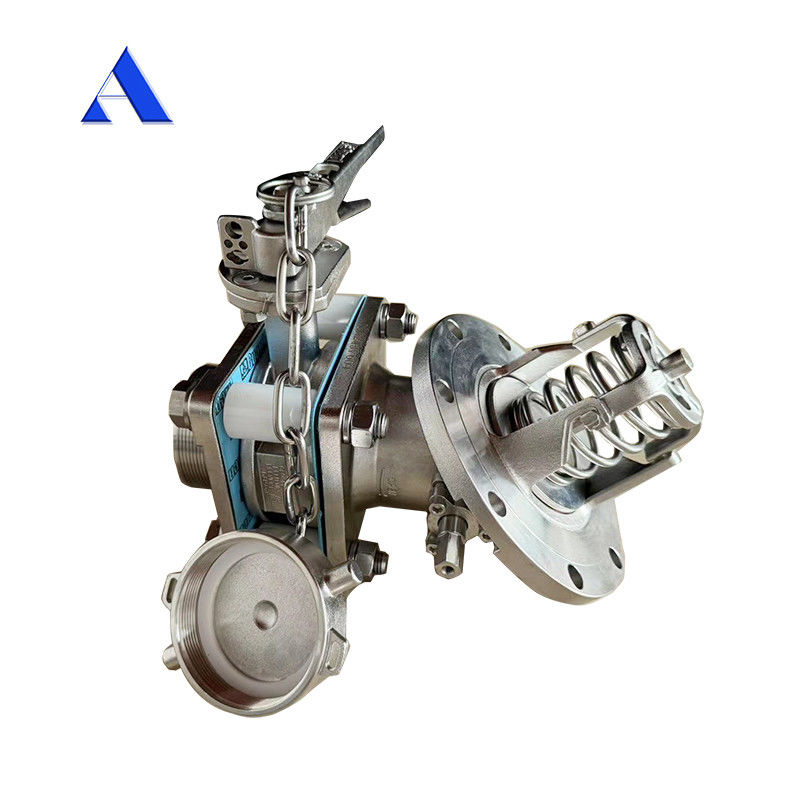

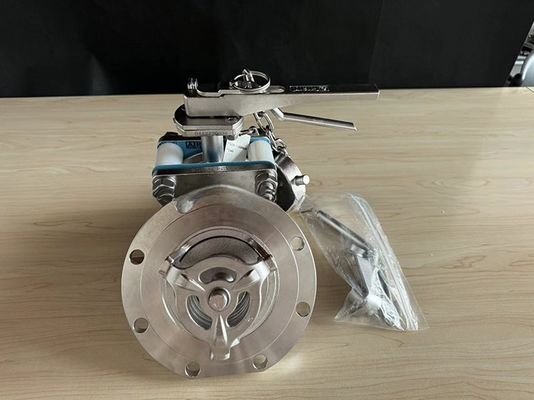

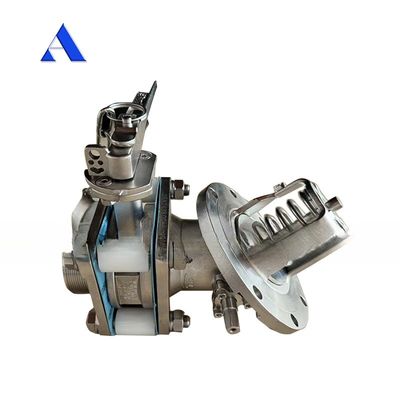

3” 45° Bottom Discharge with Sample Valve-3”45° Foot Valve+3″ Clamped Butterfly Valve+3″ DC Outlet+1/2 Two Pieces Ball Valve and
cap.Flange drilled 8xф14x PCD178.
Option-Shutting-off device for emergency and fusible link.
cap.Flange drilled 8xф14x PCD178.
Option-Shutting-off device for emergency and fusible link.
Product Spefications
Material | SS316/304 |
Weight | About 4.0 kgs |
Nominated Dimention | 3'' |
Test Pressure | 9 bar |
Design Pressure | 6 bar |
Applicable Temperature | -40 tl +200 C |
Packing | one pcs into one carton box |
Packing & Delivery
Container Spare Parts Packing and Loading:
All container spare parts are packed into pallet and pallet box.
Corner Casting: Exported Pallet. 100 pcs into one pallet, 20 pallet into one 20ft container.
Door Lock Parts: Steel Pallet, 200 sets into one pallet.
Plywood: 30 pcs into one pallet, 8 pallets into one 20ft container.
For other container steel structure parts, you could order them in mixture, usually 25 tons of parts loaded into one 20ft container.
