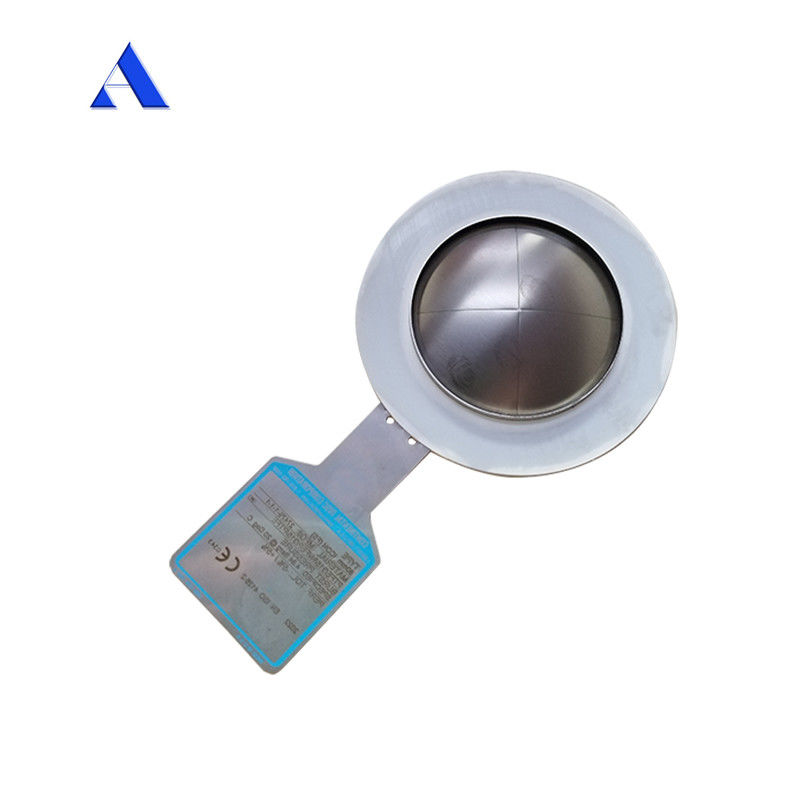

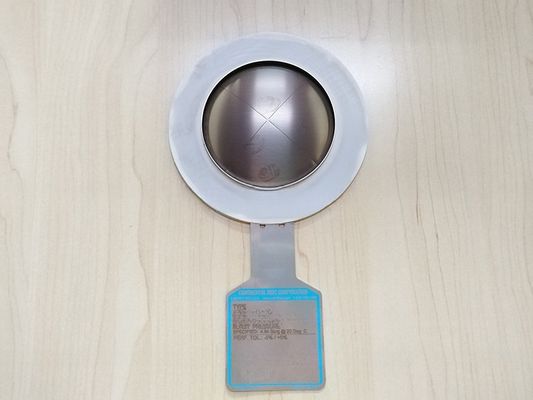

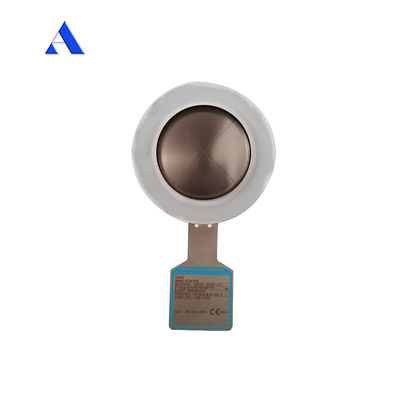

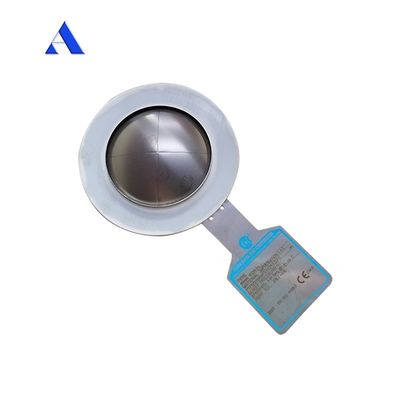

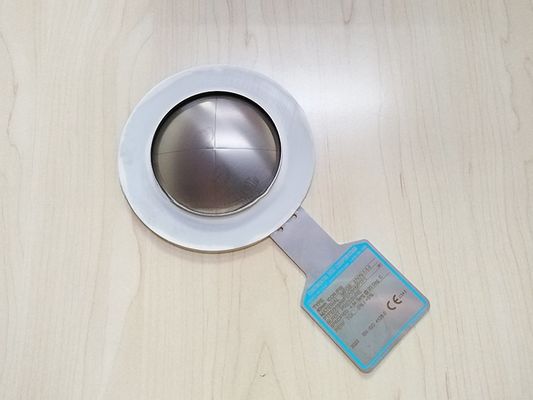

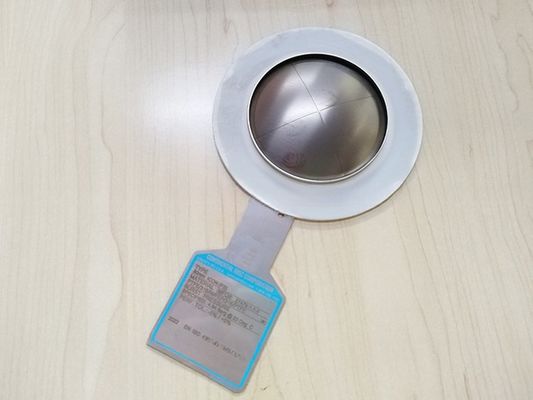

Customizable Flat Bursting Rupture Disc for Oil Gas Industry Nominal Diameter from 2" to 40" DN 50 to 1000 316L Material
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $80.00/pieces 10-19 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Material: | 316L, Inconel, Hastelloy | Size: | Nominal Diameter From 2" To 40" (DN 50 To 1000) |
|---|---|---|---|
| Temperature Range: | From -196° To 265°C ( 77,15 To 538,15 K) | ||
Product Description
Hot Sale Products
Product Description
Full range of Spare Parts for Tank Container
Low Cost
Saving land and sea freight, lower cost when long-term use.
Convenient and fast
Fast and Convenient for Loading and unloading, washing. Door to door by land transportation, railway, sea transportation.
Safety and Eco-Friendly
No leak or pollute the environment, and No pollute the goods themselves. The safest way to transport chemicals and food internationally recognized.
Product Datasheet
Description | Specialized in tailor made forward acting rupture disc |
Media | Suitable for Gas, Liquid, Vapour, Steam and Dust |
Material | 316L, Inconel, Hastelloy, Monel, Titanium and other exotic material |
Size (DN / NPS) | Nominal Diameter from 2" to 40" (DN 50 to 1000) |
Rupture / Burst Pressure | From 0,05 to 5 Barg (0,72 to 72,52 Psig) |
Temperature Range | from -196° to 265°C ( 77,15 to 538,15 K) |
Suitable with Safety Valves | Available installation in combination with safety valves |
Alarm Sensor | On request Burst Sensor, type IRA and IRE |
Company Profile
Packing & Shipment
Contact ACE
Want to Know more details about this product
