Offshore Oil and Gas Platform Approved CSC Certified DNV 2.7-1 Standard 10ft Offshore Tank Container with CSC Certification
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | DNV2.7-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $25,000.00/pieces 2-3 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Offshore Container | Length (feet): | 10ft |
|---|---|---|---|
| Capacity: | 8100L | External Dimensions(l X W X H)(mm): | 2991 X 2438 X 2591mm |
| Internal Dimensions(l X W X H)(mm): | 7.6 To 8.2 Cbm | Design Standard: | DNV 2.7-1 / ASME Standard |
| Color/logo: | Optional | Material: | Corten-A |
| CSC Certified: | Yes | Approval Area: | Offshore Oil And Gas Platform |
| Sling Angle: | 45 Degree | Vessel Material: | SUS316L |
Product Description
Hot Sale Products
Product Description
We will provide full set of Offshore Container Documents
1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
2) General Arrangement Drawing
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.

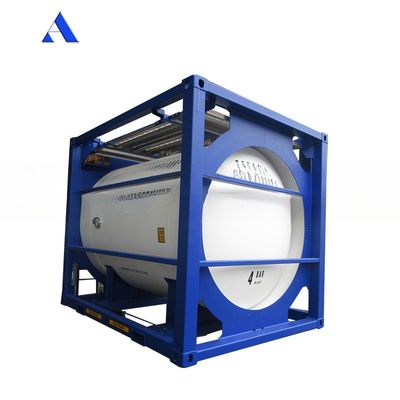

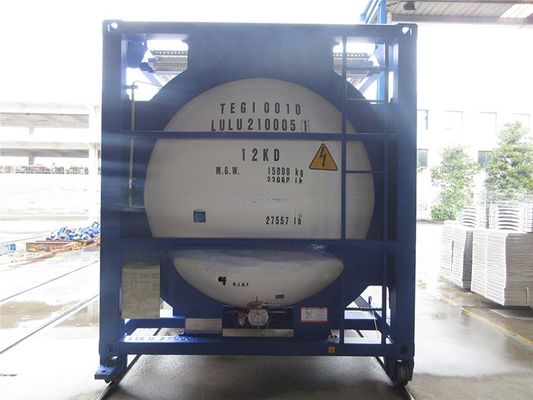

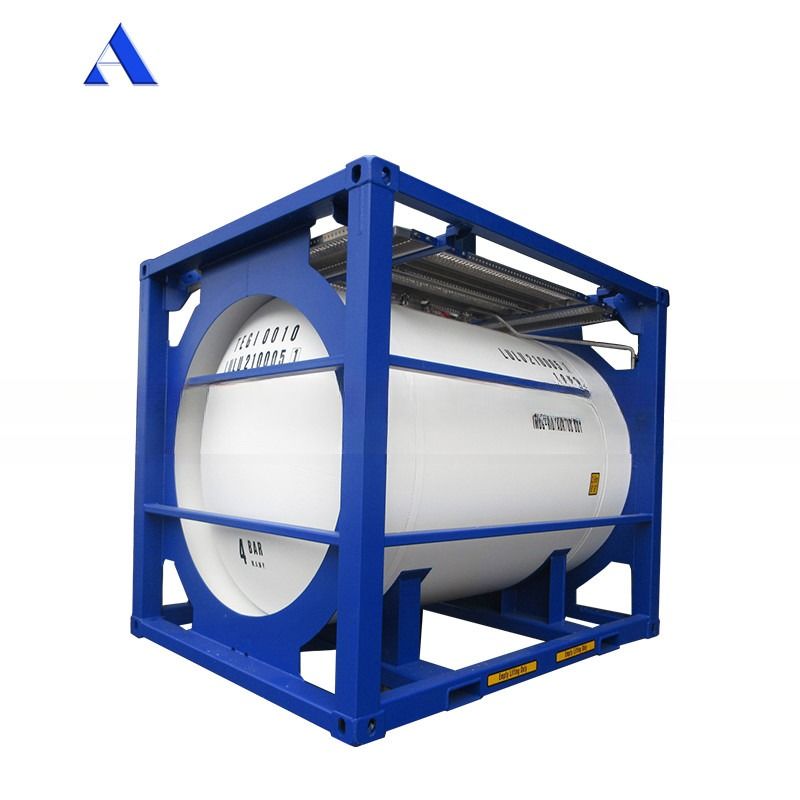

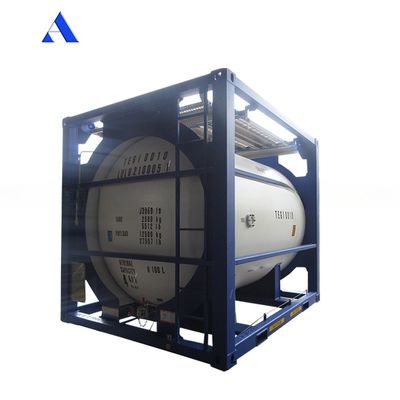

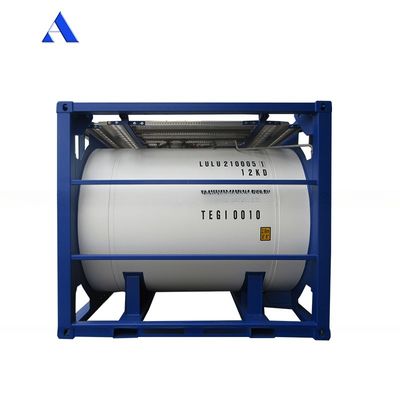

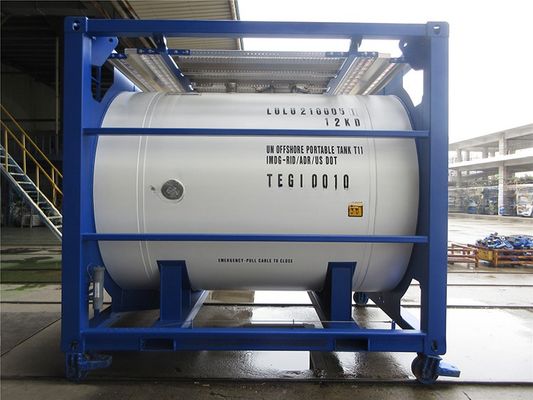

10ft Offshore Tank Container
Structure Material: JIS SPA-H/ GB Q345D,E36
Corner Casting: SCW480Shell:SS304
Corner Casting: SCW480Shell:SS304
Welding Technique: Automatic TIG welding ( Tungsten Inert Gas arc Welding ).
Surface treatment: Painted or Galvanized
Surface treatment: Painted or Galvanized
Meeting DNV 2.7-1 & ISO10855 standard.
Classification Society: BV, LR, DNV certified
Design Temperature: -20°c
Classification Society: BV, LR, DNV certified
Design Temperature: -20°c
Product Datasheet
Type | 8100L 10ft Offshore Tank Container | |||
External Size | 2991 x 2438 x 2591 | MM | ||
Capcity | 7600 - 8200 | L | ||
Maximum Gross Weight | 15000 | KGS | ||
Tare Weight | 2500 | KGS | ||
Maximum Payload | 12500 | KGS | ||
Design Pressure | 4 | Bar | ||
Tesing Pressure | 6 | Bar | ||
Lifting Angle | 45 | degree | ||
Frame Material | SPA-H,Q345D | |||
Tank Shell | SS316L | |||
Stacking | No stacking | |||
Finish: | Customized color | |||
Special Features: | ||||
1. Approval by Main Classification Society: LR | ||||
2. Complies With DNV2.7-1:2006 and ISO10855, IMDG,ASME | ||||
3. Air Inlet: 3/4”(DN 20) flange ball valve fitted with a ¾” stainless steel pipe leading to the left-hand rear corner post and complete with a ¾” ball valve with BSP threaded end and stainless steel cap | ||||
4. Safety Relief Assembly: 1-off 2½ ” BSP Super maxi High flow relive, with flameproof gauze. Pressure/vacuum model set at +4.4/-0.21bar | ||||
5. Tank Thickness: 4.4mm | ||||
6. Manhole: 500mm EPDM Rubber | ||||
7. Outlet: A Highlight DN80 45° foot valve reduced to a 2” ball valve and terminating with a 2” BSP threaded end with cap | ||||
8. Level Gauge: Options | ||||
Packing & Delivery
DNV 2.7-1 offshore containers has no package requirement 2x10 pcs of tanks are connected togeteher as one 20ft container.
Our Advantages
FAQ
1. Are your offshore tank container brand new?
Yes, we only do brand new offshore container
2 . Can choose the color and logo?
Sure, we can do it as per your requirement.
3. Are there any certification and testing report for dnv offshore tank container?
Yes, there will be DNV2.7-1 certification issued by LR/BV, also have other testing report and certification. For example, NDT testing report, Size Testing, Loading inspection, Mill Certification, Welder Certification etc.
4. How to arrange the shipping?
2x10ft offshore tank container connected together as one 20ft container.
5. How about the production date?
It's about 55 days after getting your deposit.
Yes, we only do brand new offshore container
2 . Can choose the color and logo?
Sure, we can do it as per your requirement.
3. Are there any certification and testing report for dnv offshore tank container?
Yes, there will be DNV2.7-1 certification issued by LR/BV, also have other testing report and certification. For example, NDT testing report, Size Testing, Loading inspection, Mill Certification, Welder Certification etc.
4. How to arrange the shipping?
2x10ft offshore tank container connected together as one 20ft container.
5. How about the production date?
It's about 55 days after getting your deposit.
6. Do you also supply offshore tank in other capacity?
Yes, we also can do 2900L, 4500L，8200L and others as per your requirement.
