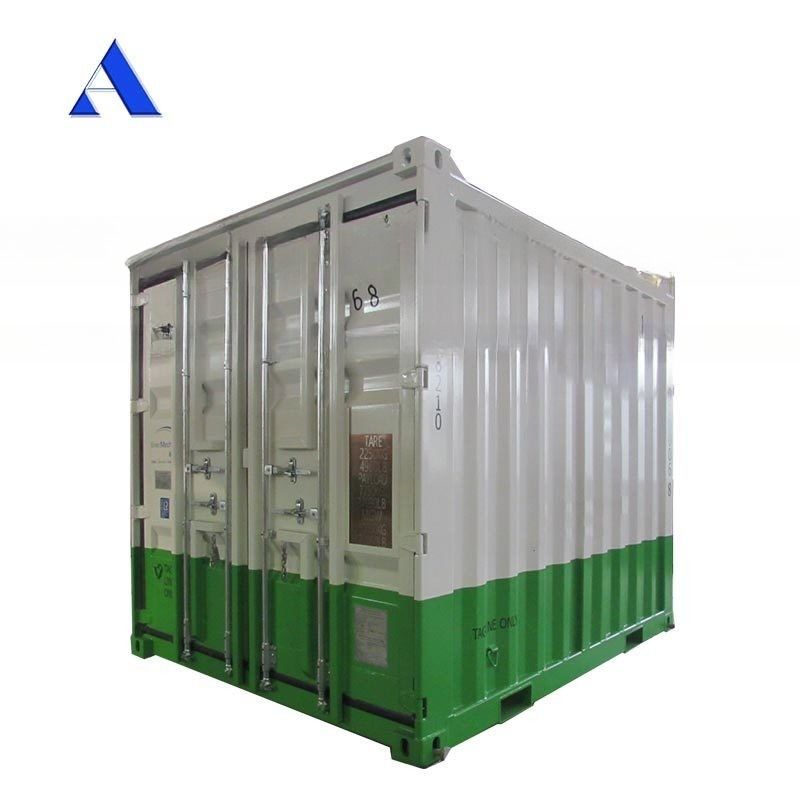

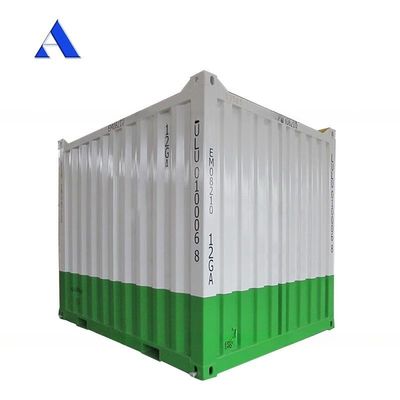

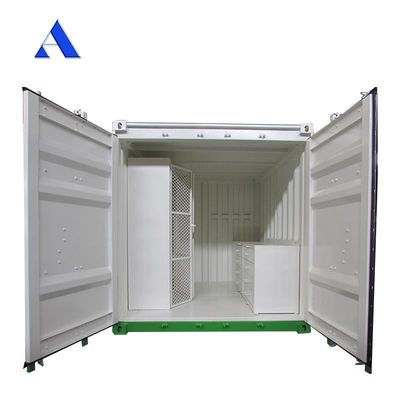

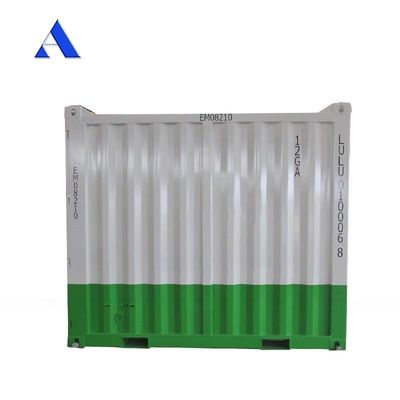

• 10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm
  • 10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm
  • 10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm
  • 10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm

10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm

Product Details:

Place of Origin: Tianjin, China
Brand Name: ACE

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: $12,000.00/pieces 1-1 pieces
Delivery Time: within 30 days
Get Best Price Contact Now

Detail Information
Type: Offshore Workshop Container Length (feet): 10ft
Capacity: 13.6 Cbm External Dimensions(l X W X H)(mm): 2991 X 2438 X 2591 Mm
Internal Dimensions(l X W X H)(mm): 2760 X 2220 X 2250 Mm Standard: DNV 2.7-1 / ISO10855
Payload: 7750 Kgs Padeye: 4 Pcs
Sling: Optional Max Lifting Angle: 45°
Color: Optional

Product Description

10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 0
Hot Sale Products
Product Description
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 1
We will provide full set of Offshore Container Documents
1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
2) General Arrangement Drawing
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.
20ft Offshore Workshop
Structure Material: JIS SPA-H/ GB Q345D,E36
Corner Casting: SCW480
Welding Technique: Automatic TIG welding ( Tungsten Inert Gas arc Welding ).
Surface treatment: Painted or Galvanized
Special for transportation and storage of offshore freight.
Meeting DNV 2.7-1 & EN12079 standard.
Classification Society: BV, LR, DNV certified
Design Temperature: -20°c
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 2
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 3
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 4
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 5
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 6
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 7
Product Datasheet
Specifications for 10ft offshore Container:
Dimensions (L x W x H)
External
10 x 8 x 8.5
FT
2.991. x 2.438 x 2.591
M
Internal
2.760 x 2.220 x 2.250
M
Inside Cubic Capacity
13.6
CBM
Maximum Gross Weight
10000
KG
Tare Weight
2250
KG
Maximum Payload
7750
KG
Lifting Angle
45
°C
SPECIAL FEATURES:
1. Approval by Main Classification Society: BV / DNV / LR
2. Complies With DNV2.7-1:2006 and EN12079:2006 Standard
3. Surface Treatment: High Anti-Corrosion Painting or Hot Deep Galvanized
4. Design Temperature: - 20 °C (Also provide - 40 °C Design)
Certifications
We will provide full set of Offshore Container Documents
1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
2) General Arrangement Drawing
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.

10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 8
Our Company
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 9
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 10
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 11
Customer Photos
10ft DNV 2.7-1 Standard Offshore Container Workshop with External Dimensions 2991 x 2438 x 2591 mm 12
FAQ
Q: Are your container with DNV 2.7-1 Certificate?
A: Yes, all offshore containers are with DNV2.7-1 Certificate.

Q: Are your container brand new?
A: Yes, we produce it after confirming your order.

Q: What is MOQ?
A: One pc.

Q: Can you make special size?
A: Yes, we can make it as per your requirement.
