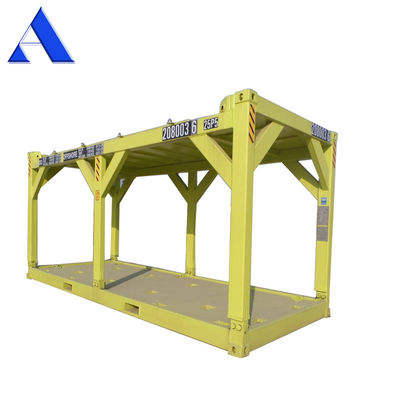

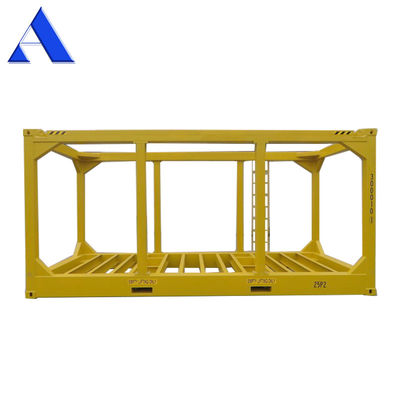

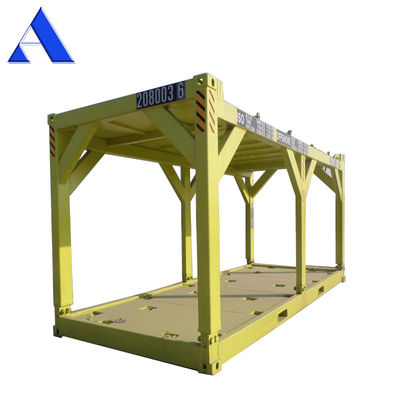

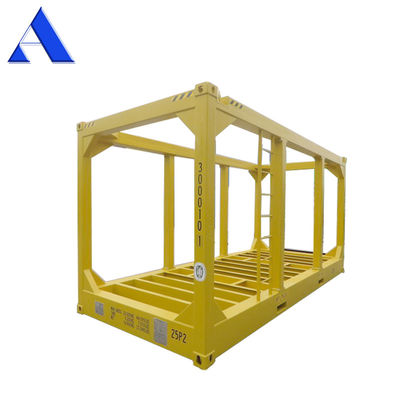

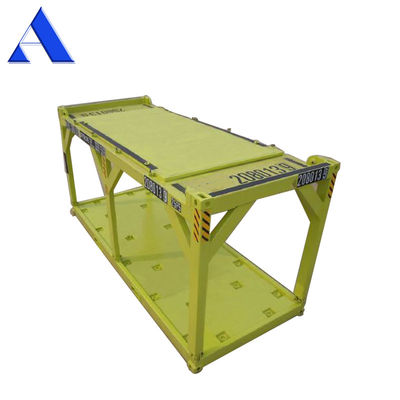

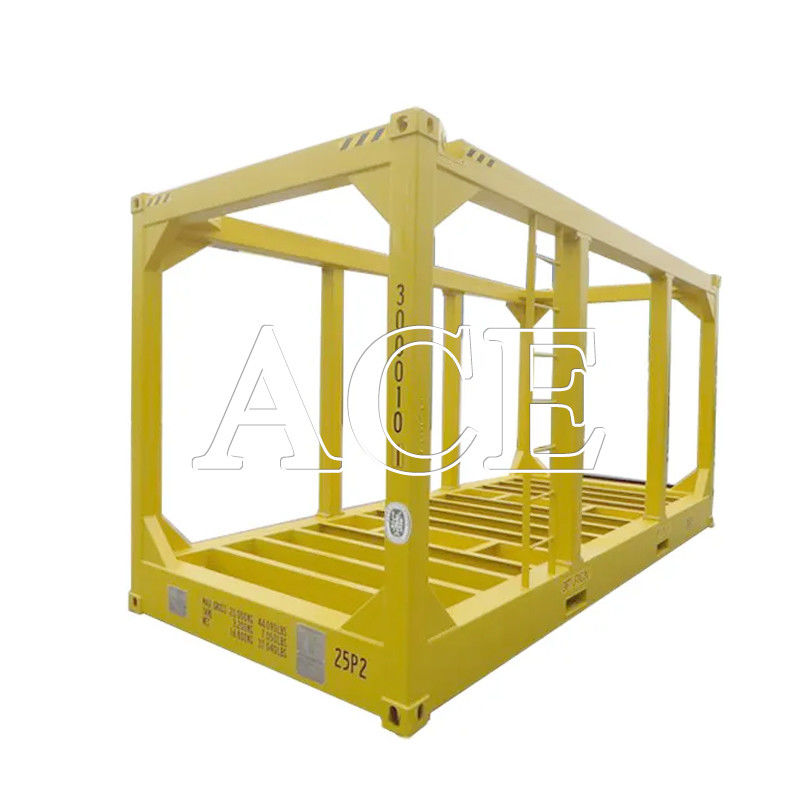

Steel Floor DNV 2.7-1 20ft High Cube Offshore Lifting Frame Capacity 30.8 CBM Gas and Oil Drilling
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | BV or LR certified |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $11,300.00/units 1-1 units |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Offshore Frame Containers | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 30.8 CBM | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2896 Mm |
| Internal Dimensions(l X W X H)(mm): | 5812 X 2130 X 2492 Mm | Color: | Customized |
| Material: | Corten Steel | Sling: | 4 Legs/5 Legs |
| MOQ: | 1 Unit | Floor: | Steel Floor |
| Application: | Transportation/Storage/Maintenence | Keyword: | Custom Size Offshore Lifting Frame Container |
Product Description
Hot Sale Products
Product Datasheet
|
Specifications
|
DNV 2.7-1 20ft HC Offshore Frame Container
|
|
|
|
||||
|
External Dimensions(L x W x H)
|
6.058 x 2.438 x 2.896 m
|
|
|
|
||||
|
Inside Cubic Capacity
|
30.8 CBM
|
|
|
|
||||
|
Maximum Cargo Weight
|
16800 KG
|
|
|
|
||||
|
Tare Weight
|
3200 KG
|
|
|
|
||||
|
Lifting Angle
|
45 degree
|
|
|
|
||||
|
Customizations
|
Color, hot dip galvanizing
|
|
|
|
||||
|
1. Approval by Main Classification Society: BV / LR
2. Complies With DNV 2.7-1 and ISO18055 Standard 3. Surface Treatment: High Anti-Corrosion Painting or Hot Deep Galvanized 4. Design Temperature: - 20 ℃ (Also provide - 40 ℃ Design) |
|
|
|
|
||||
Product Description
Quality Control & Certificate & Warranty
1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
2) General Arrangement Drawing.
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.
2) General Arrangement Drawing.
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.
DNV 2.7-1 Standard 20ft HC Offshore Lifting Frame
DNV2.7-1DNV2.7-2
DNV2.7-3
EN12079
A60/H60 Standard
DNV2.7-3
EN12079
A60/H60 Standard
Main Post and Rail: Square
Tube Floor: Steel
Roof: Non Slip
Lifting: Sling via Pad Eyes
Higher Grade Anti-corrosive Paint
Roof: Non Slip
Lifting: Sling via Pad Eyes
Higher Grade Anti-corrosive Paint
Main Structure Materials
Welding & Welder Qualification
2 / 4 Points Lifting
Quick Drop testing
Dimensions & Surface Treatment
2 / 4 Points Lifting
Quick Drop testing
Dimensions & Surface Treatment
