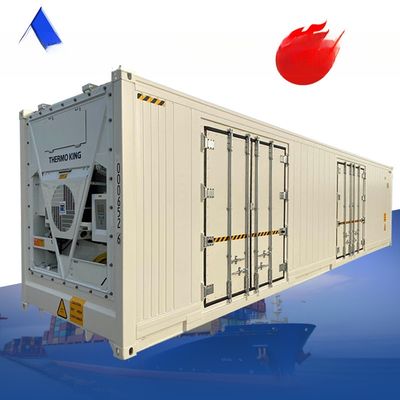

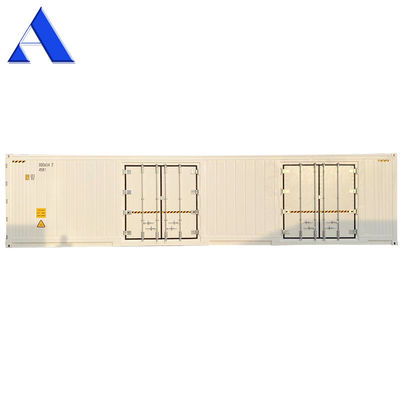

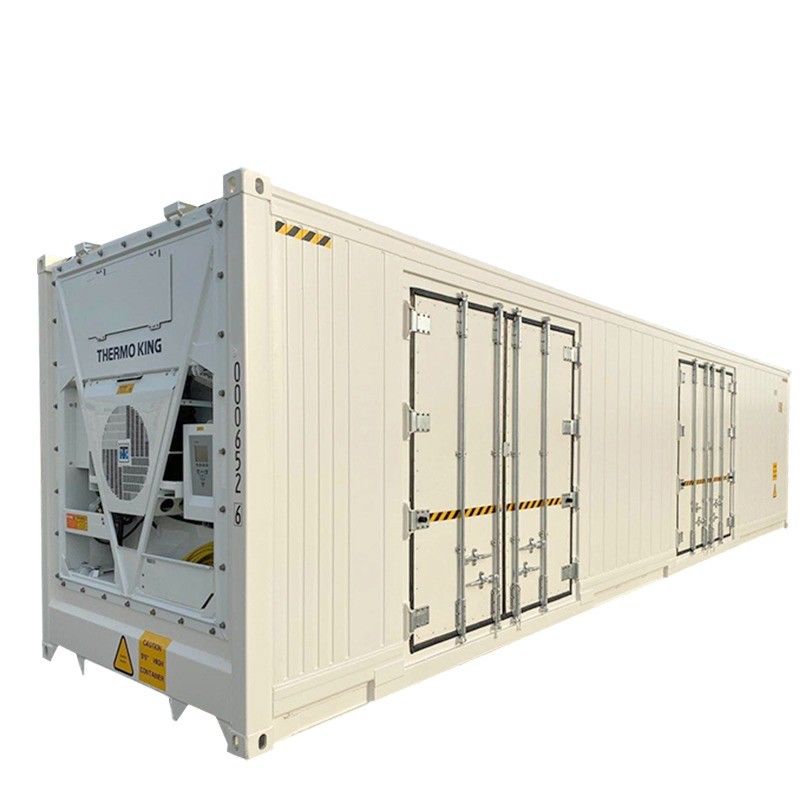

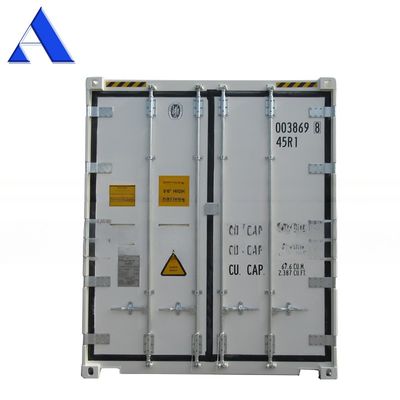

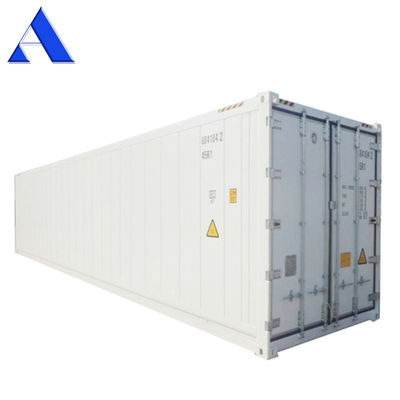

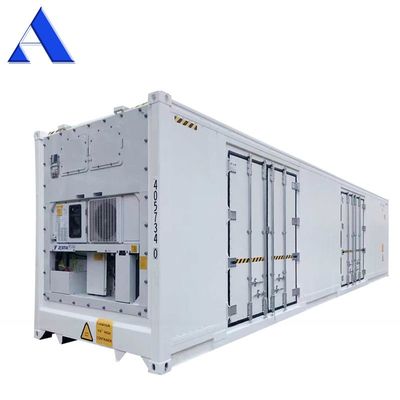

12192 x 2438 x 2896 mm 2-Door Open Side Refrigerator 40 Feet Length Reefer Container for Fresh Goods Transportation
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | BV GL ABS CCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $18,000.00-21,500.00/units |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Reefer Container | Length (feet): | 40' |
|---|---|---|---|
| Capacity: | 67.6 Cbm | External Dimensions(l X W X H)(mm): | 12192 X 2438 X 2896 Mm |
| Internal Dimensions(l X W X H)(mm): | 11590 X 2267 X 2558 Mm | Material: | Corten Steel |
| Color/logo: | Customized | Floor: | Aluminium T-Bar Floor |
| Cooler Brand: | Daikin, Thermo King, Carrier | Function: | Transporting Fresh Goods |
Product Description
Hot Products
Detailed Images
About Reefer Container
Reefer container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or below deck) throughout the world and will range from -30°C (-22F Deg) to +80°C (176F Deg) without effect on the strength of basic structure. A mechanical refrigeration unit of a “one piece picture frame type” will be fitted to the front end frame. The container is designed with a refrigeration unit to maintain the inside space temperature at -18°C in ambient temperature up to 38°C.
3 Brand Cooling Unit for Choose
Thermo King (US)
Cooling gas: R134a
400 to 500 Vac 3ph 60 Hz
360 to 460 Vac 3ph 50 Hz
Temperature Range:
-40℃ (-40F) to 30℃ (86F).
Carrier(US)
Cooling gas: R134a
380/460 VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30℃ (-22F) to 30℃ (86F).
Daikin (Japan)
Cooling gas: R134a
380/440VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30~50°C (-22~122°F)
40ft HC Reefer Container with 2 Side Doors
TK Compressor, R404A gas
Power Cable 18mm
Aluminum T Floor
Refer Container Cable Plug
CSC Plate
Thermo King MP4000 Controler
Product Datasheet
Specifications | ||||||
40ft refrigerator container | External | 12192 x 2438 x 2896 | MM | |||
Internal | 11590 x 2267 x 2558 | MM | ||||
Door Opening | 2294 x 2567 | MM | ||||
Side Door Opening | 2232 x 2301 | MM | ||||
Inside Cubic Capacity | 67.6 | CBM | ||||
Maximum Gross Weight | 34000 | KG | ||||
Tare Weight | 4560 | KG | ||||
Maximum Payload | 29440 | KG | ||||
Allowable Stacking Weight | 216000 | KG | ||||
Cooling Capacity /W | 6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ | |||||
Main Circuit | 3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | |||||
Heat Leakage | 23 | |||||
Air Leakage | 5 | |||||
Our Advantages
Packing & Delivery
1. There is no packaging requriement for the reefer contianer.
We also can help you to transport our container to anyplace you want in china, and also can export it to your country.
2. We have over 14 years experience in container service, so exporting containers is easy for us, and "one way" is also ok!
