12192 x 2438 x 2896mm Thermo King Cooling Refrigerator 40ft High Cube Reefer Container Get Yours Today for Transportation
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | BV GL ABS CCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $18,000.00/units 1-1 units |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Reefer Container | Length (feet): | 40' |
|---|---|---|---|
| Capacity: | 67.9 CBM | External Dimensions(l X W X H)(mm): | 12192 X 2438 X 2896mm |
| Internal Dimensions(l X W X H)(mm): | 12032 X 2352 X 2698mm | Material: | Corten Steel |
| Color: | Customized | Port: | Tianjin Shanghai Ningbo Qingdao Port |
| Floor: | Aluminium T-Bar Floor | Cooler Brand: | Daikin, Thermo King, Carrier |
| Application: | Transportation | Function: | Transporting Fresh Goods |
Product Description
2.Temperature range:-30℃ to 30℃
3.Dual temperature reefer container can be available
5. Main circuit: 3 Phase. 60HZ: AC440, 460V
50HZ: 380, 400, 415V
6. Cooler brand: Daikin, Thermo King, Carrier
Thermo King(MAGNUM PLUS)
Cooling gas: R134a
Temperature Range:
-40℃ (-40F) to 30℃ (86F).
Carrier(PRIME LINE)
Cooling gas: R134a
380/460 VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30℃ (-22F) to 30℃ (86F).
Daikin(LXE10E)
Cooling gas: R134a
380/440VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30~50°C (-22~122°F)

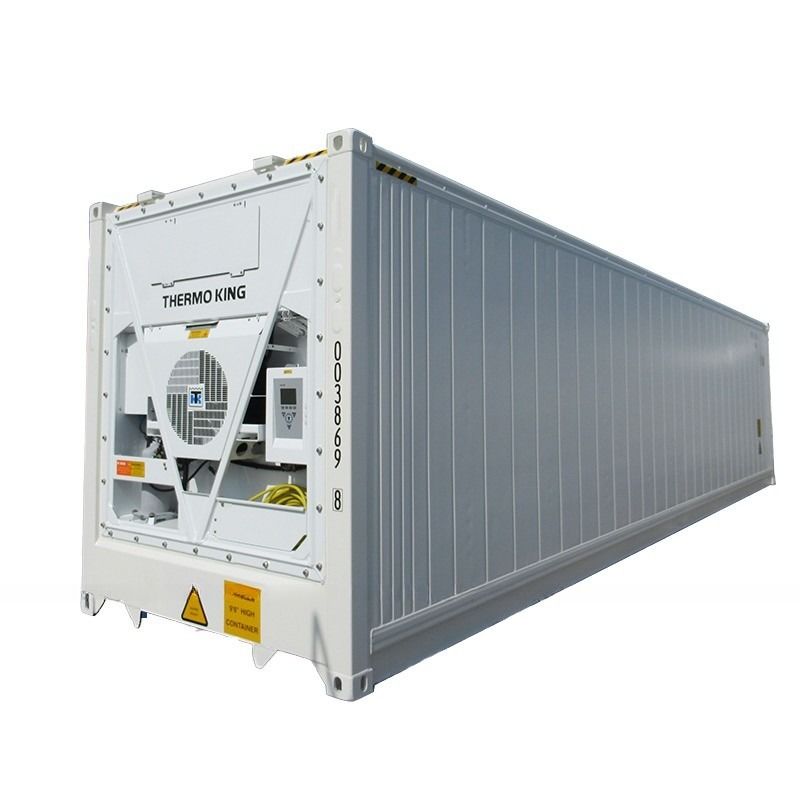

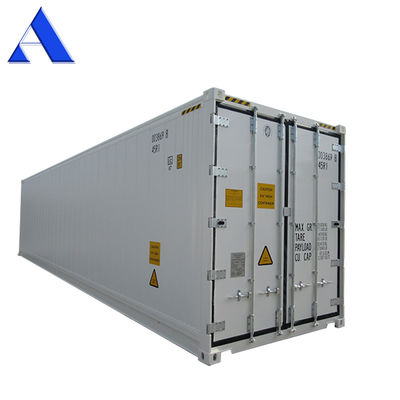

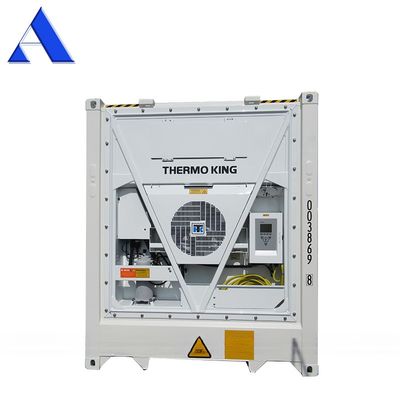

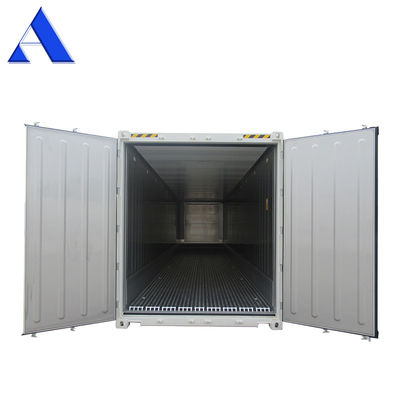

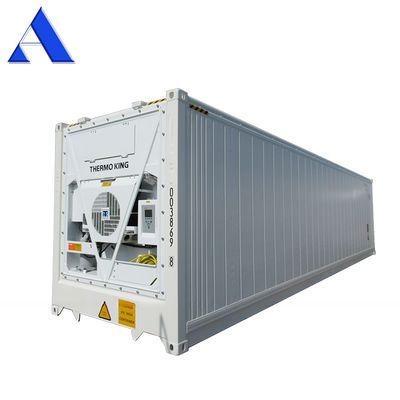

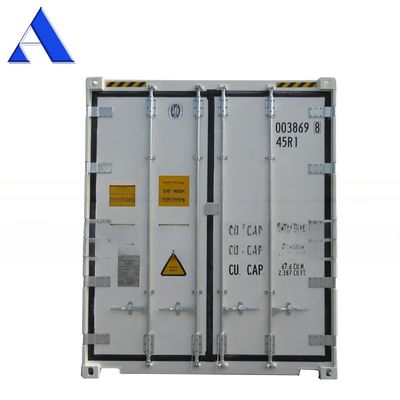

40ft HC reefer containers are very popular in Europe, Africa and Asia, etc.The pictures are our latest orders.
40ft Reefer Container Specifications | ||||||
External | 12192 x 2438 x 2896 | mm | ||||
Internal | 11590 x 2294 x 2554 | mm | ||||
Door Opening(W x H) | 2290 x 2569 | mm | ||||
Inside Cubic Capacity | 67.9 | CBM | ||||
Maximum Gross Weight | 34000 | KG | ||||
Tare Weight | 4560 | KG | ||||
Maximum Payload | 29440 | KG | ||||
Allowable Stacking Weight | 216000 | KG | ||||
Cooling Capacity /W | 6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ | |||||
Main Circuit | 3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | |||||
Heat Leakage | 23 | |||||
Air Leakage | 5 | |||||
Warranty | Container Body | 1 Year | ||||
Cooler Units | 1 Year | |||||
Compressor | 3 Years | |||||
Marks | 5 Years | |||||
1. Can we choose the cooler system?
Sure, you could choose one from Daikin / Carrier / Thermoking
2. Do you supply generator ?
Yes, we have.
3. Do you supply reefer container parts?
Yes, we provide parts to repair the container body. For cooler system, the supplier(Daikin, Carrier, Thermo king)provide global service.
4. Can you deliver to our supplier's factory?
Sure, but there will be extra land freight.
5. Are your container meet with ISO requirement?
Yes, our container is BV, GL, DNV approval and meet with ISO requirement.
