Internal Dimensions l x W x H mm 5456 x 2290 x 2276 mm 6m Length 28cbm 20ft Refrigerated Reefer Container Cold Room Storage
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $14,500.00/pieces 1-1 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Reefer Container | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 31.2 CUM | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 5456 X 2290 X 2276 Mm | Ourside: | Corten-A |
| Bottom: | Aluminum | Floor: | T-Bar |
| Refrigerant: | R134a/R404A | Insulating Layer: | Polyurethane |
| Storage Rack: | No Problem | Quality Control: | ABS / BV / GL / DNV |
| Cooler Brand: | Daikin / Thermo King / Carrier | Application: | Transport/Storage |
Product Description
Hot Sale Products
Product Details

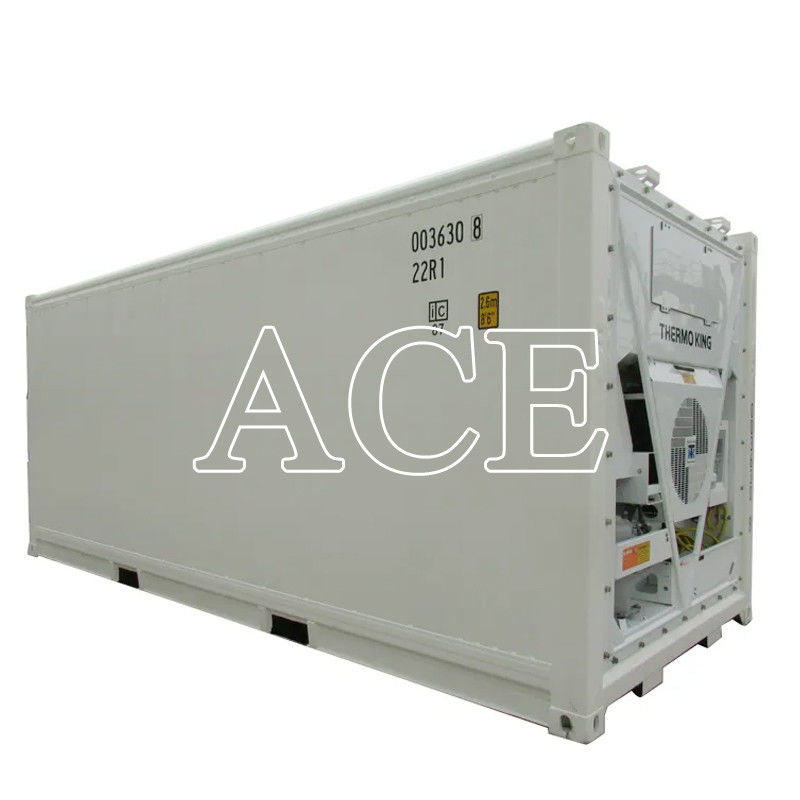

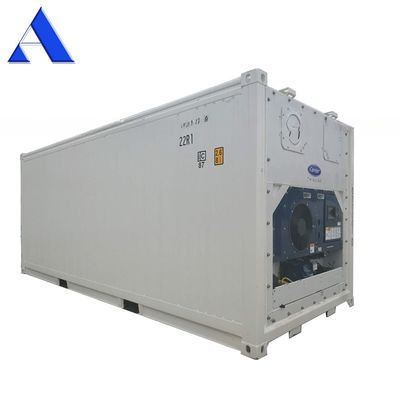

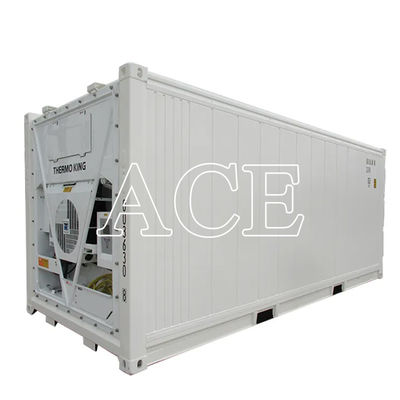

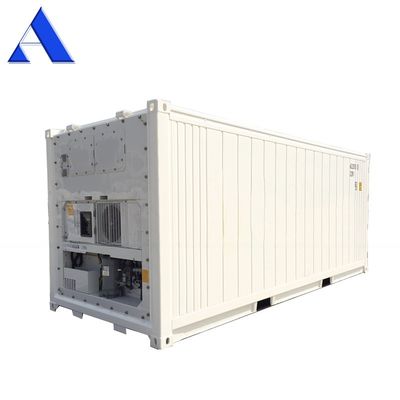

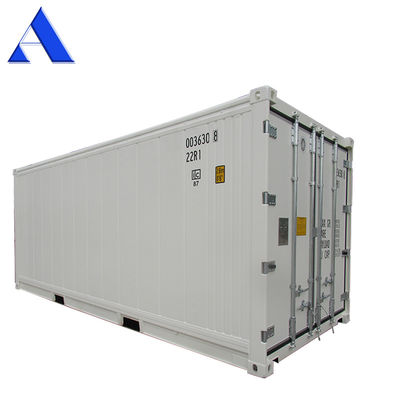

20ft Reefer Container
Reefer container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or bellow deck) throughout the world and will range from -30°C (-22F Deg) to +80°C (176F Deg) without effect on the strength of basic structure. A mechanical refrigeration unit of a “one piece picture frame type” will be fitted to the front end frame. The container is designed with a refrigeration unit to maintain the inside space temperature at -18°C in ambient temperature up to 38°C.

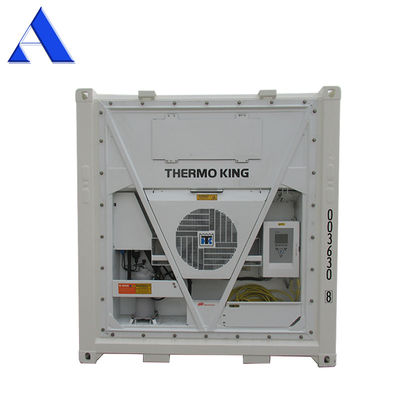

3 Brand Cooling Unit for Choose
Thermo King (US)
Cooling gas: R134a
400 to 500 Vac 3ph 60 Hz
360 to 460 Vac 3ph 50 Hz
Temperature Range:
-40℃ (-40F) to 30℃ (86F).
Carrier(US)
Cooling gas: R134a
380/460 VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30℃ (-22F) to 30℃ (86F).
Daikin (Japan)
Cooling gas: R134a
380/440VAC 3ph 50/60Hz
24 VAC control circuit
Temperature Range:
-30~50°C (-22~122°F)
Brand New 20ft Reefer Container
TK Compressor, R404A gas
Power Cable 18mm
Aluminum T Floor
Refer Container Cable Plug
CSC Plate
Thermo King MP4000 Controler
Product Datasheet
Specification of 20ft thermo king reefer container | ||
External Dimension | 6058 x 2438 x 2591 mm | |
Internal Dimension | 5468 x 2294 x 2273 mm | |
Door Opening | 2290 x 2264 mm | |
Inside Cubic Capacity | 28.4 cbm | |
Maximum Gross Weight | 30480 kgs | |
Tare Weight | 2900 kgs | |
Maximum Payload | 27580 kgs | |
Allowable Stacking Weight/1.8G | 216000 kgs | |
Cooling Capacity/W | 6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ | |
Main Circuit | 3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | |
Consumption/KW | MAX 13.5 60HZ | |
Our Advantages
FAQ
1. Can you supply ONE WAY survice for 20ft reefer container to my country?
Yes, we can do one way to the main port in the wold, kindly contact us for your detail requirement.
2 Can we choose the cooler system?
Sure, you could choose one from Daikin / Carrier / Thermo king.
3 Can i load my goods in China?
Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requirement on cargo package and Loading/unloading.
4 Do you supply generator?
Yes, we have. More details please contact us.
5. What is the payment terms that you can accept?
Generally T/T 30% deposit before producation and 70% before shipment.
Other payment terms please contact me for more details.
Yes, we can do one way to the main port in the wold, kindly contact us for your detail requirement.
2 Can we choose the cooler system?
Sure, you could choose one from Daikin / Carrier / Thermo king.
3 Can i load my goods in China?
Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requirement on cargo package and Loading/unloading.
4 Do you supply generator?
Yes, we have. More details please contact us.
5. What is the payment terms that you can accept?
Generally T/T 30% deposit before producation and 70% before shipment.
Other payment terms please contact me for more details.
