20ft DNV 2.7-1 Standard Dual Temperature Offshore Reefer Container Frozen Fresh 2 Rooms Main Circuit 3 Phase Competitive
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $33,000.00/units 1-1 units |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Reefer Container | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 28.4 CBM | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 5468 X 2294 X 2273 Mm | Material: | Corten-A |
| Inside Cubic Capacity: | 28.4 CBM | Main Circuit: | 3 Phase, 460V/380,60/50HZ |
| Cooler: | Daikin, Thermo King, Carrier | Air Leakage: | Lower Than 10 |
| Maximum Gross Weight (KG): | 34000 KGS | Tare Weight (KG): | 3910 KGS |
| Max Payload: | 29550 KGS | ||
Product Description
Hot Sale Products
Product Descriptions

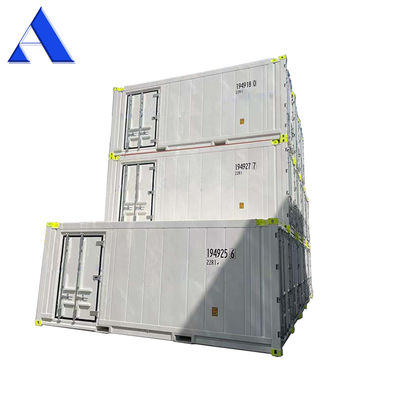

2 Rooms Dual Temperature 20ft Offshore Reefer Container

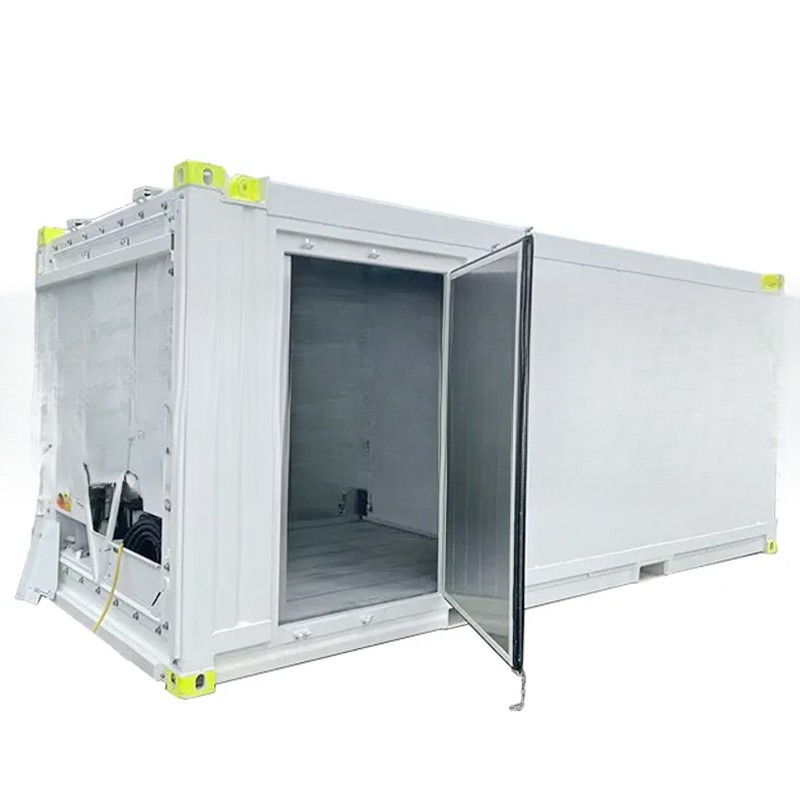

●Quantity and location of the side opening door could be customized
●Temperature: Freezer: -18℃, Chiller: +5 ℃

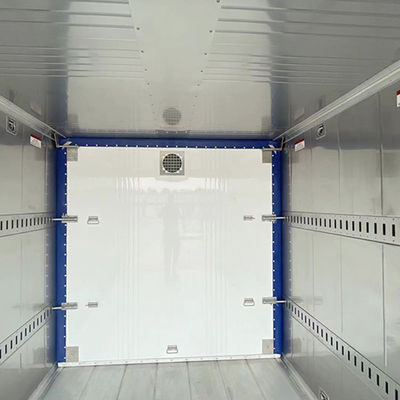

●Inside Partition Board is movable
●Logo and color can be customized
●Power: 380/460, 3phase, 50/60Hz

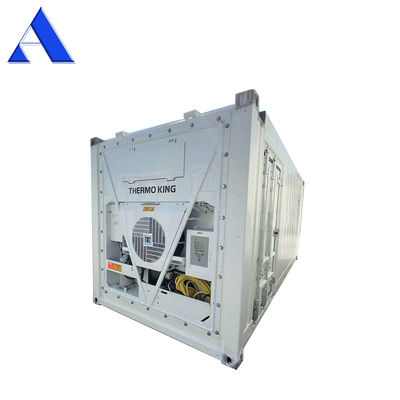

●Cooler brand: Daikin, Thermo King, Carrier
●Including side door and emergency door
●Temperature: Freezer: -18℃, Chiller: +5 ℃
●Inside Partition Board is movable
●Logo and color can be customized
●Power: 380/460, 3phase, 50/60Hz
●Cooler brand: Daikin, Thermo King, Carrier
●Including side door and emergency door
Product Datasheet
Type | Offshore Reefer Container 20ft | Offshore Reefer Container 40ft | |||
External Dimensions | 6058 x 2438 x 2591 | 12192 x 2438 x 2896 | MM | ||
Internal Dimensions | 5468 x 2294 x 2273 | 11590 x 2294 x 2554 | MM | ||
Door Opening (W x H) | 2290 x 2264 | 2290 x 2559 | MM | ||
Inside Cubic Capacity | 28.4 | 67.9 | CBM | ||
Maximum Gross Weight | 30480 | 34000 | KGS | ||
Tare Weight | 2900 | 4560 | KGS | ||
Maximum Payload | 27580 | 29440 | KGS | ||
Allowable Stacking Weight | 216000 | 216000 | KGS | ||
Cooling Capacity(W) | 6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ | ||||
Main Circuit | 3 PHASE AC 440, 460V/380, 400, 415 60/50HZ | ||||
Temperature Range | Frozen Romm: -18 ℃, Chiller Room: about +5 ℃ | ||||
Packing & Shipment
Our Advantages
FAQ
1. If the temperature range of two rooms can be adjusted?
Yes, it can be adjusted to what you want.
2 Can we choose the cooler system of your offshore dual temperature reefer container?
Sure, you could choose one from Daikin / Carrier / Thermo king.
3 Can I load my goods in China?
Yes, but we not suggest you to load dry cargoes. Because reef container have restricted requirement on
cargo package and loading/unloading.
4 Do you supply generator?
Yes, we have. More details, please contact us.
5. What are the payment terms that you can accept?
Generally T/T 50% deposit before production and 50% before shipment.
Other payment terms, please contact me for more details.
Yes, it can be adjusted to what you want.
2 Can we choose the cooler system of your offshore dual temperature reefer container?
Sure, you could choose one from Daikin / Carrier / Thermo king.
3 Can I load my goods in China?
Yes, but we not suggest you to load dry cargoes. Because reef container have restricted requirement on
cargo package and loading/unloading.
4 Do you supply generator?
Yes, we have. More details, please contact us.
5. What are the payment terms that you can accept?
Generally T/T 50% deposit before production and 50% before shipment.
Other payment terms, please contact me for more details.
