GL Certified Semi Automatic Twist Lock Container Lashing Straps and Hooks at ACE-LP-SA with Hot Dip Galvanized Surface
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | GL, BV, CCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $25.00/pieces 4-49 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Use: | Trailer Parts | Parts: | Trailer Locks |
|---|---|---|---|
| OE NO.: | ACE-LP-SA | Max Payload: | 420KN |
| Size: | 28MM | Material: | Forged Steel |
| Application: | Container Connect | Dimensions: | Manual |
| Product Name: | Semi Automatic Twist Lock | Usage: | Usage Connection |
| Surface: | Hot Dip Galvanized | Product Material: | High Quality Casting Steel |
| Color: | General Color | Delivery: | Within One Week |
Product Description
Hot Sale Products
Product Description
Container Securing (It is all about cargo and people safety.)
Shipping container is a weak box loaded with heavy cargo inside and above. The mass of the cargo is accelerated by the six types of movement of a ship in response to sea conditions and by additional forces from wind and green seas. To handle these forces, and to secure the valuable cargo, containers need to be further stabilised and secured by lashing equipment.
ACE is a professional supplier, we provide verious of lashing Equipment for Container Ship. Also provide lashing equipment for Bulk Cargo Ship and Ro-Ro ship. Please contact our sales to get professional guide.

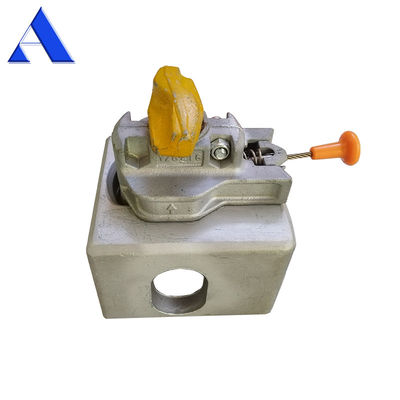

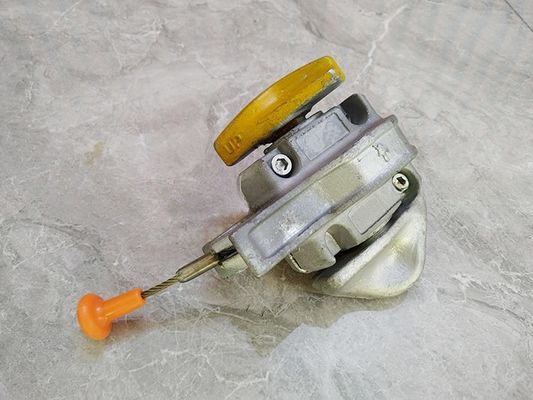

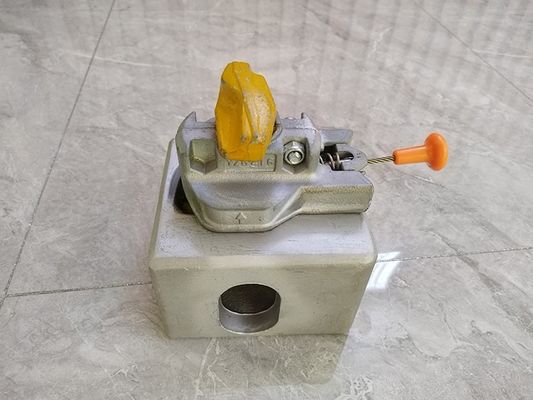

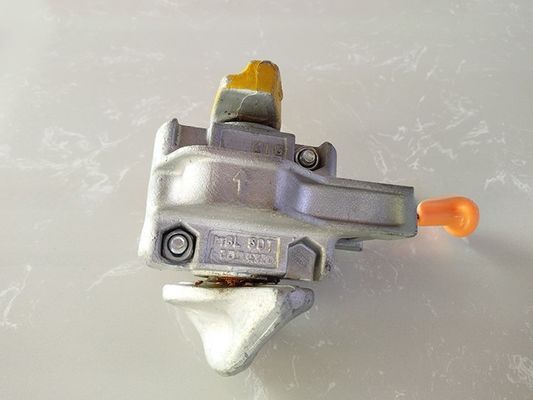

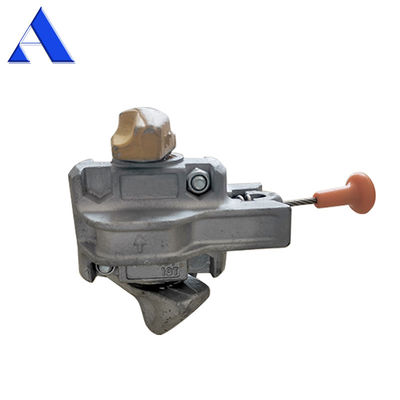

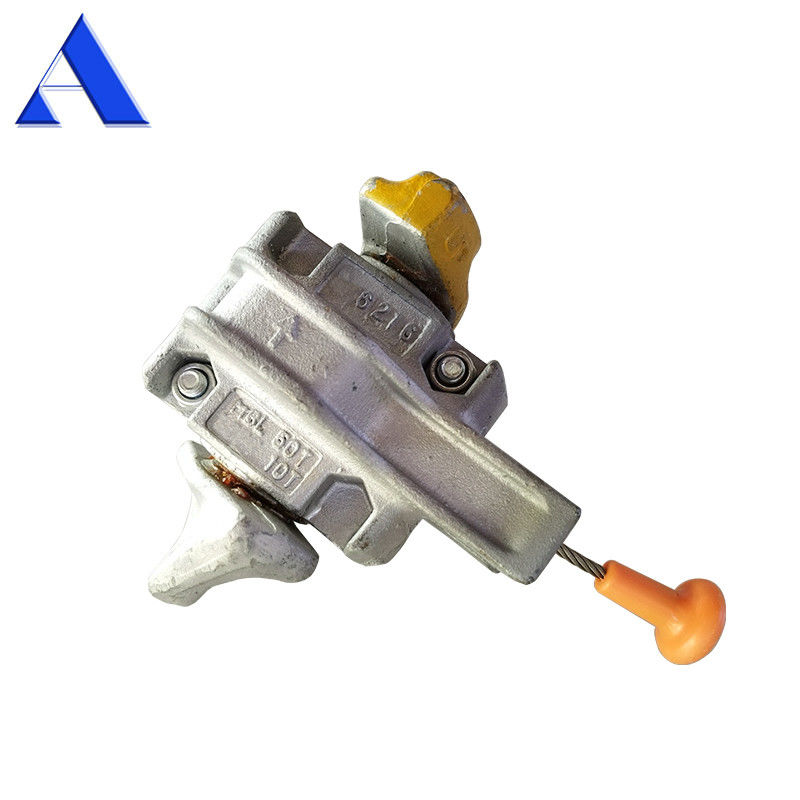

ISO Casting Steel Lashing Equipment Container Semi Automatic Twist Lock
General introductions:
Semi-automatic twist lock is to insert the container into the corner hole of the container from
bottom to top when the bridge crane lifts the container to the height raised by the arm on the
wharf. When the container is lifted onto the ship and placed on the vertical base or another
corner hole of the container, the automatic device of the lock acts and rotates the lock shaft to
lock the box to the base or the box to the box.
bottom to top when the bridge crane lifts the container to the height raised by the arm on the
wharf. When the container is lifted onto the ship and placed on the vertical base or another
corner hole of the container, the automatic device of the lock acts and rotates the lock shaft to
lock the box to the base or the box to the box.
When unloading containers, the cables should be pulled out with the operating rod first,
so as to open the twist lock and the corner hole of the vertical base or the top of another
container, and the container should be hoisted to the wharf and unloaded manually.
so as to open the twist lock and the corner hole of the vertical base or the top of another
container, and the container should be hoisted to the wharf and unloaded manually.
Specifications - ISO container twist lock part:
Approval by GL, BV, CCS
Product Datasheet
Specifications | ||||
Materials | High Quality Casting Steel | |||
Surface Treatment | Hot Dip Galvanized | |||
Weight | 4.9 KGS | |||
Min Breaking Loads | Tension | 500 KN | ||
Shear | 420 KN | |||
Compression | 2000 KN | |||
Company Profile
Packing & Shipment
150 or 200 pcs of Semi Automatic Twist Lock packed into one plywood box
Our Services
1. Rich product categories, lower customer cost.
2. Enough stock, fast delivery and low MOQ.
3. Focus on Service.
4. Strong adaptability, reduce clients' risk.
5. Strong communication skills.
6. Long-standing ecological chain.
7. Trustworthy.
2. Enough stock, fast delivery and low MOQ.
3. Focus on Service.
4. Strong adaptability, reduce clients' risk.
5. Strong communication skills.
6. Long-standing ecological chain.
7. Trustworthy.
FAQ
Are your twist lock certified by any Classification Society?
Yes, all of our lashing equipment are certified by BV or GL.
Q: How about surface Treatment?
A : Hot Deep Galvernised.
Q: Can I order mixed items?
A: Yes, you could choose the lashing parts as per your requirement.
Yes, all of our lashing equipment are certified by BV or GL.
Q: How about surface Treatment?
A : Hot Deep Galvernised.
Q: Can I order mixed items?
A: Yes, you could choose the lashing parts as per your requirement.
