Shop Primer Finish Container Stacking Cone 2.6/3.0KGS for Container Lashing Material
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $12.00/pieces 100-499 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Product Name: | Container Stacker | Material: | Steel, Ship Building Steel |
|---|---|---|---|
| Finish: | Shop Primer | Application: | Container Lashing |
| Approval: | GL | Weight: | 2.6/3.0KGS |
| M.B.L Shear: | 420KN | Dimensions: | ISO |
Product Description
Hot Sale Products
Product Description
Container Securing (It is all about cargo and people safety.)
Shipping container is a weak box loaded with heavy cargo inside and above. The mass of the cargo is accelerated by the six types of movement of a ship in response to sea conditions and by additional forces from wind and green seas. To handle these forces, and to secure the valuable cargo, containers need to be further stabilised and secured by lashing equipment.
ACE is a professional supplier, we provide verious of lashing Equipment for Container Ship. Also provide lashing equipment for Bulk Cargo Ship and Ro-Ro ship. Please contact our sales to get professional guide.
1.General Introductions

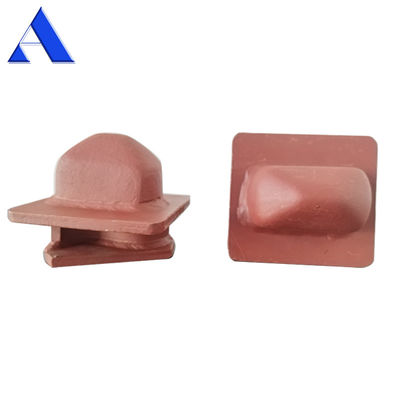

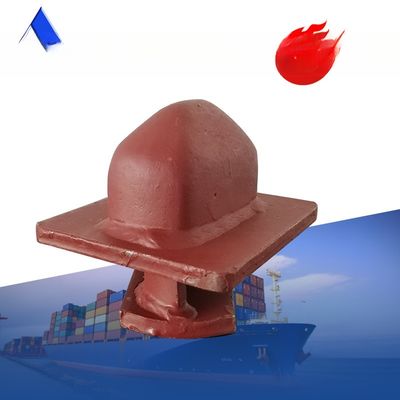

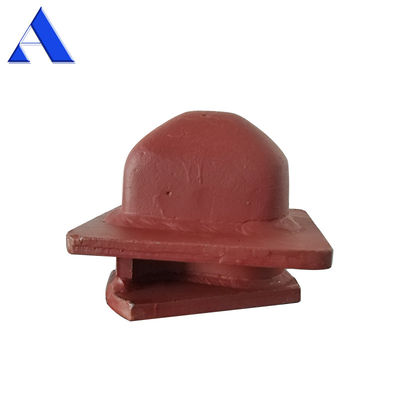

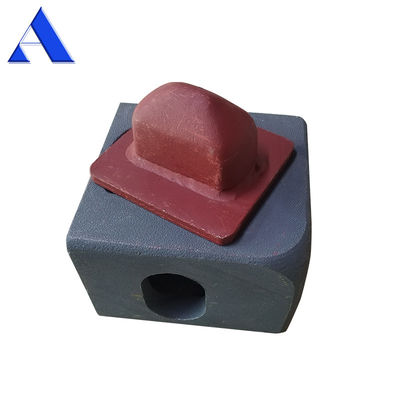

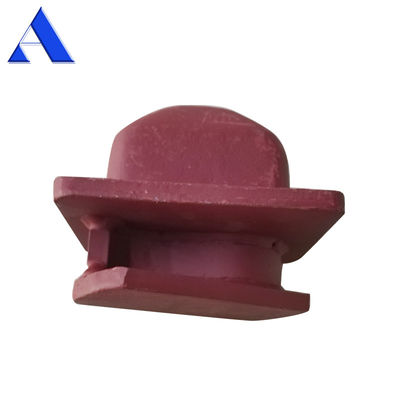

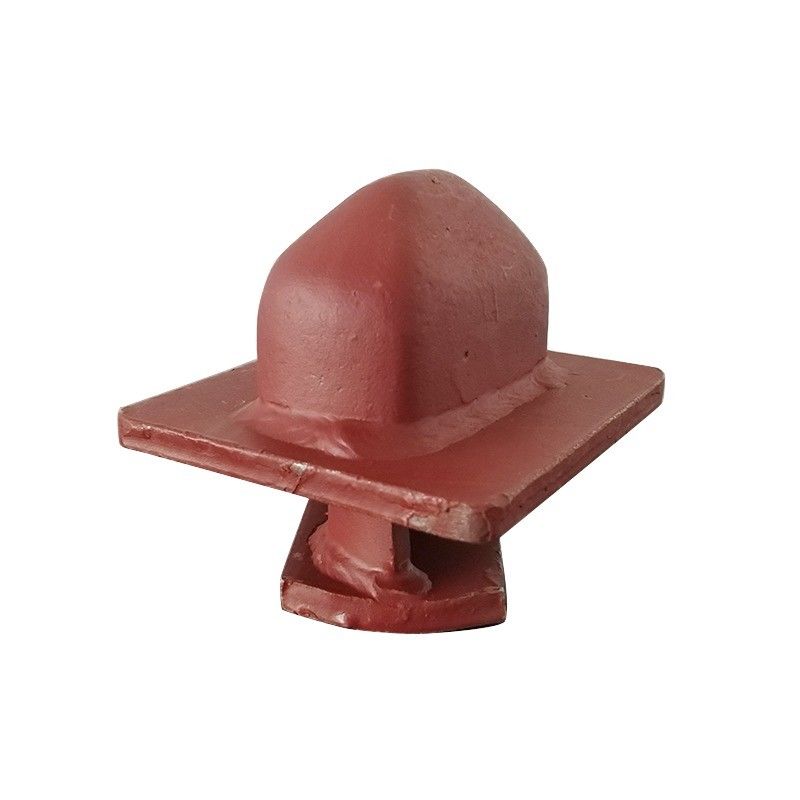

Container stacking cones are placed between containers in a stack. Slots into corner castings. To resist horizontal forces.there are many types exist, and the most popular type is: Single Type & Double Type(Horizontal & Longitudinal). It may be locked into bottom corner castings prior to lifting a container on board.
The Advantages of container flush foundation
1. High quality Ship Building Steel.
Approval from GL,BV,ABS;
Approval from GL,BV,ABS;
2. It's specially designed for linking the upper and lower containers;
3. Center marking for easy installation
Product Datasheet
Types | Single Stacker | ||
Weight | 2.6kgs | ||
Material | casting steel | ||
M.B.L Shear | 420KN | ||
M.B.L Compression | 2000KN | ||
M.B.L Tension | 500KN | ||
Approval: | With DNV GL certification | ||
Our Advantages
Packing & Delivery
Shipping
1. For the small order(1-400 pcs), we have the stock and we can arrange delivery at once.
2. For the large order, there is about 2-3 weeks production time.
Package
Standard Packing: Wooden Box and Pallet
