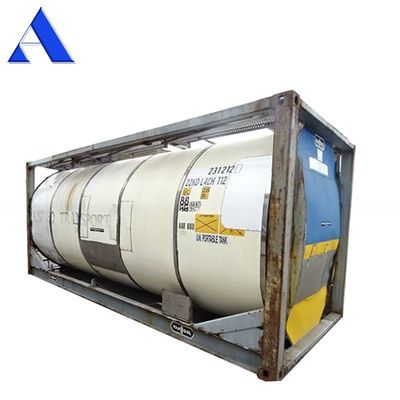

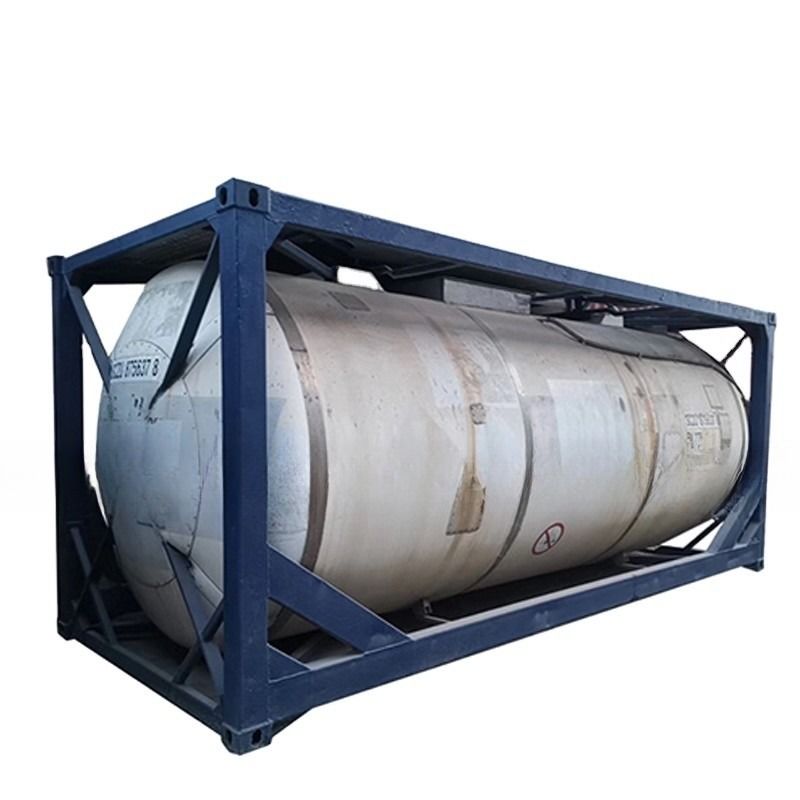

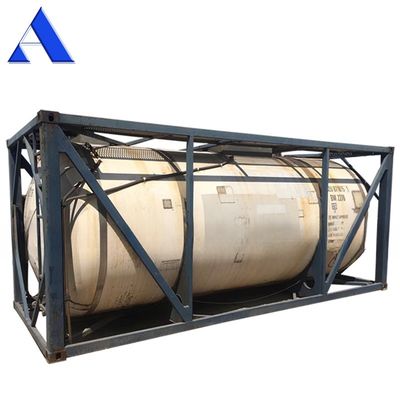

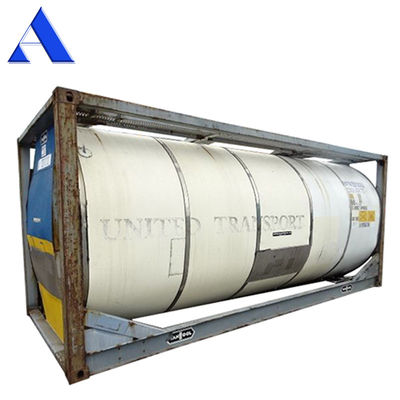

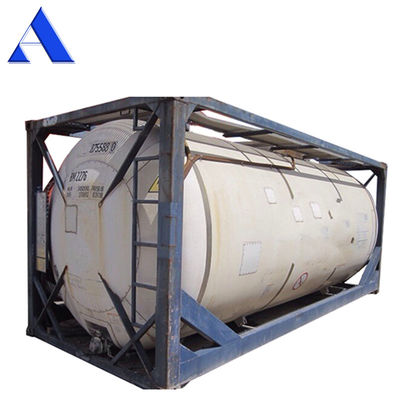

Certified CSC T11 ISO Tank Container 21000L to 26000L for Chemical Storage Made of Steel and Corten Steel
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | CSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $10,000.00/units 1-1 units |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Tank Container, UN Portable Tank T1 To T22 | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 26 CBM | External Dimensions(l X W X H)(mm): | 6.058 X 2.438 X 2.591M |
| Internal Dimensions(l X W X H)(mm): | 26000L | Frame Material: | Corten Steel |
| Tank Material: | 316L/SAN50028-7/WNr 1.4402/1.4404 | Insulation: | Rockwood |
| Design Temperature: | -40 To +130 Centigrade | Approval: | IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT |
| Certificate: | BV Or GL | Pressure(Working/Test): | 4.0/6.0Mpa |
Product Description
Hot Sale Products
Product Details
We can provide used containers in main ports of China
Volume: 19000L to 25000L
Production Years: aroujnd 2010
Product Datasheet
UN T11 Portable Tank Specifications | ||
Suitable for | Normal Liquid Chemical | |
Design Code | ASME VIII DIV. 1 / EN14025 | |
Dimensions | 6058 x 2438 x 2591 mm | |
Max Working Pressure | 4 Bar | |
Capacity | 25000 Litres | |
Payload | 32620 Kgs | |
Tare Weight | 3380 Kgs | |
Tank Materials | Stainless Steel | |
Insulation | Shell: Rock wool (50kg/m3) 50 mm thick on Aluminium Foil Ends: Glass wool (16kg/m3) thickness to suit on aluminium foil | |
Cladding | Shell: 1.8mm GRP preprinted white with lapped joints Ends: 2.0mm thick GRO one piece end | |
Top Discharge | DN80 Stainless Steel 316 Tank Pad with a blind flange | |
Bottom Discharge | DN80 45° Univalve Internal Foot valve fitted with an integrated butterfly valve with a 3'' BSP Spigot with 3'' blind cap and chain | |
Safety Relief Assembly | 2.5 '' BSP Supermaxi Highflow relive | |
Air Inlet Assembly | DN40 Ball valve | |
Approvals | UN Portable Tank T11, IMDG- T11 US DOT CFR 49 - AAR600 RID/ADR-L4BN TIR, UIC, UK DFT ISO-Standard | |
Our Advantages
FAQ
1 Do you have used Tank containers in Stock?
Yes, we have stock in main ports in China
2. Are your tanks certified？
Yes, we can provide one time certificate for customer to load cargoes.
3. Can you export empty tank container?
Sorry, we can't.
4. Do you have new tank containers?
Yes, we can provide new tank containers.
