Professional Supply Standard 20ft 40ft HC ISO Shipping Container Spare Parts and Accessories with Hard Wood Floor Material
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $2,350.00-3,980.00/sets |
| Packaging Details: | container parts are packed by pallet or box |
| Delivery Time: | within 30 days |
| Supply Ability: | 200 Set/Sets per Month container parts |
|
Detail Information |
|||
| Type: | Dry Container | Length (feet): | 40' |
|---|---|---|---|
| Capacity: | 76 CBM | External Dimensions(l X W X H)(mm): | 12192 X 2438 X 2896mm |
| Internal Dimensions(l X W X H)(mm): | 12032 X 2320 X 2560mm | Name: | Container Parts |
| Steel Structure Material: | Corten Steel | Floor Material: | Hard Wood |
| Corner Casting: | SCW49 | Door Rubber: | EPDM |
| Full Set Of Container Parts: | 20ft 40ft GP Or HC | Application: | Building New Container Or Repair Container |
| Socrew: | M8x50, M8x45 | CSC Plate: | Stainless Steel |
| Ventilator: | ABS Material | Port: | Tianjin, ShangHai, ShenZhen, GuangZhou |
Product Description
Why choose ACE instead of other Supplier?
1.ACE provide full range of ISO shipping container parts with good quality and reasonable price.
2.ACE have exported ISO dry container parts to Over 110 Countries.
3.ACE are the No. 1 Seller of container parts.
4. One Stop Purchasing is our mainly one of advantage
5. The quality completely same as ISO shipping container.

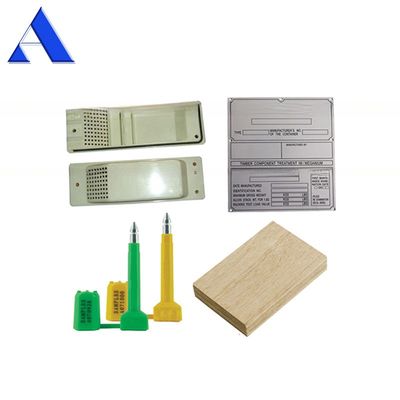

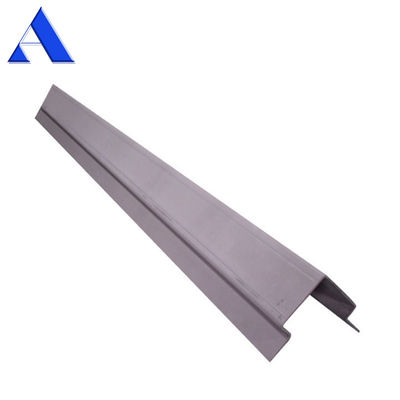

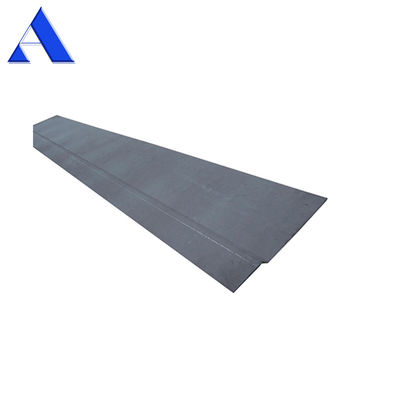

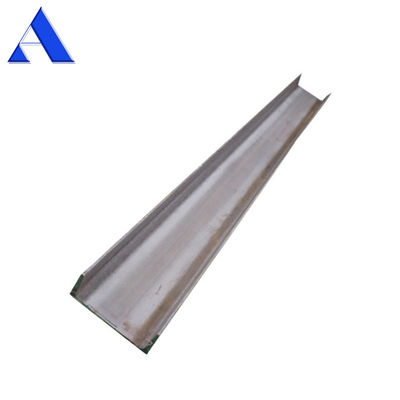

Other Parts | DESCRIPTION | Dimensions(mm) | Material | ||

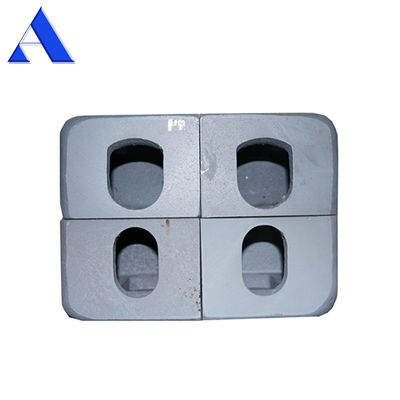

Door End | ISO Corner Fitting, 8pcs/set | 178x162x118 | SCW490 | ||
Door Hinge Set | Blade, Pin, Lug, Bush | ||||
Container Door Locking Device | |||||
Door Gaskets | 1143x2254 | EPDM | |||
Gasket Retainer | SUS304 | ||||
CSC plate | 0.8x100x200 | SUS304 | |||
Door Panel (3 CORR) | 2.0X943X1957 | CORTEN | |||
Door Vertical Member Edge SQ.Tube | 3.2x50x100x2260 | CORTEN | |||
Door Horizontal Member Edge, Channel | 3.0x50x150x1024 or 943 | CORTEN | |||
Door Sill | 4.5x158x150x2400 | CORTEN | |||
Door Header Lower | 4.0x112.5x113x137.5x2400 | CORTEN | |||
Rear Corner Post inner | 12x113x40x2353 | CORTEN | |||
Rear Corner Post outer | 6.0x70x39x230x2400 | CORTEN | |||
Front End | Front End Panel | 2.0x1024x2400 | CORTEN | ||
Front Corner Post | 6.0x209x225x2400 | CORTEN | |||
Front Bottom Rail | 4.0X115X154x2400 | CORTEN | |||
Top End Member SQ.Tube (Horizontal) | 3.0x60x60x2112 | CORTEN | |||
Roof | Container Roof Panel (5 CORR) | 2.0x1045x2356 | CORTEN | ||
Door Header Upper (Extension Plate) | 3.0x388x2400 | CORTEN | |||
Top End Rail (Extension Plate) | 3.0X397x2400 | CORTEN | |||
Side | Container Side Panel | 1.6x1116x2400 | CORTEN | ||
Top Side Rail, SQ. Tube | 3.0x60x60x5702 | CORTEN | |||
Ventilator Cover | 204x67x25 | ABS | |||
Base | Container Plywood Flooring, 19ply | 28x1160x2400 | Hardwood | ||
Floor screw | L=5 to 120 | CORTEN | |||
Bottom Side Rail | 4.5x50x162x30x5702 | CORTEN | |||
Cross Member Small | 4x45x122x45x2350 | CORTEN | |||
Cross Member Large | 4x45x122x75x2350 | CORTEN | |||
Fork Pocket Bottom Plate | 360x300 | CORTEN | |||
Fork Pocket Top Plate | 360x2350 | CORTEN | |||
Gooseneck parts | CORTEN | ||||
Lashing Ring | SS41 | ||||
Hexagon Set screws Nuts and Bolts | L=6 to 200 | CORTEN | |||
Sealed pop rivet Blind rivet | 4.8*16.5 | CORTEN | |||
Decals: Weight& Capacity, UIC, Container Type, Ower's Serious | CORTEN | ||||
Open Top Container: Header Hinge,Tarpaulin, Eyelet,TIR Cable, D-Ring | |||||
Flat Rack: Twistlocks | |||||
Shipping Container Parts Packing
All the shipping container parts are packed via pallet or box:
Cortner Casting: Exported Pallet
Door Lock Parts: Steel Exported Pallet
Container twist lock: Pallet Box.
ACE Container & Parts Co., Ltd.
We are very famous and professional Container and Parts supplier in China, and have been container line for over 10 years, also have exported our product to 55 countries by the end of 2015, including Janpan, Korea, Southeast Asia, North and South America, Affrica etc.
With the increment of requirement for offshore equipment, ACE Contianer & Parts also arrange offshore equipment production for Oil and Gas platform as per you customized requirement, all of them are design as per DNV2.7-1 & EN12079 standard.
Main Products: ISO Dry Container, Reefer Container, Offshore Equipment, All kinds of Container Parts and Customized Special Contianer
5.1. Are your container frame parts good quality?
Yes, all of our container are ABS, BV, GL, CCS Certificate. If our parts are not good, our container won't be good. How can we pass the ABS, BV, GL, CCS testing.
5.2 Can we order mixed parts?
Sure, you could order and loading into one container for shipping together.
5.3 Any surface treatment for your parts?
Yes, with zinc rich pimer coating or Galvernised.
5.4 Can i order a container to load our parts?
Yes, that will be good, this may save your cost in port. We are also experienced how to operate SOC shipment.
