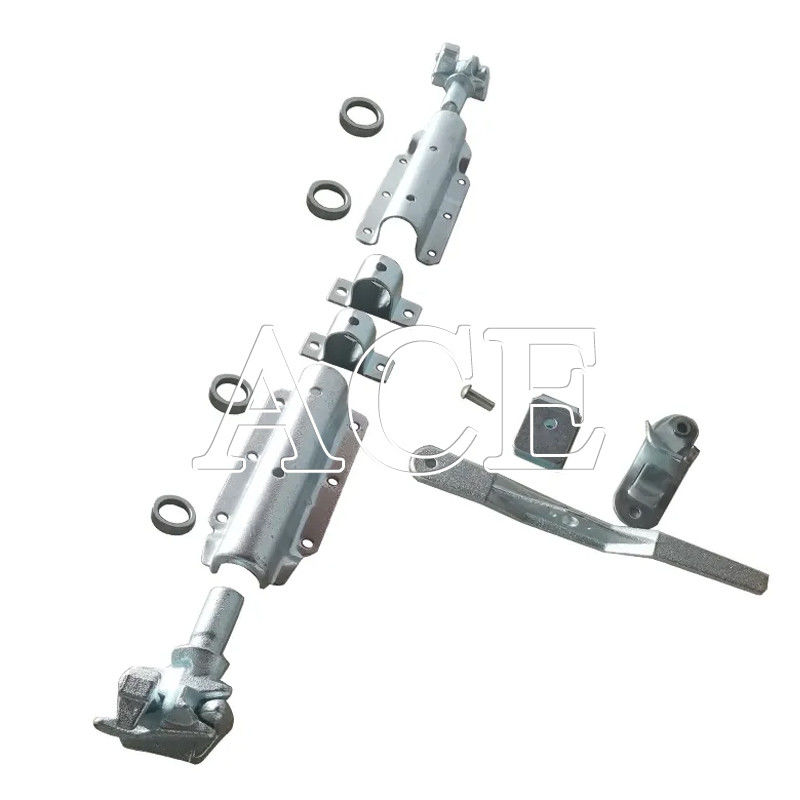

SCW49 Corner Casting Door Gear Locking System and Door Lock Set for Bottom Side Rails Refrigerated Reefer Container Parts
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $16.00/pieces 10-99 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Keyword: | Container Door Lock | Structure Material: | Corten Steel |
|---|---|---|---|
| Corner Casting: | SCW49 | Door Rubber: | EPDM |
| Reefer Container Parts: | T Floor, Kazoo, Reefer Container Hinge, Etc | Panels: | Reefer & Dry Roof Panels, Side Panels, Door Panels, Etc |
| Rails: | Container Top Side Rail, Bottom Side Rails | Door Parts: | Hot Dip Galvanized |
| Application: | For Building Shipping Containers | Other Realted Products: | Shipping Containers |
Product Description
Hot Sale Products
Product Description

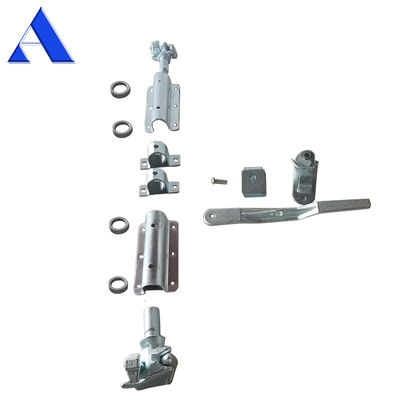

Reefer Container Door Gear Locking Parts
Dry Container Door Gear Locking Parts
Product Datasheet
Part | Descriptions | Dimensions(mm) | Material |
Door End | ISO Corner Fitting, 8pcs/set | 178x162x118 | SCW490 |
Door Hinge Set | Blade, Pin, Lug, Bush | ||
Container Door Locking Device | |||
Door Gaskets | 1143x2254 | EPDM | |
Gasket Retainer | SUS304 | ||
CSC plate | 0.8x100x200 | SUS304 | |
Door Panel (3 CORR) | 2.0X943X1957 | CORTEN | |
Door Vertical Member Edge SQ.Tube | 3.2x50x100x2260 | CORTEN | |
Door Horizontal Member Edge, Channel | 3.0x50x150x1024 or 943 | CORTEN | |
Door Sill | 4.5x158x150x2400 | CORTEN | |
Door Header Lower | 4.0x112.5x113x137.5x2400 | CORTEN | |
Rear Corner Post inner | 12x113x40x2353 | CORTEN | |
Rear Corner Post outer | 6.0x70x39x230x2400 | CORTEN | |
Front End | Front End Panel | 2.0x1024x2400 | CORTEN |
Front Corner Post | 6.0x209x225x2400 | CORTEN | |
Front Bottom Rail | 4.0X115X154x2400 | CORTEN | |
Top End Member SQ.Tube (Horizontal) | 3.0x60x60x2112 | CORTEN | |
Roof | Container Roof Panel (5 CORR) | 2.0x1045x2356 | CORTEN |
Door Header Upper (Extension Plate) | 3.0x388x2400 | CORTEN | |
Top End Rail (Extension Plate) | 3.0X397x2400 | CORTEN | |
Side | Container Side Panel | 1.6x1116x2400 | CORTEN |
Top Side Rail, SQ. Tube | 3.0x60x60x5702 | CORTEN | |
Ventilator Cover | 204x67x25 | ABS | |
Base | Container Plywood Flooring, 19ply | 28x1160x2400 | Hardwood |
Floor screw | L=5 to 120 | ||
Bottom Side Rail | 4.5x50x162x30x5702 | CORTEN | |
Cross Member Small | 4x45x122x45x2350 | CORTEN | |
Cross Member Large | 4x45x122x75x2350 | CORTEN | |
Fork Pocket Bottom Plate | 360x300 | CORTEN | |
Fork Pocket Top Plate | 360x2350 | CORTEN | |
Gooseneck parts | CORTEN |
Packing & Delivery
Company Profile
FAQ
1. Are your container parts good quality?
Yes, all of our container are ABS, BV, GL, CCS Certificate.
2 Can we order mixed parts?
Sure, you could order.
3 Any surface treatment for your parts?
Yes, with zinc rich pimer coating or Galvernised.
4 Can I order a container to load our parts?
Yes, that will be good, since container parts may hard to loading and unloading, this may save your cost in port.
5 Which port could you supply shipping container?
Yes, ACE have stock in TianJin, QingDao, DaLian, LianYunGang, ShangHai, NingBo, XiaMen, ShenZhen, GuangZhou.
Yes, all of our container are ABS, BV, GL, CCS Certificate.
2 Can we order mixed parts?
Sure, you could order.
3 Any surface treatment for your parts?
Yes, with zinc rich pimer coating or Galvernised.
4 Can I order a container to load our parts?
Yes, that will be good, since container parts may hard to loading and unloading, this may save your cost in port.
5 Which port could you supply shipping container?
Yes, ACE have stock in TianJin, QingDao, DaLian, LianYunGang, ShangHai, NingBo, XiaMen, ShenZhen, GuangZhou.
