Customized Length Galvanized DNV GL Certified Container Lashing Equipment Lashing Bar Lashing Rod for Hot Dip Galvanization
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $54.00/pieces 50-99 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Lashing Bar | Material: | Steel |
|---|---|---|---|
| Size: | 2500-5000mm | Product Name: | Container Lashing Rod |
| Application: | Container Lashing System | Surface: | Hot Dip Galvanized |
| Usage: | Marine Hardware Fittings | Weight: | 12.9-22.6KGS |
| OEM: | Accept | Tension: | 500KN |
| Approval: | With DNV GL Certified | ||
Product Description
DNV GL Certified Container Lashing Rod
Container Lashing Rod are used on the ends of the containers while aboard ship to securing the container stacks to the ship. Short bars of about 2500 mm go to the bottom of the 2nd container tier. Long bars of about 4500 to 5000 mm go to the bottom of the 3rd container tier.
The container lashing rods have a swivel head on one end that can fit into the end of the container corner casting. The other end is to be used in conjunction with the appropriate turnbuckle which in turn is secured to a D Ring or Lashing Eyeplate which is welded to the ships deck.
Please check the below picture for using one deck:

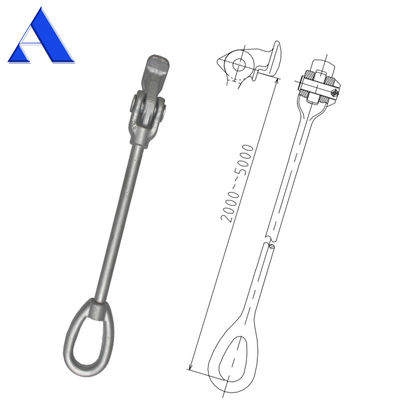

Lashing Rod H-J Type
Galvanized, DNV GL Certified
Length: 2400mm/4700mm
Other length as per requirement.

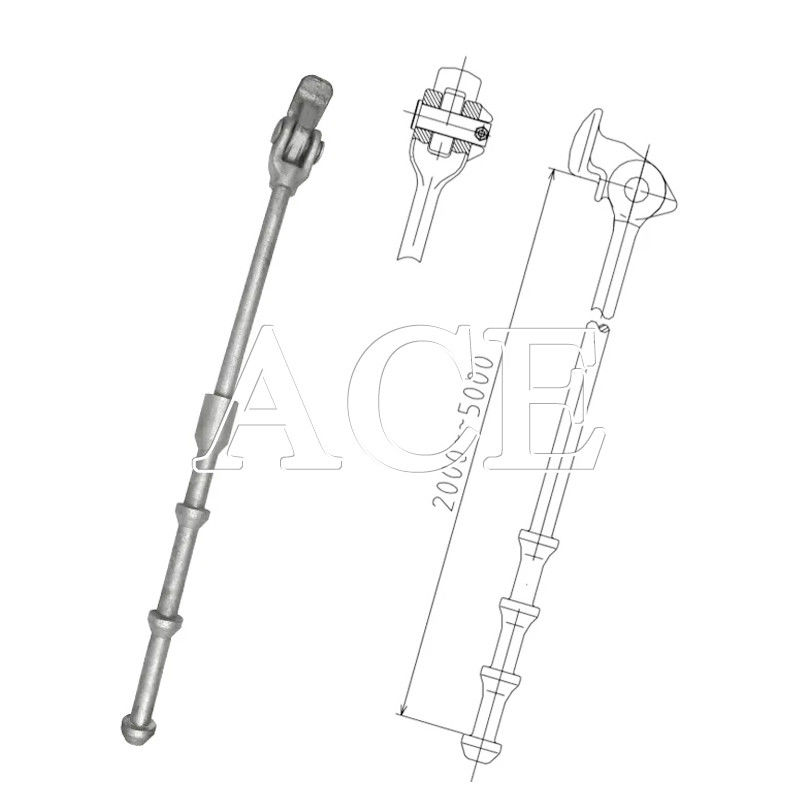

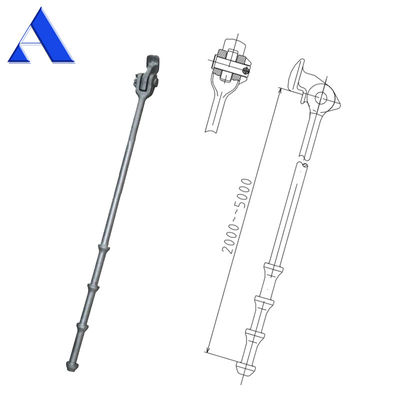

Lashing Rod Knob Type
Galvanized, DNV GL Certified
Length: 2500mm/5000mm
Other length as per requirement.
Lashing Rod Knob-Vertical head
Galvanized, DNV GL Certified
Length: 1680mm/4430mm
Other length as per requirement.
Container Turnbuckle H-J type
Matching using with Lashing Rod H-J type
DNV GL Certified, Galvanized
Container Turnbuckle Knob type
Matching using with Lashing Rod Knob and vertical type
DNV GL Certified, Galvanized

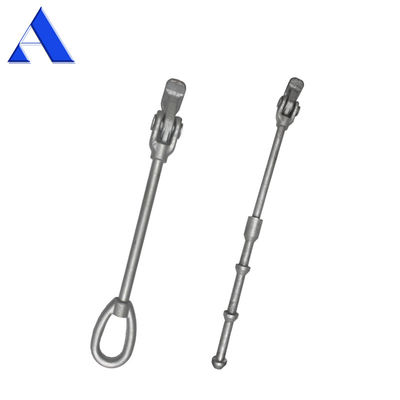

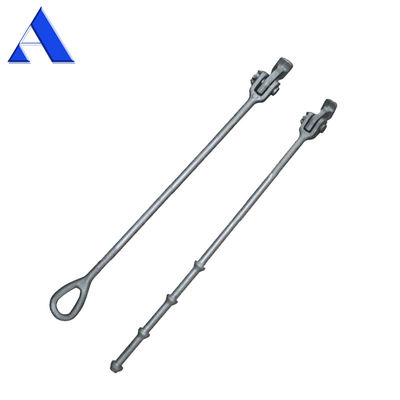

Type | Knob Type | Eye type |
Length | 2500/5000mm | 2400/4700mm |
Weight | 12.9/22.6 kgs | 11.9/21.7kgs |
M. B. L. Tension | 500 KN | 500KN |
Safe Working Load | 250 KN | 250 KN |
Surface | Hot Dip Galvanized | Hot Dip Galvanized |
Approval | With DNV GL Certified | With DNV GL Certified |
Packing | 50 pcs into one pallet | 50 pcs into one pallet |
