Durable Container Support 20' Length DNV GL Certified Container Lashing Equipment ISO Single Raised Container Foundation
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | CSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $55.00/pieces 10-19 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Dry Container, Single And Double | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 33.2 | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 5899 X 2320 X 2252 Mm | Material: | High Quality Casting Steel |
| Surface Treatment: | Hot Deep Galvanized | Tension: | 500KN |
| Shear: | 420KN | Compression: | 2000KN |

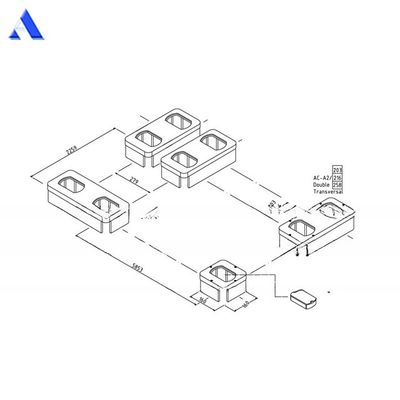

| Standard Distance: | 203/216/258 Mm | ||
Product Description
Hot Sale Products
Product Description

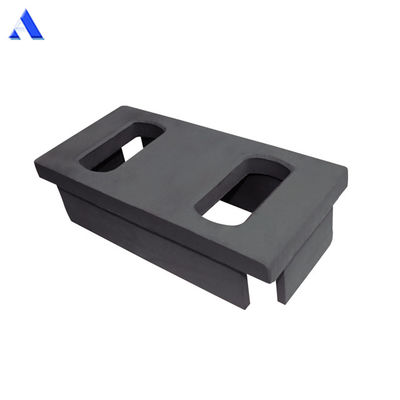

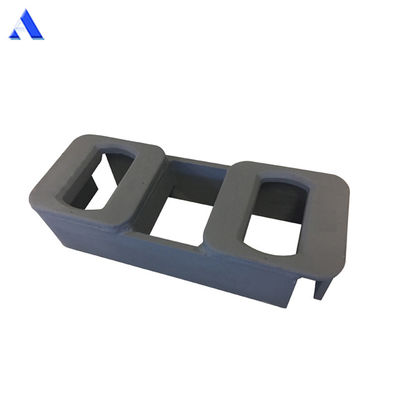

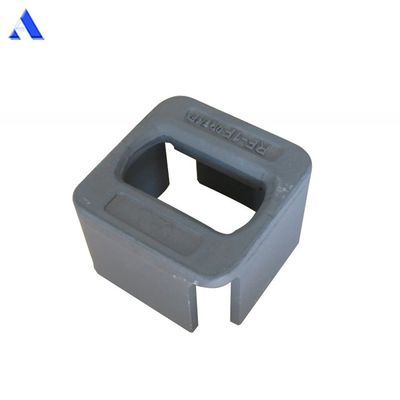

DNV GL Container Raised Foundation
In the container industry, cycle time for loading and unloading containers is the most important criterion. Innovative container securing systems provided by ACE aim specifically at enhancing productivity and safety, both on the vessel and at container terminals.
Our shipping container twist lock has been certified by Classification Society, such as GL CCS.
We also provide Flush Foundation
Product Datasheet
Type | Single Raised Foundation |
Material | High Strength Structure |
Height | 110mm / as per your requirement |
M.B.L. Tension | 500 KN |
M.B.L. Shear | 420 KN |
Weight: | 6 kgs each |
Surface Treatment | Painted |
Packing | 108 pcs into one box |
Approval | DNV GL Certified |
Packing & Delivery
Shipping
1. For the small order(1-400 pcs), we have the stock and we can arrange delivery at once.
2. For the large order, there is about 2-3 weeks production time.
Package
Raised ISO Foundations: 200 pcs packed into one pallet box.
