Shipping Container Twist lock with M.B.L Shear 420KN Container Lashing Stacking Cone DNV GL Certified Single Container
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $9.00/pieces 100-499 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Product Name: | Container Stacking Cone | Material: | Steel, Ship Building Steel |
|---|---|---|---|
| Finish: | Galvanized | Application: | Container Lashing |
| Approval: | DNV GL | Weight: | 2.60KGS |
| M.B.L Shear: | 420KN | ||
Product Description
Hot Sale Products
Product Description
Container Securing (It is all about cargo and people safety.)
Shipping container is a weak box loaded with heavy cargo inside and above. The mass of the cargo is accelerated by the six types of movement of a ship in response to sea conditions and by additional forces from wind and green seas. To handle these forces, and to secure the valuable cargo, containers need to be further stabilised and secured by lashing equipment.
ACE is a professional supplier, we provide verious of lashing Equipment for Container Ship. Also provide lashing equipment for Bulk Cargo Ship and Ro-Ro ship. Please contact our sales to get professional guide.
1.General Introductions

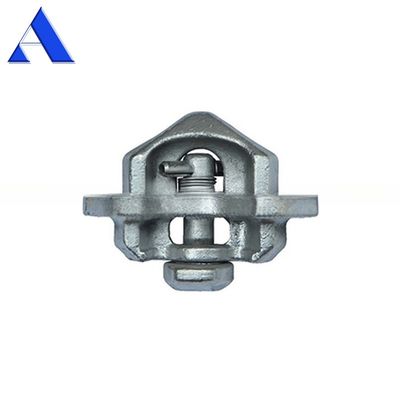

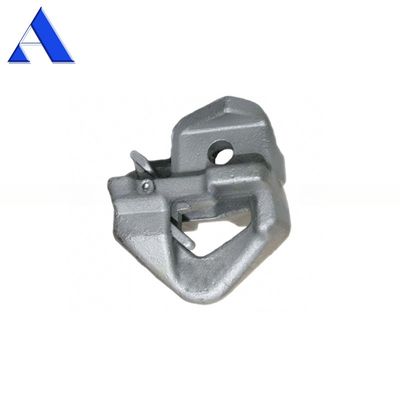

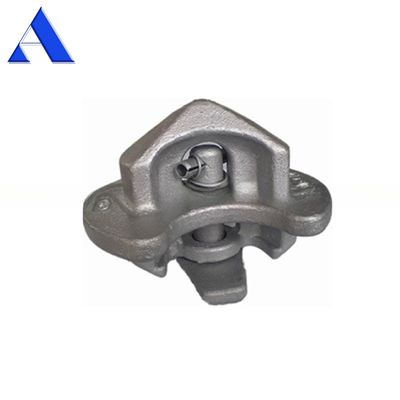

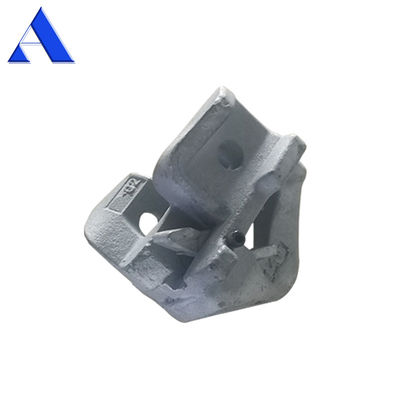

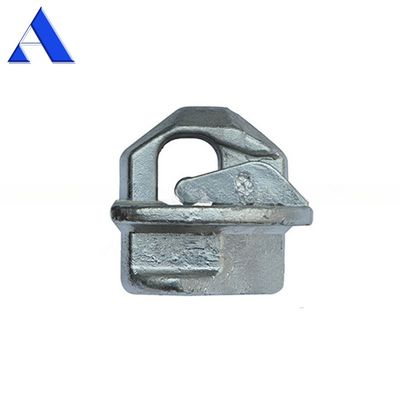

Container stacking cones are placed between containers in a stack. Slots into corner castings. To resist horizontal forces.there are many types exist, and the most popular type is: Single Type & Double Type(Horizontal & Longitudinal). It may be locked into bottom corner castings prior to lifting a container on board.
The Advantages of container flush foundation
1. High quality Ship Building Steel.
Approval from GL,BV,ABS;
Approval from GL,BV,ABS;
2. It's specially designed for linking the upper and lower containers;
3. Center marking for easy installation
Product Spefications
Types | Single | ||
Weight | 2.6kgs | ||
Material | casting steel | ||
M.B.L Shear | 420KN | ||
M.B.L Compression | 2000KN | ||
M.B.L Tension | 500KN | ||
Packing & Delivery
Shipping
1. For the small order(1-400 pcs), we have the stock and we can arrange delivery at once.
2. For the large order, there is about 2-3 weeks production time.
Package
Standard Packing: Wooden Box and Pallet
