Shipping Container Twistlock and Stacking Intermediate ISO Dimensions Lashing Equipment with Hot Dip Galvanized Finish
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $19.00/pieces 4-99 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Use: | Trailer Parts | Purpose: | For Retrofit/upgrade |
|---|---|---|---|
| Condition: | New | Parts: | Trailer Locks |
| OE NO.: | ACET | Max Payload: | 2000 |
| Size: | 59x28x87mm | Name: | Container Twist Lock |
| Material: | Casting Steel | Finish: | Hot Dip Galvanized |
| Approval: | GL Certified | Weight: | 4.5KGS |
| M.B.L Tension: | 500KN | M.B.L Compression: | 420KN |
| Other Type: | Mid Lock, Bright Fitting, Dovetail Twist Lock Etc. | Packing: | 200PCS Into One Pallet Box |
| Application: | Container Stacking | ||
Product Description
Hot Sale Products
Product Description
Shipping Container Twistlock
Shipping container is a weak box loaded with heavy cargo inside and above. The mass of the cargo is accelerated by the six types of movement of a ship in response to sea conditions and by additional forces from wind and green seas. To handle these forces, and to secure the valuable cargo, containers need to be further stabilised and secured by lashing equipment.
Container Bridge Fitting
Material: High Quality Casting Steel
Weight: 3.0 KGS per piece
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
Type: 260mm / 380mm

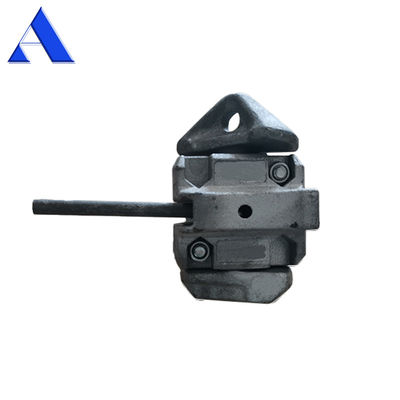

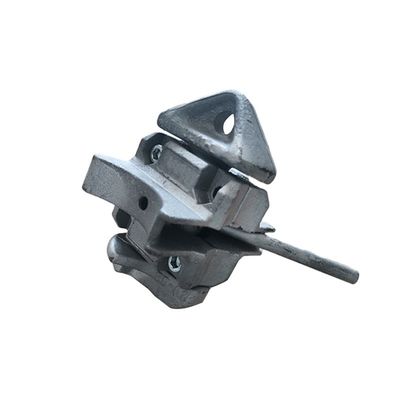

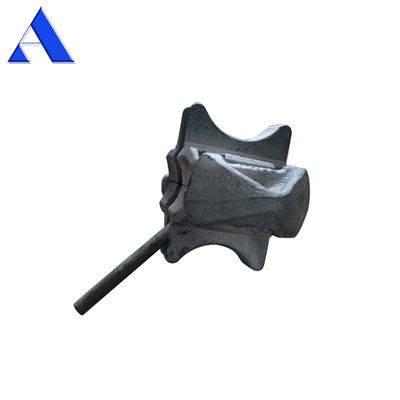

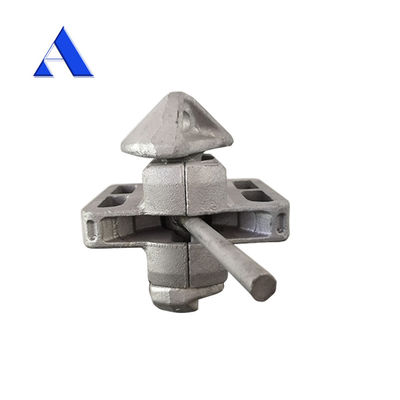

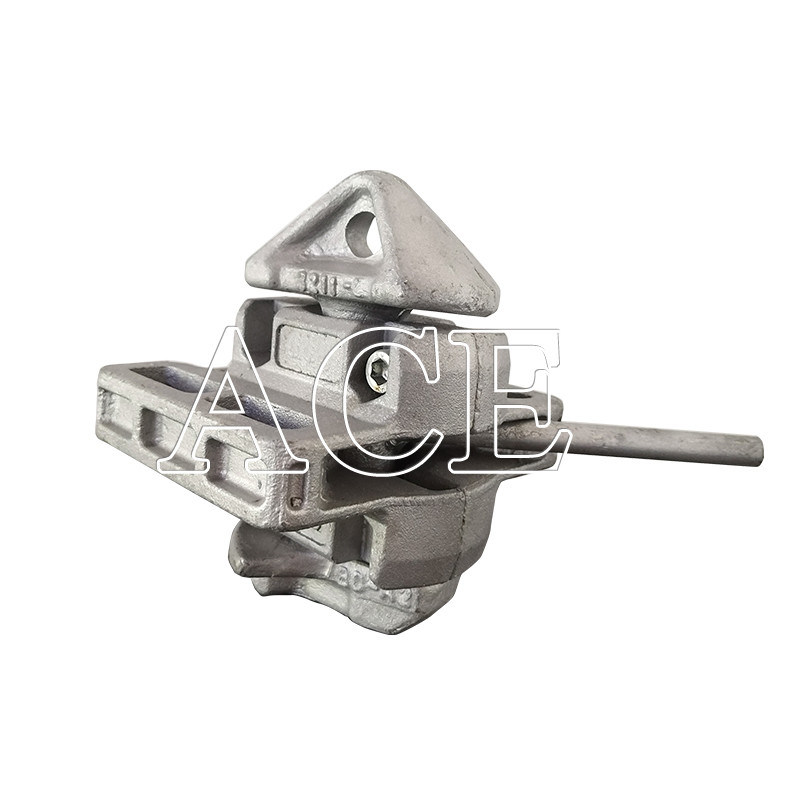

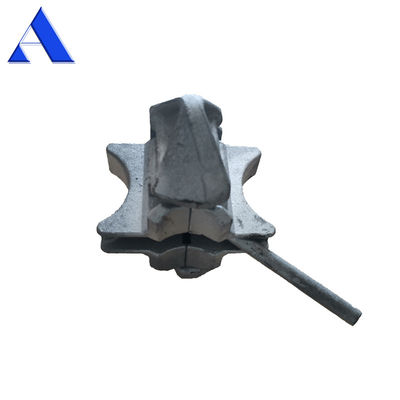

Container Twist Lock
Material: High Quality Casting SteelWeight: 4.5 KGS per piece
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
Type: Standard / Large seat type
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
Type: Standard / Large seat type
Container Connector
Material: High Quality Casting SteelWeight: 4.3 KGS per piece
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
D rings
Material: High Quality Casting SteelWeight: 3.7 KGS per piece
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
Container Foundation
Material: High Quality Casting SteelWeight: 7.6 KGS per piece
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
Container Stacking Cone
Material: High Quality Casting SteelWeight: 2.4 KGS per piece
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
Surface Treatment: Hot Dip Galvanized
MOQ: 50 pcs
Product Datasheet
Loads | Shear[KN | Tension [KN] | |
Breaking Load | 420 | 500 | |
Safe Working Load | 210 | 250 | |
Total Weight | 4.5KG | ||
Material | Forged Steel | ||
Finish | Hot dip Galvanised | ||
Packing & Delivery
Package Type:
200 pcs of container twist lock are packed into one pallet box.
Putting the Mark as per your requirement
Company Instruction
ACE Container & Parts Co.,Ltd
ACE Container is a professional Container & Parts supplier in China, which has over 10 years experience in this line, 7 years Golden Member in Alibaba, Trade Assurance Service in Alibaba. Also ACE Container has exported products to over 80 countries. And we have got the approval of SGS.
• Our Main Business Line: Container Bridge Fitting, All kinds of Dry Cargo Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipment.
• Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.
