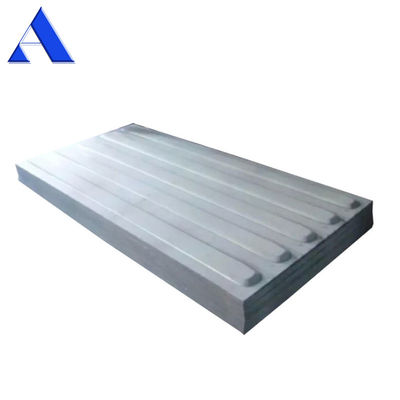

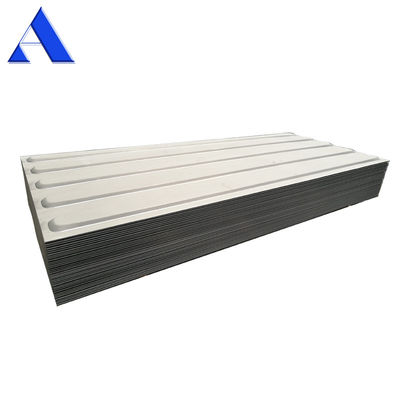

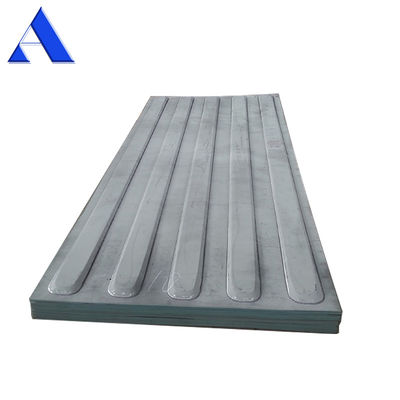

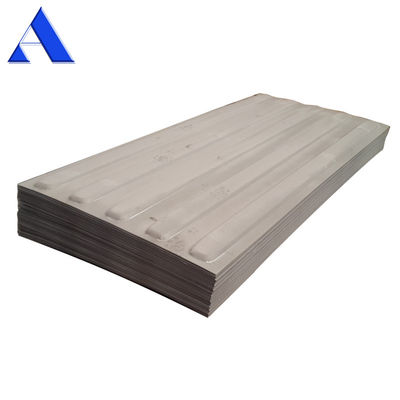

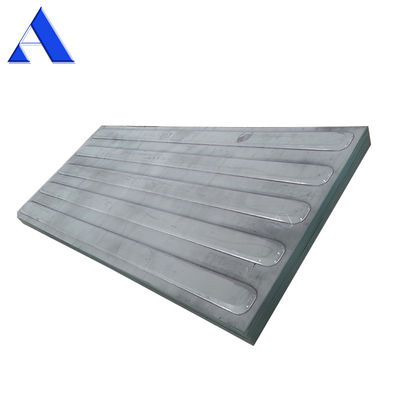

Shipping Container Parts 1.6/2.0x1045x2356mm Corten Steel Roof Panels for Container Accessories
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $49.00/pieces 50-199 pieces |
| Packaging Details: | As per your request |
| Delivery Time: | within 30 days |
| Supply Ability: | 3000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Container Parts | Keyword: | Shipping Container Parts |
|---|---|---|---|
| Dimensions: | 1.6/2.0x1045x2356mm | Material: | Corten Steel |
| Surface Treatment: | Sa 2.5 Blast & Primer Coating | Pounding Edge: | Square / Round |
| Corrugation: | 3 / 4 / 5 | Port: | Shanghai / Tianjin / Qingdao |
Product Description
Hot Sale Products
Product Description
Various of Shipping Container Spare Parts & Accessories
Dry Container Parts
Reefer Container Parts
Tank Container Parts

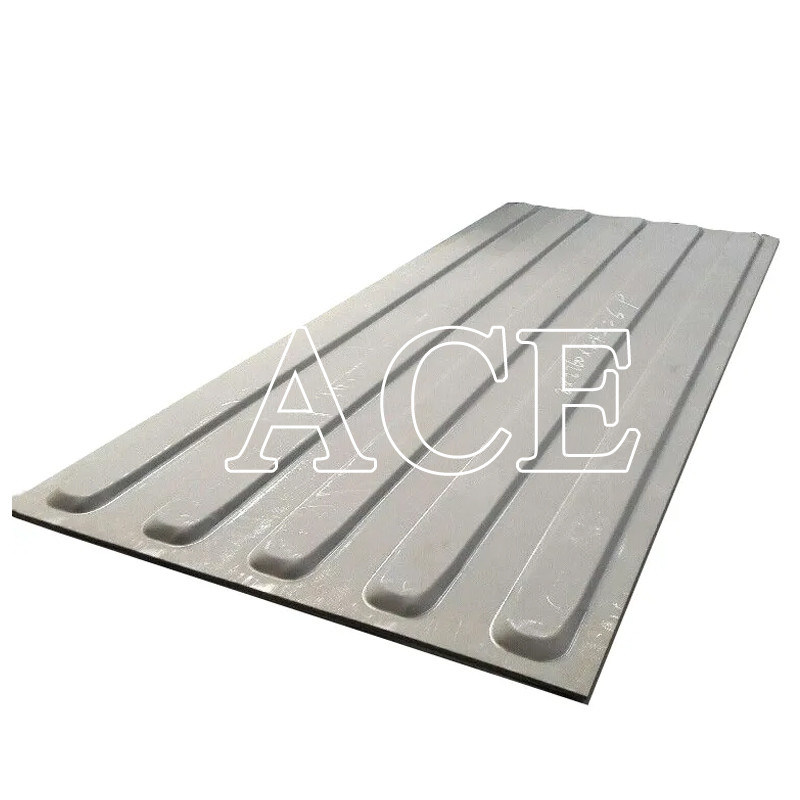

Container Roof Panel
Other Spare Parts
Product Datasheet
Part | Descriptions | Dimensions(mm) | Material | ||
Door End | ISO Corner Fitting, 8pcs/set | 178x162x118 | SCW490 | ||
Door Hinge Set | Blade, Pin, Lug, Bush | ||||
Container Door Locking Device | |||||
Door Gaskets | 1143x2254 | EPDM | |||
Gasket Retainer | SUS304 | ||||
CSC plate | 0.8x100x200 | SUS304 | |||
Door Panel (3 CORR) | 2.0X943X1957 | CORTEN | |||
Door Vertical Member Edge SQ.Tube | 3.2x50x100x2260 | CORTEN | |||
Door Horizontal Member Edge, Channel | 3.0x50x150x1024 or 943 | CORTEN | |||
Door Sill | 4.5x158x150x2400 | CORTEN | |||
Door Header Lower | 4.0x112.5x113x137.5x2400 | CORTEN | |||
Rear Corner Post inner | 12x113x40x2353 | CORTEN | |||
Rear Corner Post outer | 6.0x70x39x230x2400 | CORTEN | |||
Front End | Front End Panel | 2.0x1024x2400 | CORTEN | ||
Front Corner Post | 6.0x209x225x2400 | CORTEN | |||
Front Bottom Rail | 4.0X115X154x2400 | CORTEN | |||
Top End Member SQ.Tube (Horizontal) | 3.0x60x60x2112 | CORTEN | |||
Roof | Container Roof Panel (5 CORR) | 2.0x1045x2356 | CORTEN | ||
Door Header Upper (Extension Plate) | 3.0x388x2400 | CORTEN | |||
Top End Rail (Extension Plate) | 3.0X397x2400 | CORTEN | |||
Side | Container Side Panel | 1.6x1116x2400 | CORTEN | ||
Top Side Rail, SQ. Tube | 3.0x60x60x5702 | CORTEN | |||
Ventilator Cover | 204x67x25 | ABS | |||
Base | Container Plywood Flooring, 19ply | 28x1160x2400 | Hardwood | ||
Floor screw | L=5 to 120 | ||||
Bottom Side Rail | 4.5x50x162x30x5702 | CORTEN | |||
Cross Member Small | 4x45x122x45x2350 | CORTEN | |||
Cross Member Large | 4x45x122x75x2350 | CORTEN | |||
Fork Pocket Bottom Plate | 360x300 | CORTEN | |||
Fork Pocket Top Plate | 360x2350 | CORTEN | |||
Gooseneck parts | CORTEN | ||||
Other | Lashing Ring | SS41 | |||
Hexagon Set screws Nuts and Bolts | L=6 to 200 | CORTEN | |||
Sealed pop rivet Blind rivet | 4.8*16.5 | CORTEN | |||
Decals: Weight& Capacity, UIC, Container Type, Ower's Serious | CORTEN | ||||
Open Top Container: Header Hinge,Tarpaulin, Eyelet,TIR Cable, D-Ring | |||||
Flat Rack: Twistlocks | |||||
Packing & Shipment
We are sure that our package is standard exported packing, which is strong enough to protect your cargoes from any damage. "This
is Our Responsibility, ACE is Your Best Choice".
is Our Responsibility, ACE is Your Best Choice".
Our Advantages
FAQ
5.1. Are your container parts good quality?
Sure, all of our container are ABS, BV, GL, CCS certificate.
5.2 Can we order mixed parts from you?
Of course, you can.
5.3 Any surface treatment for your container parts?
With zinc rich primer coating or galvanised.
5.4 Can we order a container to load our parts from your company?
Sure, that will be good. Maybe it's very hard to loading and unloading for parts,
If use SOC container, it will be convenient for you.
5.5 Which port you can deliver container in China?
We have container yard in Shanghai, Tianjin, Qingdao, Dalian, LianYunGang,
Ningbo, Xiamen, Guangzhou, Shenzhen.
Sure, all of our container are ABS, BV, GL, CCS certificate.
5.2 Can we order mixed parts from you?
Of course, you can.
5.3 Any surface treatment for your container parts?
With zinc rich primer coating or galvanised.
5.4 Can we order a container to load our parts from your company?
Sure, that will be good. Maybe it's very hard to loading and unloading for parts,
If use SOC container, it will be convenient for you.
5.5 Which port you can deliver container in China?
We have container yard in Shanghai, Tianjin, Qingdao, Dalian, LianYunGang,
Ningbo, Xiamen, Guangzhou, Shenzhen.
