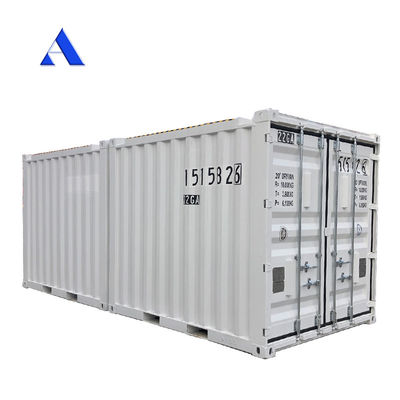

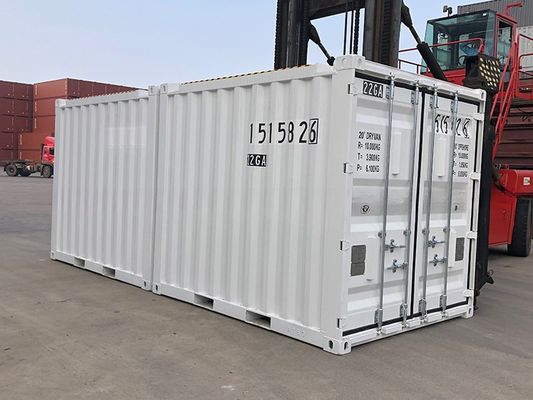

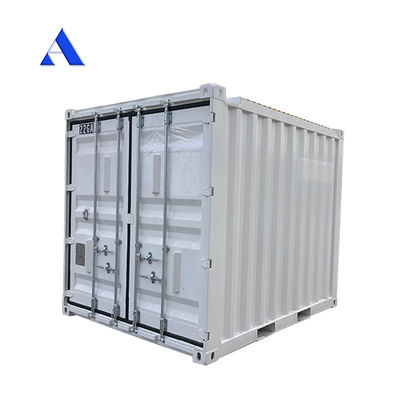

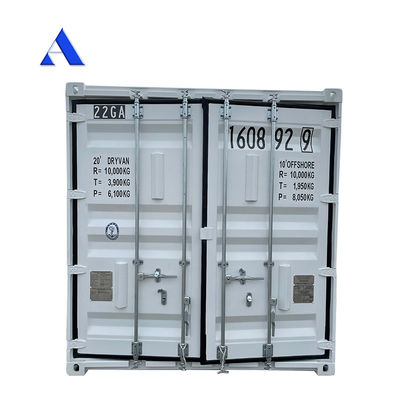

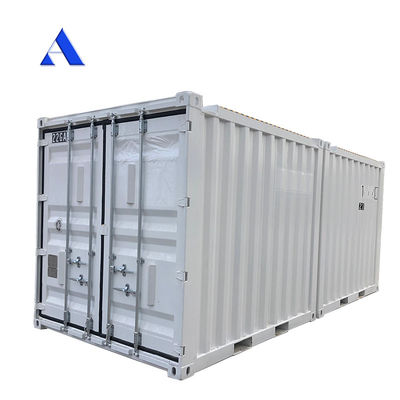

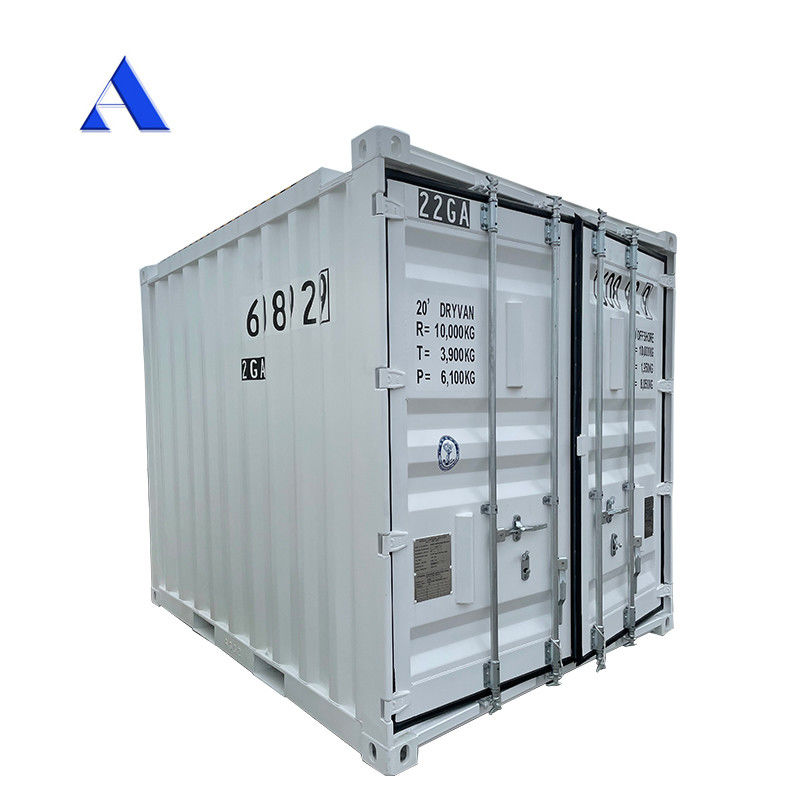

Steel Floor 10ft Offshore Mini Container for Oil Platform DNV 2.7-1 Certified
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | BV or GL or LR certified |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $5,800.00/units 2-3 units |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Offshore Container | Length (feet): | 10' |
|---|---|---|---|
| Capacity: | 15.9 CBM | External Dimensions(l X W X H)(mm): | 2991 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 2831 X 2352 X 2389 Mm | Color/logo: | Optional |
| Material: | Corten Steel | Floor: | Steel Floor |
| Application: | Transportation Storage | Keyword: | DNV 2.7-1 10 Feet Offshore Container |
Product Description
Hot Sale Products
Product Datasheet
Specifications | DNV 2.7-1 10ft Offshore Container | |||||||
External Dimensions | 2991 x 2438 x 2591mm | |||||||
Inside Cubic Capacity | 15.9 CBM | |||||||
Maximum Gross Weight | 10000 KG | |||||||
Tare Weight | 1950 KG | |||||||
Maximum Payload | 8050 KG | |||||||
Lifting Angle | 45 degree | |||||||
1. Approval by Main Classification Society: BV / LR 2. Complies With DNV 2.7-1 and ISO18055 Standard 3. Surface Treatment: High Anti-Corrosion Painting or Hot Deep Galvanized 4. Design Temperature: - 20 ℃ (Also provide - 40 ℃ Design) | ||||||||
Product Description
Quality Control & Certificate & Warranty
1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
2) General Arrangement Drawing.
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.
2) General Arrangement Drawing.
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.
DNV 2.7-1 Standard 10ft Offshore Container
Structure Material: JIS SPA-H/ GB Q345D,E36
Corner Casting: SCW480
Welding Technique: Automatic TIG welding ( Tungsten Inert Gas arc Welding ).
Corner Casting: SCW480
Welding Technique: Automatic TIG welding ( Tungsten Inert Gas arc Welding ).
Surface treatment: Painted or Galvanized
Special for transportation and storage of offshore freight.
Meeting DNV 2.7-1 & EN12079 standard.
Special for transportation and storage of offshore freight.
Meeting DNV 2.7-1 & EN12079 standard.
Classification Society: BV, LR, DNV certified
Design Temperature: -20°c
Design Temperature: -20°c
