Professional of ISO Marine 20ft 40ft Shipping Container Spare Parts and Accessories with Hard Wood Floor Material
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $2,399.00-4,199.00/sets |
| Packaging Details: | 12sets 20GP Container parts in one 20GP<br> 6sets 40HC Container parts in one 40HC |
| Delivery Time: | within 30 days |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Dry Container | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 33.2 | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 5899 X 2352 X 2393 Mm | Name: | Container Parts & Accessories |
| Brand: | ACE | Structure Material: | Corten Steel |
| Floor Material: | Hard Wood | Corner Casting: | SCW49 |
| Door Rubber: | EPDM | Full Set Of Container Parts: | 20ft 40ft GP Or HC |
| Application: | Shipping Container | Port: | Tianjin Shanghai Ningbo Qingdao Port |
| Origin: | China | Port: | Tianjin / Shanghai |
Product Description
Hot Sale Products
Product Description
20ft 40ft HC Marine Container Parts for Sale
We could supply all kinds of container spare parts, you could order complete set of 20ft or 40ft container parts, also could only order some mixed some parts separately.
1.container roof panel
2.container side panel
3.container top side rail
4.container front panel
5.container cross member
6.container door hinge
7.container door lock parts
8.container door gasket
9.container corner casting
10.container CSC plate
Container Parts List
Other Parts | DESCRIPTION | Dimensions(mm) | Material | ||
Door End | ISO Corner Fitting, 8pcs/set | 178x162x118 | SCW490 | ||
Door Hinge Set | Blade, Pin, Lug, Bush | ||||
Container Door Locking Device | |||||
Door Gaskets | 1143x2254 | EPDM | |||
Gasket Retainer | SUS304 | ||||
CSC plate | 0.8x100x200 | SUS304 | |||
Door Panel (3 CORR) | 2.0X943X1957 | CORTEN | |||
Door Vertical Member Edge SQ.Tube | 3.2x50x100x2260 | CORTEN | |||
Door Horizontal Member Edge, Channel | 3.0x50x150x1024 or 943 | CORTEN | |||
Door Sill | 4.5x158x150x2400 | CORTEN | |||
Door Header Lower | 4.0x112.5x113x137.5x2400 | CORTEN | |||
Rear Corner Post inner | 12x113x40x2353 | CORTEN | |||
Rear Corner Post outer | 6.0x70x39x230x2400 | CORTEN | |||
Front End | Front End Panel | 2.0x1024x2400 | CORTEN | ||
Front Corner Post | 6.0x209x225x2400 | CORTEN | |||
Front Bottom Rail | 4.0X115X154x2400 | CORTEN | |||
Top End Member SQ.Tube (Horizontal) | 3.0x60x60x2112 | CORTEN | |||
Roof | Container Roof Panel (5 CORR) | 2.0x1045x2356 | CORTEN | ||
Door Header Upper (Extension Plate) | 3.0x388x2400 | CORTEN | |||
Top End Rail (Extension Plate) | 3.0X397x2400 | CORTEN | |||
Side | Container Side Panel | 1.6x1116x2400 | CORTEN | ||
Top Side Rail, SQ. Tube | 3.0x60x60x5702 | CORTEN | |||
Ventilator Cover | 204x67x25 | ABS | |||
Base | Container Plywood Flooring, 19ply | 28x1160x2400 | Hardwood | ||

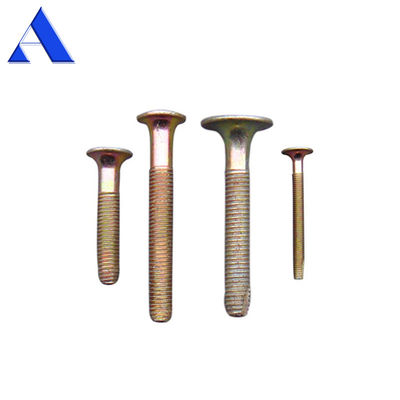

Floor screw | L=5 to 120 | CORTEN | |||
Bottom Side Rail | 4.5x50x162x30x5702 | CORTEN | |||
Cross Member Small | 4x45x122x45x2350 | CORTEN | |||
Cross Member Large | 4x45x122x75x2350 | CORTEN | |||
Fork Pocket Bottom Plate | 360x300 | CORTEN | |||
Fork Pocket Top Plate | 360x2350 | CORTEN | |||
Gooseneck parts | CORTEN | ||||
Lashing Ring | SS41 | ||||
Hexagon Set screws Nuts and Bolts | L=6 to 200 | CORTEN | |||
Sealed pop rivet Blind rivet | 4.8*16.5 | CORTEN | |||
Decals: Weight& Capacity, UIC, Container Type, Ower's Serious | CORTEN | ||||
Open Top Container: Header Hinge,Tarpaulin, Eyelet,TIR Cable, D-Ring | |||||
Flat Rack: Twistlocks | |||||
Our Advantages
Packing & Delivery
Container Spare Parts Packing and Loading:
All container spare parts are packed into pallet and pallet box.
Corner Casting: Exported Pallet. 100 pcs into one pallet, 20 pallet into one 20ft container.
Door Lock Parts: Steel Pallet, 200 sets into one pallet.
Plywood: 30 pcs into one pallet, 8 pallets into one 20ft container.
For other container steel structure parts, you could order them in mixture, usually 25 tons of parts loaded into one 20ft container.
