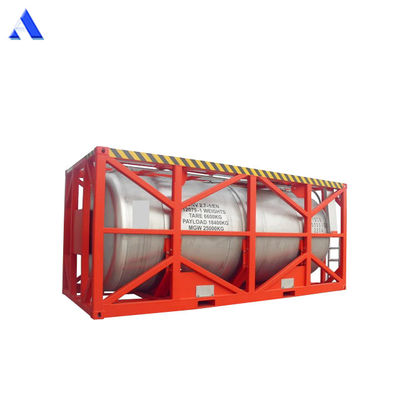

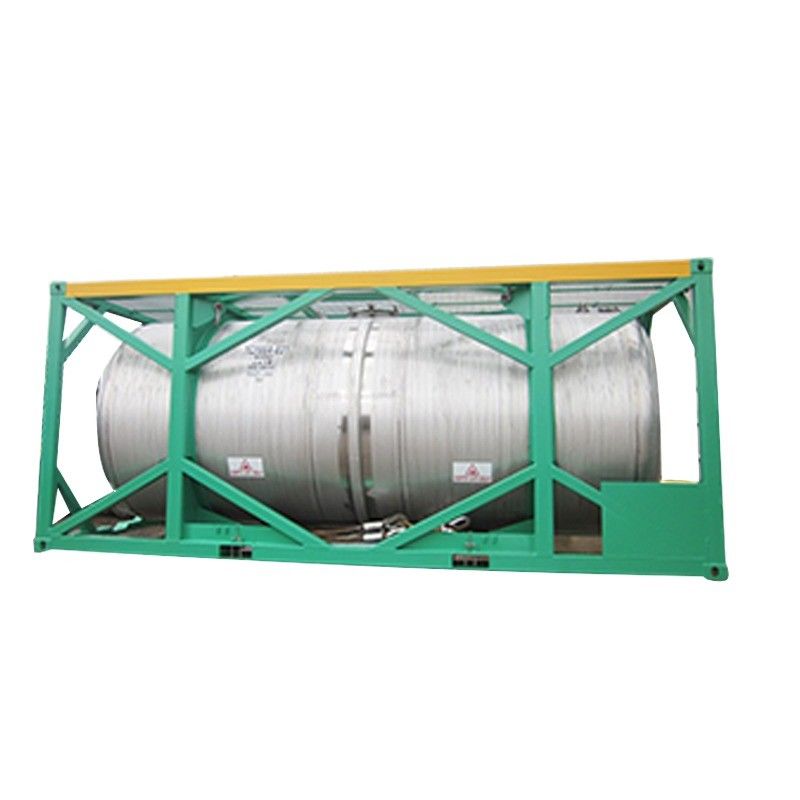

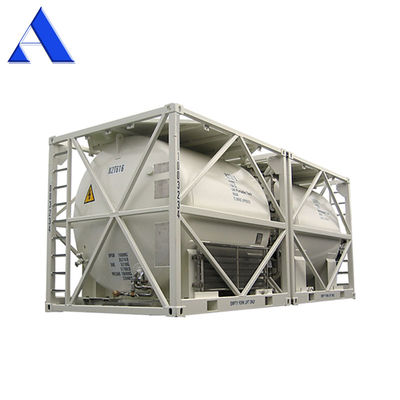

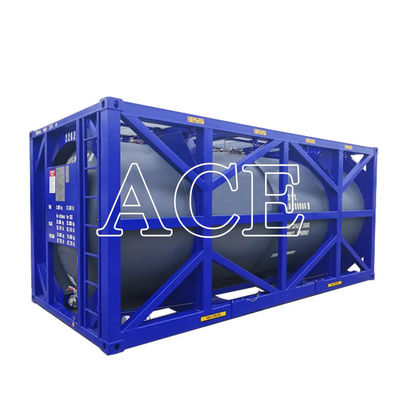

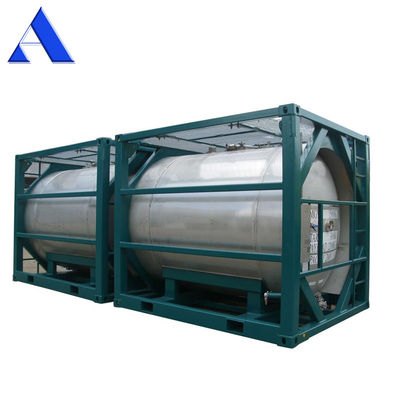

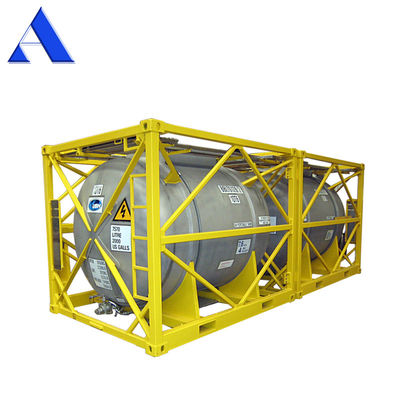

16000L DNV 2.7-1 Standard 20ft Frame UN T11 Stainless Steel Tote Offshore Tank Container for International Transport
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
| Certification: | DNV2.7-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $33,500.00-38,000.00/pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Offshore Tank | Length (feet): | 20' |
|---|---|---|---|
| Capacity: | 16000L | External Dimensions(l X W X H)(mm): | 6058 X 2438 X 2591 Mm |
| Internal Dimensions(l X W X H)(mm): | 16000L | Color: | Optional |
| Material: | Corten-A | Design Standard: | DNV2.7-1/ EN12079 / IMDG/ RID / ADR |
| Design Code: | ASME VIII Div.1 | Design Temperature: | - 20 Centigrade |
| Sling: | DNV2.7-1 Certified | Medium: | Chemcial, Helifuel |
Product Description
Hot Sale Products
Product Description
20ft Offshore Tank Container
DNV 2.7-1 Standard
DNV 2.7-1 Standard frame
ISO 10855 Standard
UN T11 Vessel
UN T11 Standard
Stainless Steel 316L Vessel
7600L UN T11 offshore tank container
4000L Offshore Tank Container
Container Lifting Sling
Offshore tank_Padeye:
Other Offshore Equipment:
Product Datasheet
Specifications: | ||||||
Dimensions (L x W x H) | External | 6.058 x 2.438 x 2.591 | M | |||
Max. Capacity (Nominal) | 20000 | L | ||||
Gallon(US) | ||||||
Max. Gross Mass | 8000 | KGS | ||||
Tare Mass (Nominal) | 1920 | KGS | ||||
Max. Payload | 6080 | KGS | ||||
Pressure | Design pressure | 0.267 | Mpa | |||
Test pressure | 0.4 | Mpa | ||||
Design Temperature | Frame | -20℃ | ||||
Tank | -40℃ | |||||
Stacking | in warehouse | 2 high | ||||
in transport | 1 high | |||||
Material | Frame | SPA-H,Q345D | ||||
Tank | 316L | |||||
Seal Gasket | PTFE outer encapsulating EPDM inner | |||||
Finish | Tank | Internal & External surface: Weld seam: acid cleaning and passivation | ||||
Frame | Painted or hot-dip zinc (according to customer requirements) | |||||
SPECIAL FEATURES: | ||||||
1. Approval by Main Classification Society: BV / DNV / LR | ||||||
2. Complies With DNV2.7-1:2006 and EN12079:2006 Standard | ||||||
3. Discharge valve: Have three serially fitted and mutually independent shut-off devices; Drip cap and chain. | ||||||
4. Air vent valve: 3/4" ball valve; Relief valve: 2 1/2"; Dipstick Valve:1 1/2" | ||||||
5. Document box: PVC; With drip cap and chain; Water tight. Manhole: 460mm | ||||||
6. Four points lifting with 45° Max to the vertical through 4 lugs; 4-way fork pockets (Internal dimensions 300mm x 120mm) | ||||||
Packing & Shipment
2.1 SOC, 2700L offshore tank have fork pocket for easy loading, has no any package.
2.2 Offshore tank loaded into 40ft HC Container.
2.2 Offshore tank loaded into 40ft HC Container.
Our Services
With development of container line, we are also further extending and improving our service, please check as follows:
* Buyer’s Logo and Color.
* 45 days' Free stock in our CY.
* Clearing Customs for the container for free.
* Supply "Storage Service". We have storage in Tianjin, Shanghai, Ningbo, Guangzhou port.
* Arrange “One Way” service to some main ports.
* OEM Tank is available.
* 45 days' Free stock in our CY.
* Clearing Customs for the container for free.
* Supply "Storage Service". We have storage in Tianjin, Shanghai, Ningbo, Guangzhou port.
* Arrange “One Way” service to some main ports.
* OEM Tank is available.
* Accept third party inspection and testing.
* Supply all kinds of offshore equipments.
* Supply all kinds of offshore equipments.
Our Advantages
FAQ & Contacts
1. Are your offshore tanks compliant with the DNV 2.7-1 and EN 12079 standards?
A: Yes, all of our offshore tanks are manufactured in full compliance with the DNV 2.7-1 and EN 12079 standards, ensuring they meet the highest industry requirements for offshore applications.
4. Can you deliver to our designated port?
A: Yes, we have successfully shipped offshore containers to over 45 countries worldwide and can deliver to your specified port efficiently and reliably.
5. Do you supply DNV-certified slings?
A: Yes, we supply DNV-certified slings. Our sling suppliers produce them in accordance with our specific requirements, ensuring compliance with offshore lifting and safety standards.
For any further inquiries or custom requirements, feel free to contact us!
A: Yes, all of our offshore tanks are manufactured in full compliance with the DNV 2.7-1 and EN 12079 standards, ensuring they meet the highest industry requirements for offshore applications.
2. Do your offshore tanks meet other international standards?
A: Yes, in addition to DNV 2.7-1 and EN 12079, our 10ft offshore tanks also comply with IMDG (International Maritime Dangerous Goods Code) and ADR/RID (European Agreement Concerning the International Carriage of Dangerous Goods by Road/Rail), ensuring safe transport and handling of hazardous materials.
A: Yes, in addition to DNV 2.7-1 and EN 12079, our 10ft offshore tanks also comply with IMDG (International Maritime Dangerous Goods Code) and ADR/RID (European Agreement Concerning the International Carriage of Dangerous Goods by Road/Rail), ensuring safe transport and handling of hazardous materials.
3. Do you provide certifications for your offshore tanks?
A: Yes, we provide DNV 2.7-1 and EN 12079 certifications, issued by renowned classification societies such as BV, DNV, and LR, confirming our tanks' compliance with international offshore and transportation standards.
A: Yes, we provide DNV 2.7-1 and EN 12079 certifications, issued by renowned classification societies such as BV, DNV, and LR, confirming our tanks' compliance with international offshore and transportation standards.
4. Can you deliver to our designated port?
A: Yes, we have successfully shipped offshore containers to over 45 countries worldwide and can deliver to your specified port efficiently and reliably.
5. Do you supply DNV-certified slings?
A: Yes, we supply DNV-certified slings. Our sling suppliers produce them in accordance with our specific requirements, ensuring compliance with offshore lifting and safety standards.
For any further inquiries or custom requirements, feel free to contact us!
