45C Lifting Angle 3CBM DNV 2.7-1 Steel Dry Container Offshore Personal Transfer Basket with CSC and BV Certificates
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $3,800.00/pieces 1-1 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Offshore Container | Length (feet): | 3.9ft |
|---|---|---|---|
| Capacity: | 3CBM | External Dimensions(l X W X H)(mm): | 1510 X 1190 X 2268 MM |
| Internal Dimensions(l X W X H)(mm): | 1350 X 1030 X 2200 MM | Material: | SPA-H (Corten-A) |
| Function: | Gas Bottle | Maximum Gross Weight: | 2700KGS |
| Tare Weight: | 700KGS | Maximum Payload: | 2000KGS |
| Lifting Angle: | 45℃ | Approval: | BV / LR / DNV CSC |
| Sling: | Meeting DNV2.7-1 Standard | Design Temperature: | - 20 ℃ |
Product Description

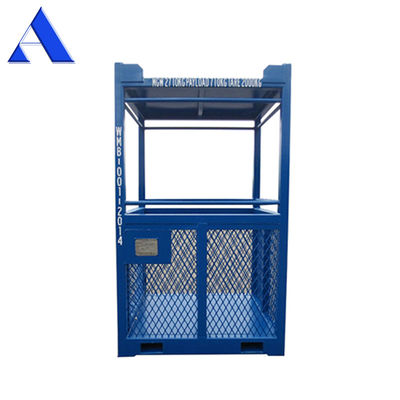

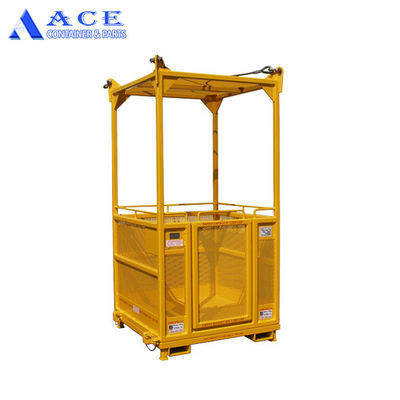

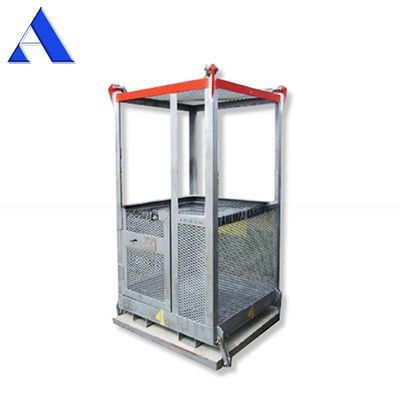

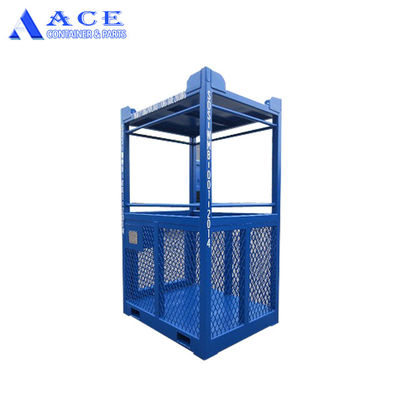

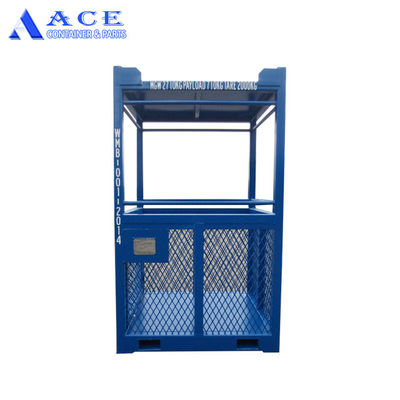

DNV Offshore Personnel Basket
The DNV offshore personnel transfer basket is designed for transportation of up to two individuals off a dock, platform or vessel by crane. So it's also should be meeting DNV2.7-1 standard.
It can be galvanized or painting as per customer requirement.
The main application area is Offshore Oil, Gas Rigs and Platforms.
Specifications_DNV Offshore Personnel Transfer Basket | ||||||
External Size | 1510 x 1190 x 2268 | MM | ||||
Internal Size | 1350 x 1030 x 2200 | MM | ||||
Inside Cubic Capacity | 3.00 | CBM | ||||
Maximum Gross Weight | 2710 | KGS | ||||
Tare Weight: | 710 | KGS | ||||
Miximum Payload | 2000 | KGS | ||||
Lifting Angle | 45 | Degree | ||||
Special Features: | ||||||
1. Approval by Main Classification Society: BV / DNV / LR | ||||||
2. Complies With DNV2.7-1:2006 and EN12079:2006 Standard | ||||||
3. Surface Treatment: High Anti-Corrosion Painting / Hot Dip Galvanized | ||||||
4. Design Temperature: - 20 ℃ | ||||||
1. Are your dnv offshore personnel transfer baskets brand new?
Yes, we only do brand new offshore container.
2. Can choose the color and logo?
Sure, we can do it as per your requirement.
3. Are there any certification and testing report for offshore tool box?
Yes, there will be DNV2.7-1 certification issued by LR/BV, also have other testing report and certification. For example, NDT testing report, Size Testing, Loading inspection, Mill Certification, Welder Certification etc.
4. How to arrange the shipping?
For offshore tool box, which is small size, that can be loaded into the container directly.
5. How about the production date?
It's about 45 days after getting your deposit.
