Product Details:

Place of Origin: Tianjin, China
Brand Name: ACE

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: $19,800.00/pieces 2-3 pieces
Delivery Time: within 30 days
Get Best Price Contact Now

Detail Information
Type: Offshore Container Length (feet): 76ft
Capacity: 18.81BM External Dimensions(l X W X H)(mm): 23300 X 1200 X 1100 Mm
Internal Dimensions(l X W X H)(mm): 23080 X 1000 X 791 Mm Name: Offshore Basket
Material: SPA-H (Corten-A) Function: Gas Bottle
Maximum Gross Weight: 18900KGS Tare Weight: 6900KGS
Maximum Payload: 12000KGS Lifting Angle: 30℃
Approval: BV / LR / DNV Sling: Meeting DNV2.7-1 Standard
Design Temperature: - 20 ℃

Product Description

Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 0
Related Products
Product Description
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 1
We will provide full set of Offshore Container Documents
1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
2) General Arrangement Drawing
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.

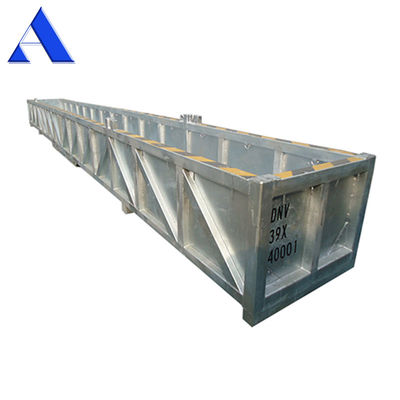

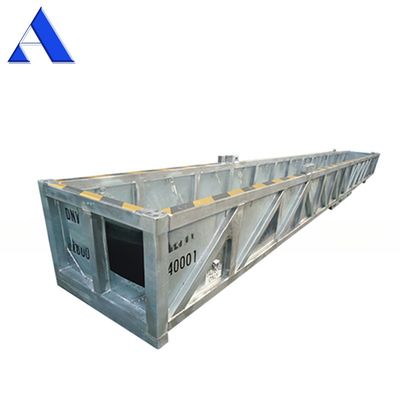

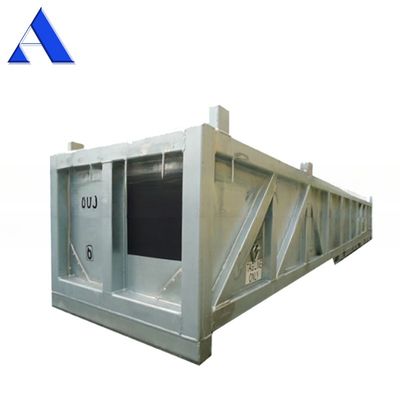

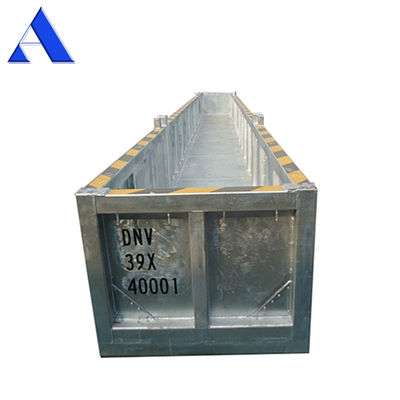

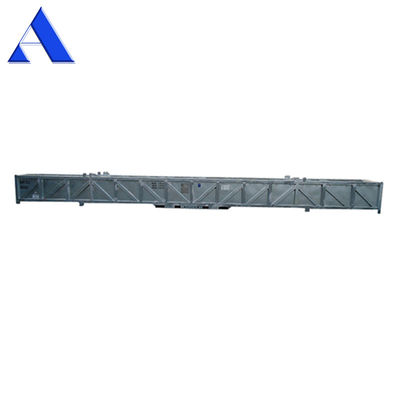

Introduction_Offshore Baskets


The offshore baskets are designed to carry cylinder on offshore platform using. So it's also conform to DNV2.7-1 standard.


It can be galvanized or Painting as per customer requirement.


The main application area is Offshore Oil, Gas Rigs and Platforms.


Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 2
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 3
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 4
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 5
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 6
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 7
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 8
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 9
Product Datasheet
Specifications_Offshore Baskets
Dimensions
27ft
33ft
39ft
46ft
76ft
FT
External Size
Length
8300
10300
11900
14300
23300
MM
Width
1200
MM
Height
1100
MM
Inner
Length
8100
10100
11700
14100
23080
MM
Width
1000
MM
Height
791
MM
Inside Cubic Capacity
6.41
7.99
9.25
11.86
18.81
CBM
Maximum Gross Weight
12250
12600
13000
15930
18900
KGS
Tare Weight
2250
2600
3000
3930
6900
KGS
Max. Payload
10000
10000
10000
12000
12000
KGS
Lifting Angle
45°
45°
45°
30°
30°
°
SPECIAL FEATURES:
1. Approval by Main Classification Society: BV / DNV / LR
2. Complies With DNV2.7-1:2006 and EN12079:2006 Standard
3. Surface Treatment: High Anti-Corrosion Painting or Hot Deep Galvanized
4. Design Temperature: - 20 ℃ (Also provide - 40 ℃ Design)
About Tianjin ACE
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 10

Our Main Business Line: All kinds of Dry Cargo Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipments.


Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.

Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 11
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 12
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 13
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 14
Certification
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 15
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 16
Customer visit
Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 17

Mauritius's customer in our office

Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 18

Japanese customers visit our factory, ordered 10 units 20ft reefer container,15 units reefer container gensets.

Maximum Payload 12000KGS 39ft to 76ft Galvanized LR Certified DNV 2.7-1 Standard Open Top DNV Offshore Cargo Basket 19

American customer visit our company to sign a long-term supply contract

FAQ

1. Are your offshore baskets rack brand new?
Yes, we only do brand new offshore container

2 .Can choose the color and logo?
Sure, we can do it as per your requirement.

3. Are there any certification and testing report for offshore baskets?
Yes, there will be DNV2.7-1 certification issued by LR/BV, also have other testing report and certification. For example, NDT testing report, Size Tesing, Loading inspection, Mill Certification, Welder Certification etc.

4. How to arrange the shipping?
For offshore tool box, which is small size, that can be loaded into container directly.

5. How about the production date?
It's about 45 days after getting your deposit.
