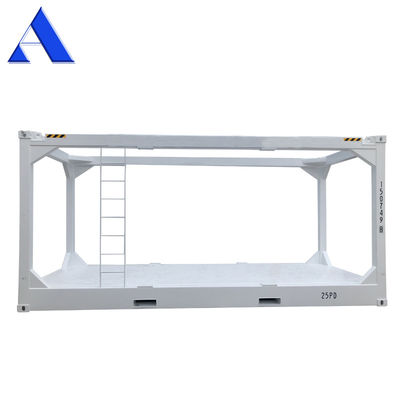

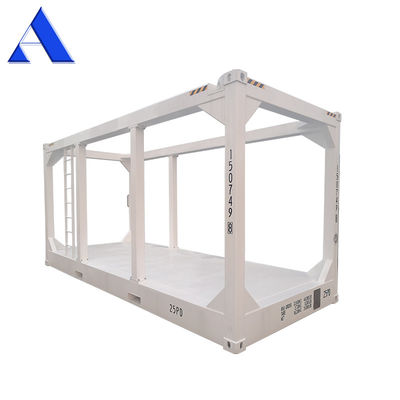

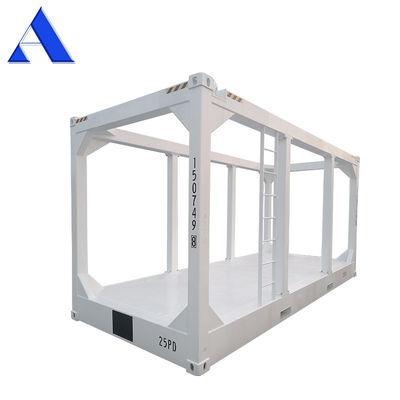

13ft 4meter DNV 2.7-1 Standard Galvernized Offshore Container Lifting Frame Skid 45 degree Sling Angle
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $5,600.00/pieces 2-4 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Offshore Container | Length (feet): | 13ft |
|---|---|---|---|
| Capacity: | 7 Cbm | External Dimensions(l X W X H)(mm): | 3973 X 1259 X 1930 Mm |
| Internal Dimensions(l X W X H)(mm): | 3777 X 1135 X 1643 Mm | Name: | Offshore Frame |
| Color: | Choose | Material: | Corten-A |
| Age: | Brand New | CSC Certified: | Yes |
| Sling: | DNV Certified | Production Standard: | DNV2.7-1 And EN12079 |
| Approval: | LR BV DNV Certificate | Approval Area: | Offshore Oil And Gas Platform |
| Sling Angle: | 45 Degree | ||
Product Description
Hot Sale Products
Product Description
We will provide full set of Offshore Container Documents
1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
2) General Arrangement Drawing
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.

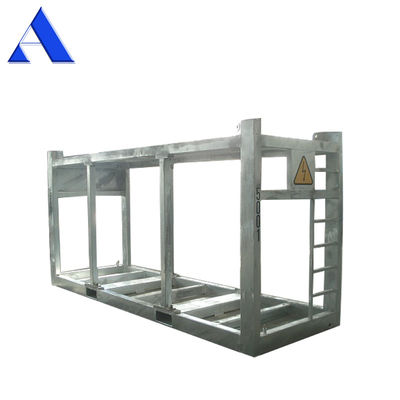

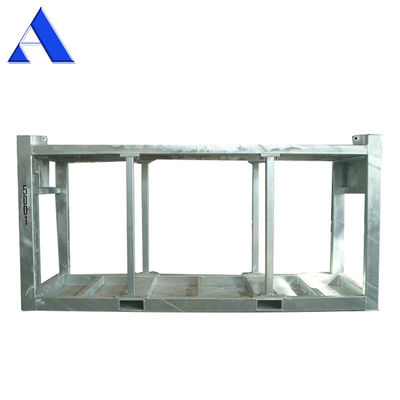

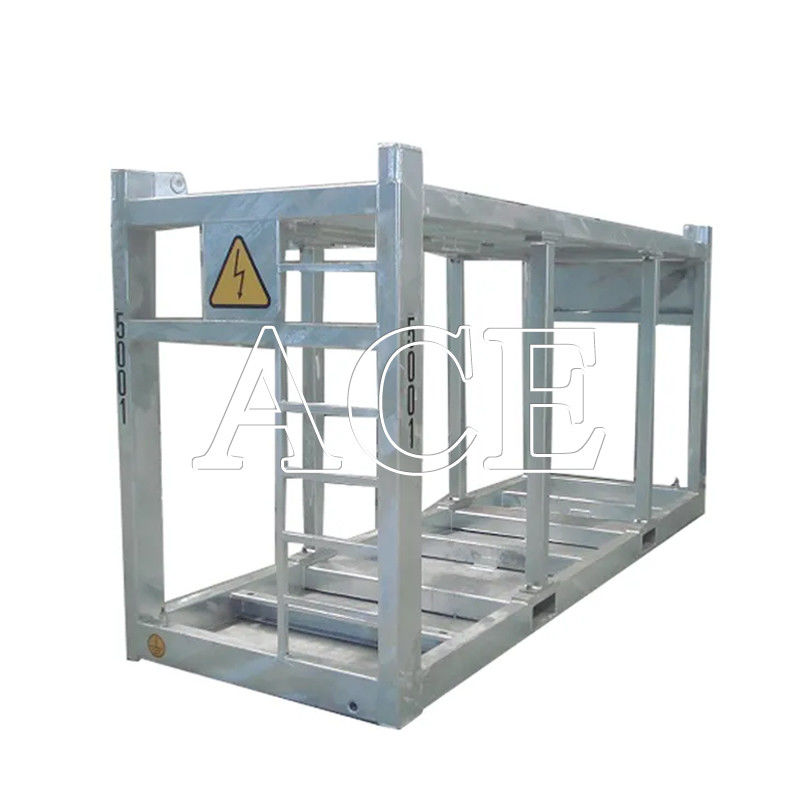

DNV2.7-1 Mini Engine Frame Container
Main Strucure Material: JIS SPA-H/ GB Q345D,E36
Welding Technique: Automatic TIG welding ( Tungsten Inert Gas arc Welding ).
Surface treatment: Painted or Galvanized
Special for transportation and storage of offshore freight.
Meeting DNV 2.7-1 & EN12079 standard.
Classification Society: BV, LR, DNV certified
Design Temperature: -20°c
Welding Technique: Automatic TIG welding ( Tungsten Inert Gas arc Welding ).
Surface treatment: Painted or Galvanized
Special for transportation and storage of offshore freight.
Meeting DNV 2.7-1 & EN12079 standard.
Classification Society: BV, LR, DNV certified
Design Temperature: -20°c
Top: Removable roof
20ft Offshore Frame
Product Spefications
Type | Mini Engine Offshore Frame | |||
External Size | 3.973 x 1.259 x 1.930 | M | ||
Internal Size | 3.777 x 1.135 x 1.643 | M | ||
Inside Cubic Capacity | 7.00 | CBM | ||
Maximum Gross Weight | 6800 | KGS | ||
Tare Weight | 1300 | KGS | ||
Maximum Payload | 5500 | KGS | ||
Shackles | 6.5 | TON | ||
Lifting Angle | 45 | degree | ||
Design Temperature | -20℃ | |||
NOTE: Other size can be customized as your requirement. | ||||
Certifications
We will provide DNV 2.7-1 Certficiate and full set as built documents.
Our Advantages
FAQ
1. Are your dnv engine offshore frame container brand new?
Yes, we only do brand new offshore container
2 .Can we customize dnv offshore frame as per our requirement?
Sure, we can do it as per your requirement.
3. Are there any certification and testing report for offshore frame?
Yes, there will be DNV2.7-1 certification issued by LR/BV, also have other testing report and certification. For example, NDT testing report, Size Tesing, Loading inspection, Mill Certification, Welder Certification etc.
4. How to arrange the shipping?
For offshore frame, which will be shipped as SOC.
5. How about the production date?
It's about 55 days after getting your deposit.
Yes, we only do brand new offshore container
2 .Can we customize dnv offshore frame as per our requirement?
Sure, we can do it as per your requirement.
3. Are there any certification and testing report for offshore frame?
Yes, there will be DNV2.7-1 certification issued by LR/BV, also have other testing report and certification. For example, NDT testing report, Size Tesing, Loading inspection, Mill Certification, Welder Certification etc.
4. How to arrange the shipping?
For offshore frame, which will be shipped as SOC.
5. How about the production date?
It's about 55 days after getting your deposit.
