45 m3 ISO UN T75 Cryogenic 40ft Tank Container for LNG Liquid Oxygen Carbon Dioxide LIN LOX LAR BV CSC Certified 18Bar
Product Details:
| Place of Origin: | Tianjin, China |
| Brand Name: | ACE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | $78,000.00/pieces 1-1 pieces |
| Delivery Time: | within 30 days |
|
Detail Information |
|||
| Type: | Tank Container | Length (feet): | 40' |
|---|---|---|---|
| Capacity: | 45700CBM | External Dimensions(l X W X H)(mm): | 12192 X 2438 X 2591MM |
| Internal Dimensions(l X W X H)(mm): | 45 M3 | Frame Material: | Corten Steel |
| Tank Material: | SA612N | Design Temperature: | -40 To +55 Centigrade |
| Application: | BV ,LR, CCS | Working Pressure: | 18Bar |
| Tare Mass: | 6360KGS | Max. Gross Mass: | 36000KGS |
| Pressure(Working/Test)r: | 18/23.45Bar | Stacking: | Each Container Is Approved For 9 High Stacking. |
Product Description

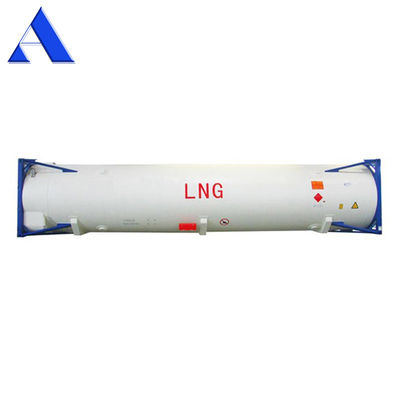

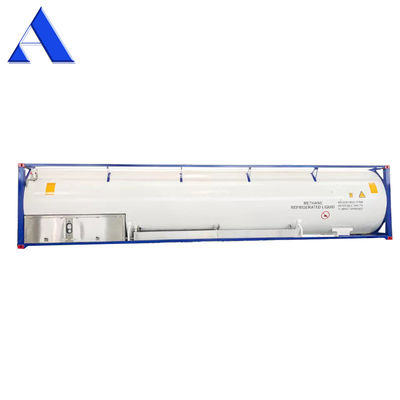

ISO UN T75 Cryogenic 40ft Tank Container
Fast and Convenient for Loading and unloading, washing. Door to door by land transportation, railway, sea transportation.

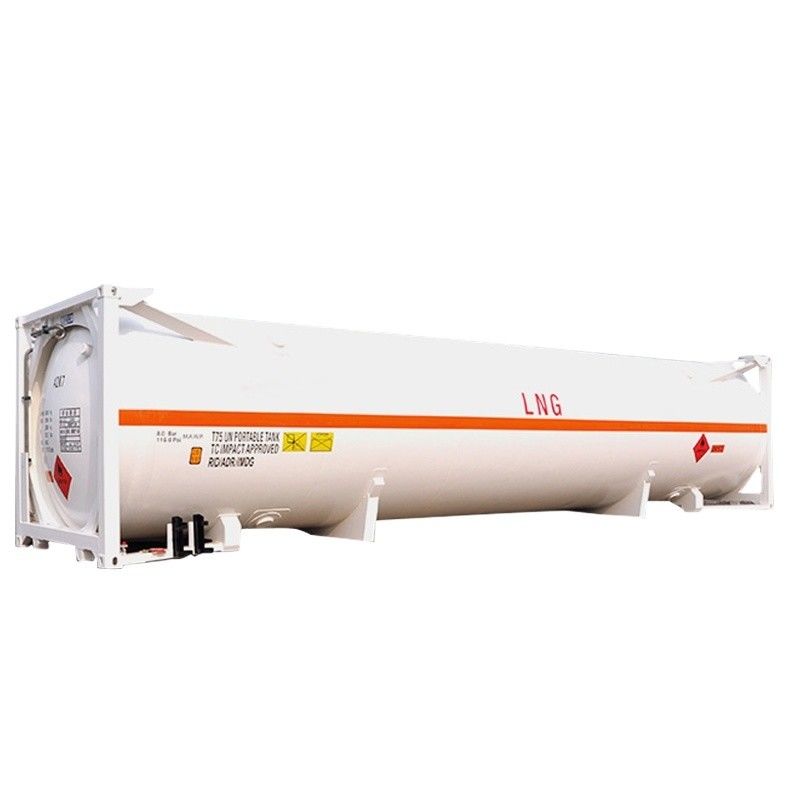

UN T75 Cryogenic 40ft ISO LNG Tank Container
LNG tank containers (hereinafter referred to as "LNG tanks") can be transported by road, railway, water and other ways due to their mobility and flexibility, thus becoming the main means of transportation for LNG.
The main structural type LNG tank of LNG tank is composed of tank, operation box and frame. The tank and frame form the tank box through a short half cylinder, strip support, and special steel pipe. The one end of the tank is equipped with the operating box, which controls the valve and the safety device, and USES the centralized layout to facilitate the loading and unloading of the medium.
Specifications of 40ft LNG Tank Container: | ||||||
Frame Dimensions (L x W x H) | 12192 x 2438 x 2591 mm | |||||
Nominal Capacity | 45700 litre | |||||
Maximum Gross Mass | 36000 kgs | |||||
Tare Mass | 11700kgs | |||||
Design Temperature (Tank) | -196 °C | |||||
Working | 8 bar | |||||
Test | 11.70 bar | |||||
Tank (Shell & Ends) | SA612N/WNr 1.4402/1.4404 | |||||
Frame | SPA-H,Q345D or equivalent | |||||
Insulation | High Vacuum Multi-layer Insulation. Aluminum Foil | High Vacuum Multi-layer Insulation | ||||
Brand: Herose or Chinese brand Quantity: Two Set Pressure: +8.0 bar (+116 psig) | ||||||
Liquid Level Gauge | Grade: Grade 2.5 Quantity: One Range of measure: 0~2.0m H2O | |||||
Accuracy grade: Grade 1.6 Quantity: One Range of measure: 0～1.6MPa With shut-off valve to cut off the sources of stress when maintenance or inspection | ||||||
Data Plates | One set of stainless steel data plates | |||||
Design Code | ASME VIII Div. 2 with ASME U2-Stamp | |||||
Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT | ||||||
ACE Container is a professional Container & Parts supplier in China, which has over 10 years experience in this line, 6 years Gloden Member in Alibaba, Trade Assurance Serive in Alibaba.
Also ACE Container has exported products to over 55 countries.
Our Main Business Line: All kinds of Dry Cargo Container, Reefer Container, Off shore Container, Dry Container Parts and Container Lashing Equipments.
Our Main Market: USA, Canada, Southeast Asia, Australia, New Zealand, Middle East, Middle and West Europe.
Q:. Are your 40ft LNG Tank Container is brand new?
Yes, our all containers are brand new.
Q: Can you provide the drawing for confirmation?
Sure, we'll provide the drawing after order confirmed before production.
Q: Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L.
And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
Q: Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
Q: Does your 40ft lng iso tank container meet with international requirement?
All of our iso tank container will be approval by BV //LR / CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)\
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11
